PUSZKA PRZYRZĄDOWA KPR 68-70 HA
| Information | Value |
|---|---|
| Supplier | KOPOS Elektro Pl Sp. z o.o. |
| Symbol | KPR 68-70_KA |
| GTIN(EAN) | 8595568936240 |
| Price unit | piece |
| Catalog price | 5,03 zł (4,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

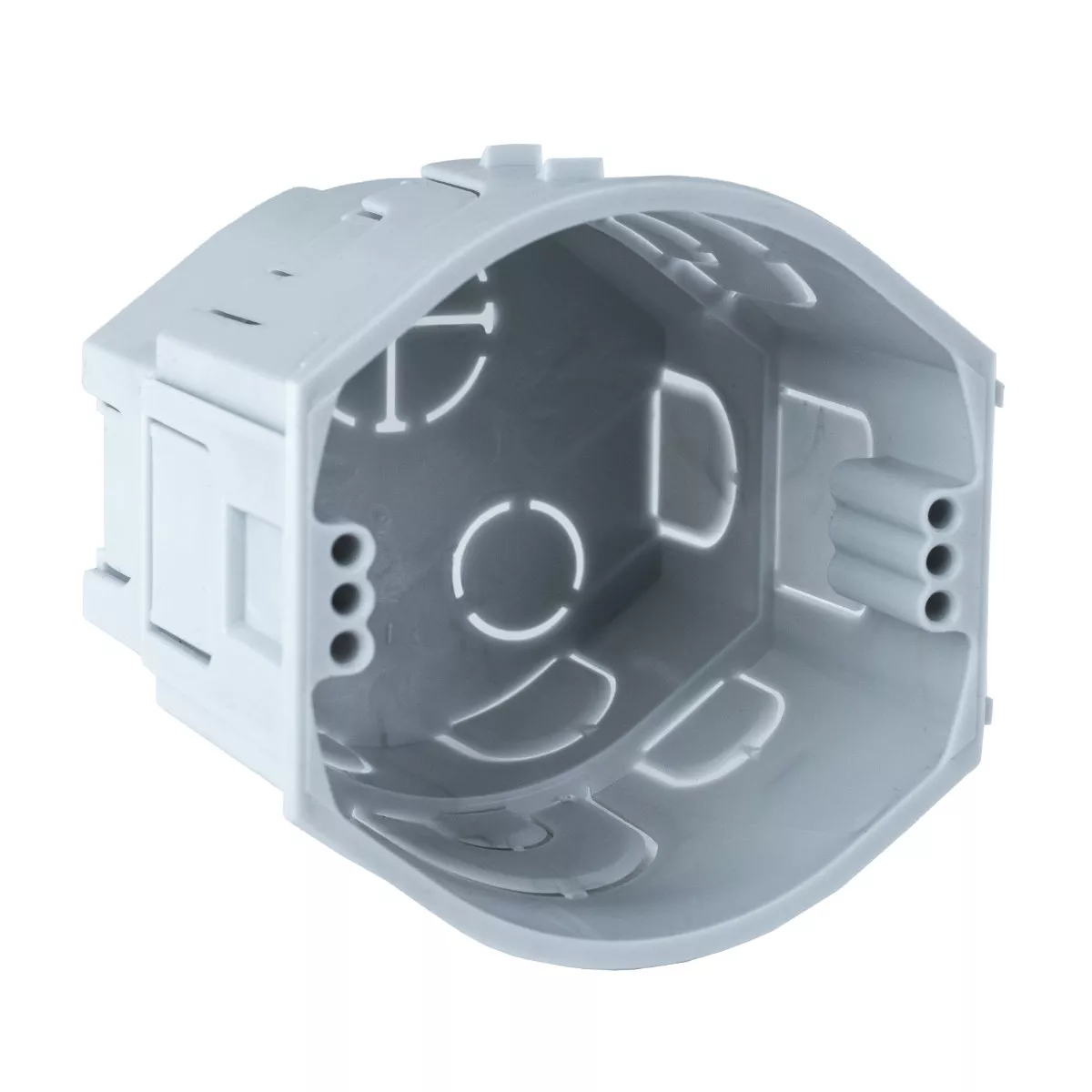

KPR 68-70 - UNIWERSALNA PUSZKA GŁĘBOKA, konfiguracja KA, kolor szary, opakowanie 66 szt. w kartonie - możliwość łączenia w ciągłym rzędzie o rozstawie 71 mm, umożliwia podłączenie pod urządzenie lub montaż urządzenia o dużej głębokości montażowej, puszki można łączyć z puszkami KPR 68/D, KP 68/D, KU 68-45
Additional features:
| Information | Value |
|---|---|
| Net weight: | 40 g |
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Facing brickwork |
| Shape: | Round |
| Construction type: | Device connection box (round/square) |
| Model: | Single |
| Equipped with: | None |

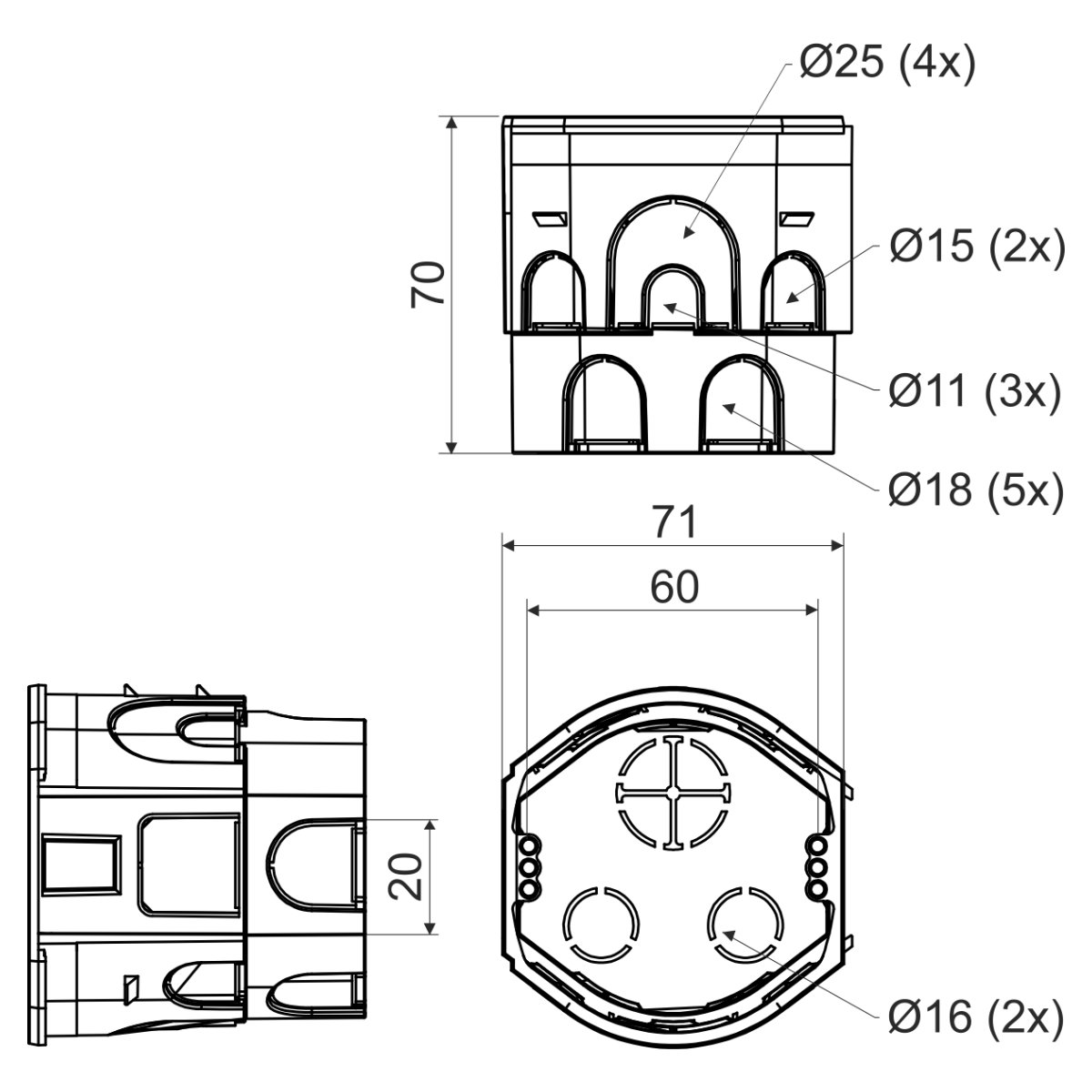

| Diameter: | 71 mm |
| Depth: | 70 - 70 mm |
| Inner depth: | 68 mm |
| For number of electric fittings: | 1 |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20/25 mm |
| Suitable for cable diameter: | 6 - 25 mm |
| Pipe locking: | no |
| Pipe locking optional: | no |
| Inlet from the rear: | yes |
| Number of inlets: | 13 |
| Material: | Plastic |
| Halogen free: | no |
| Colour: | Grey |
| Degree of protection (IP): | IP30 |
| Circuit integrity: | None |
| With screening: | no |
| Air tight: | no |
| Max. conductor cross section: | 4 mm² |
| Luminaire hook mounting: | no |
