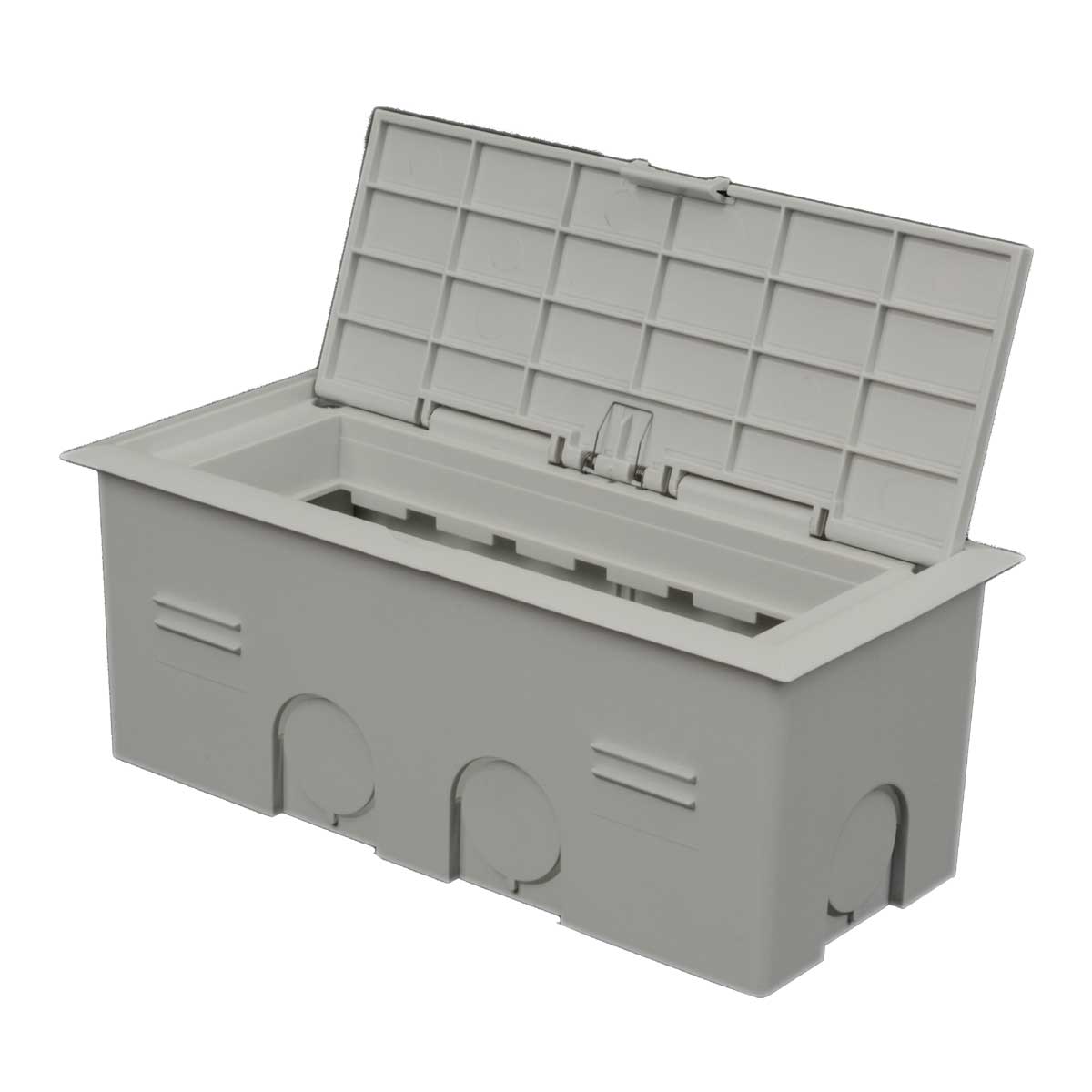

KOPOBOX MINI B HB (POD TYNK, DO PODŁÓG BETONOWYCH)
Information | Value |
---|---|
Supplier | KOPOS Elektro Pl Sp. z o.o. |
Symbol | KOPOBOX MINI B_HB |
GTIN(EAN) | 8595568920065 |
Price unit | piece |
Catalog price | 108,44 zł (88,16 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka instalacyjna bezhalogenowa do betonu, biała, do montażu urządzeń modułowych, dla maks. 3 modułów 45x45 mm. 6 modułów 45x22,5 mm
Additional features:
Information | Value |
---|---|
Net weight: | 240 g |
ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
Mounting method: | Facing brickwork |
Shape: | Rectangular |
Construction type: | Device connection box (round/square) |
Model: | Other |
Equipped with: | None |
Length: | 175 mm |
Width: | 80 mm |
Depth: | 68 - 68 mm |
For number of electric fittings: | 3 |
With screws: | yes |
Housing feed-through by break-out opening: | yes |
Housing feed-through by seal membrane: | no |
Housing feed-through by nozzle: | no |
Housing feed-through by step membrane: | no |
Suitable for cable diameter: | 7 - 20 mm |
Pipe locking: | yes |
Pipe locking optional: | no |
Inlet from the rear: | yes |
Number of inlets: | 8 |
Material: | Plastic |
Halogen free: | yes |
Colour: | White |
Degree of protection (IP): | IP20 |
Sealable: | no |
With screening: | no |
Air tight: | no |
Max. conductor cross section: | 4 mm² |
