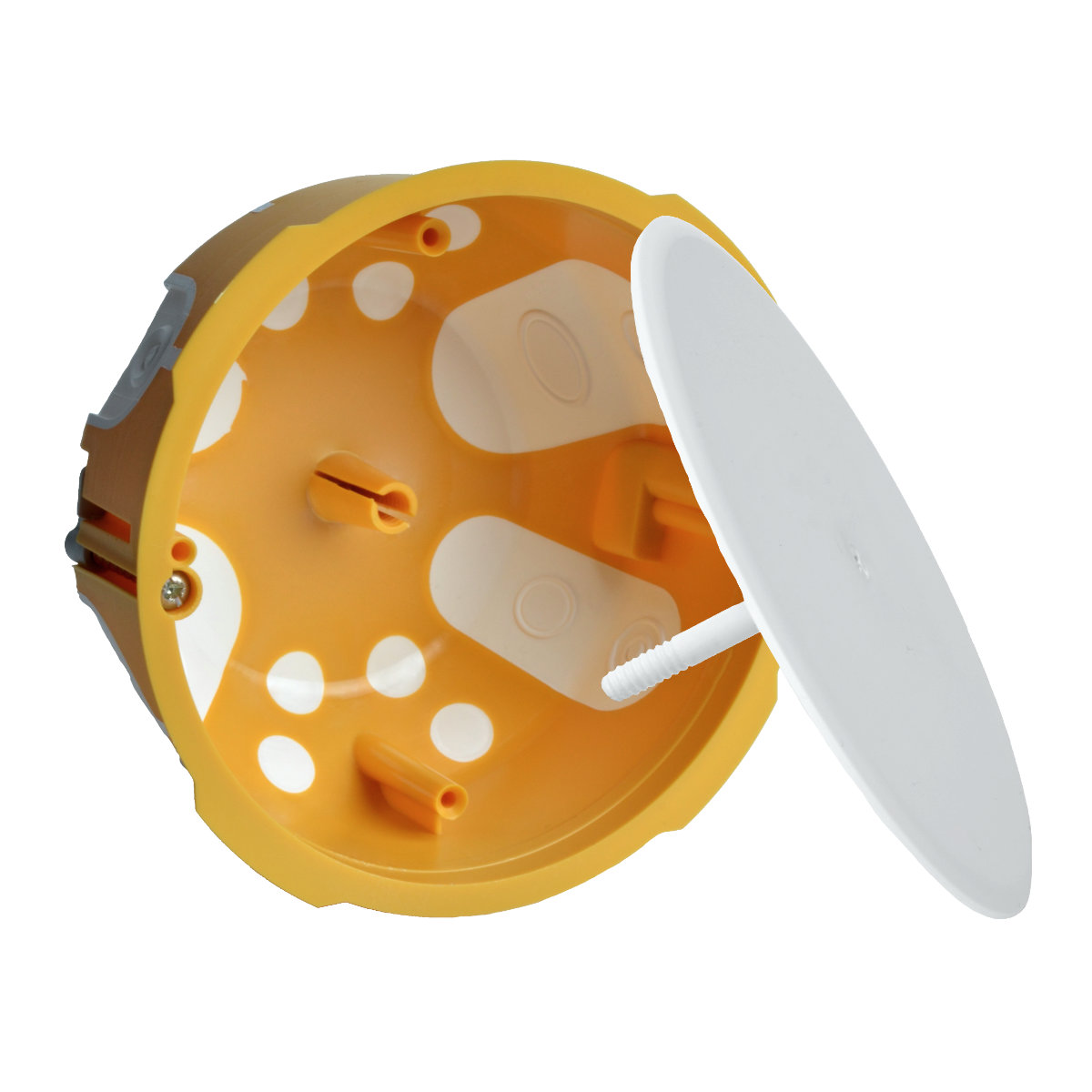

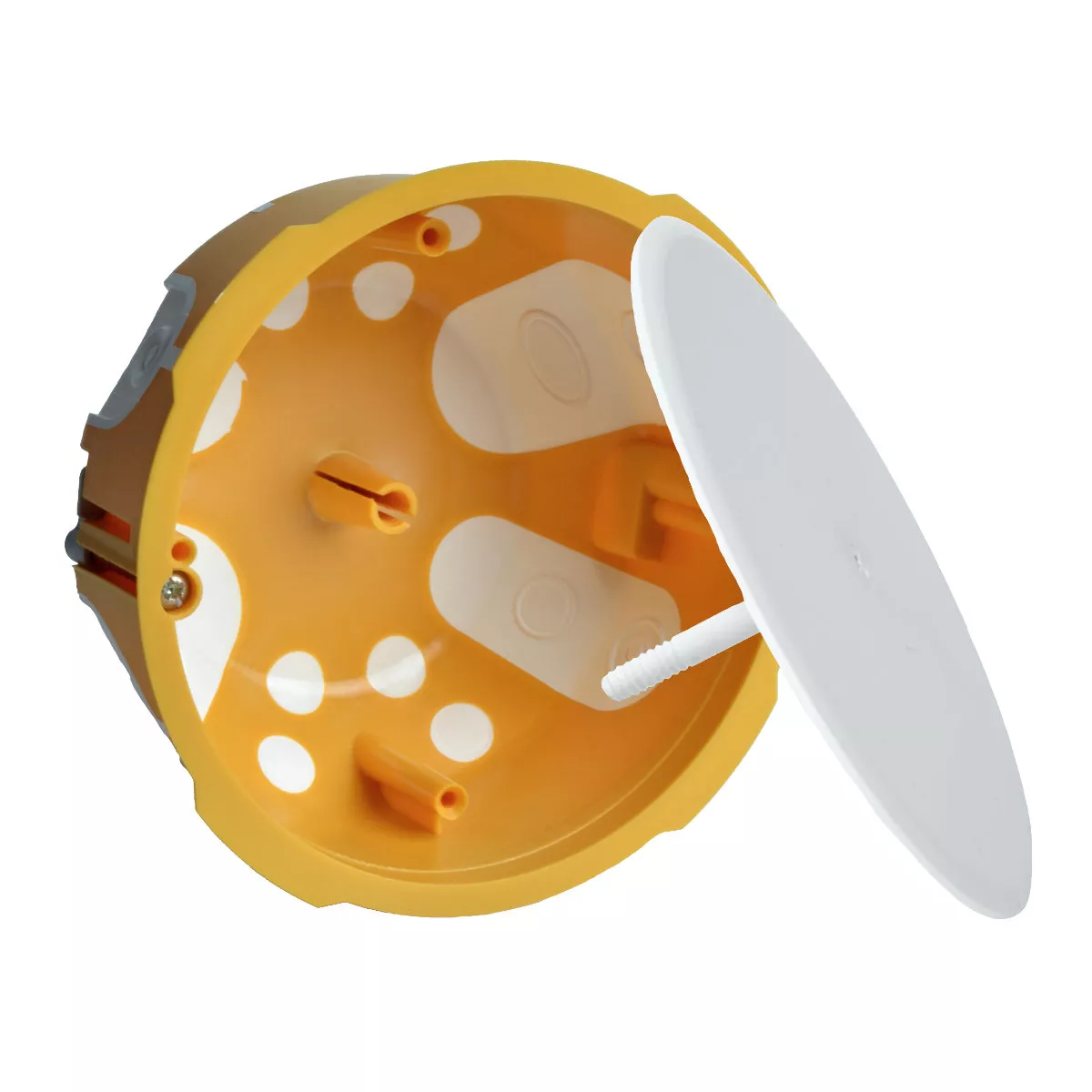

PUSZKA ODGAŁĘŹNA Z WIECZKIEM KO 97/LD NA
| Information | Value |
|---|---|
| Supplier | KOPOS Elektro Pl Sp. z o.o. |
| Symbol | KO 97/LD_NA |
| GTIN(EAN) | 8595568932594 |
| Price unit | piece |
| Catalog price | 27,95 zł (22,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
KO 97/LD - Skrzynka rozgałęźna do płyt gipsowo-kartonowych, konfiguracja NA, kolor ochry, opakowanie - 80 sztuk - wystarczająco dużo miejsca dla bardziej rozbudowanych instalacji, otwory wlotowe wykonane z elastycznego materiału, szczelność zapewniona nawet przy włożonym kablu lub rurze, nadaje się do domów niskoenergetycznych lub pasywnych, wkręty do przyrządów są wyposażone w gwint dwugwintowy ułatwiający montaż
Additional features:
| Information | Value |
|---|---|
| Net weight: | 220 g |
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Hollow wall |
| Shape: | Round |
| Construction type: | Device connection box (round/square) |
| Model: | Single |
| Equipped with: | None |

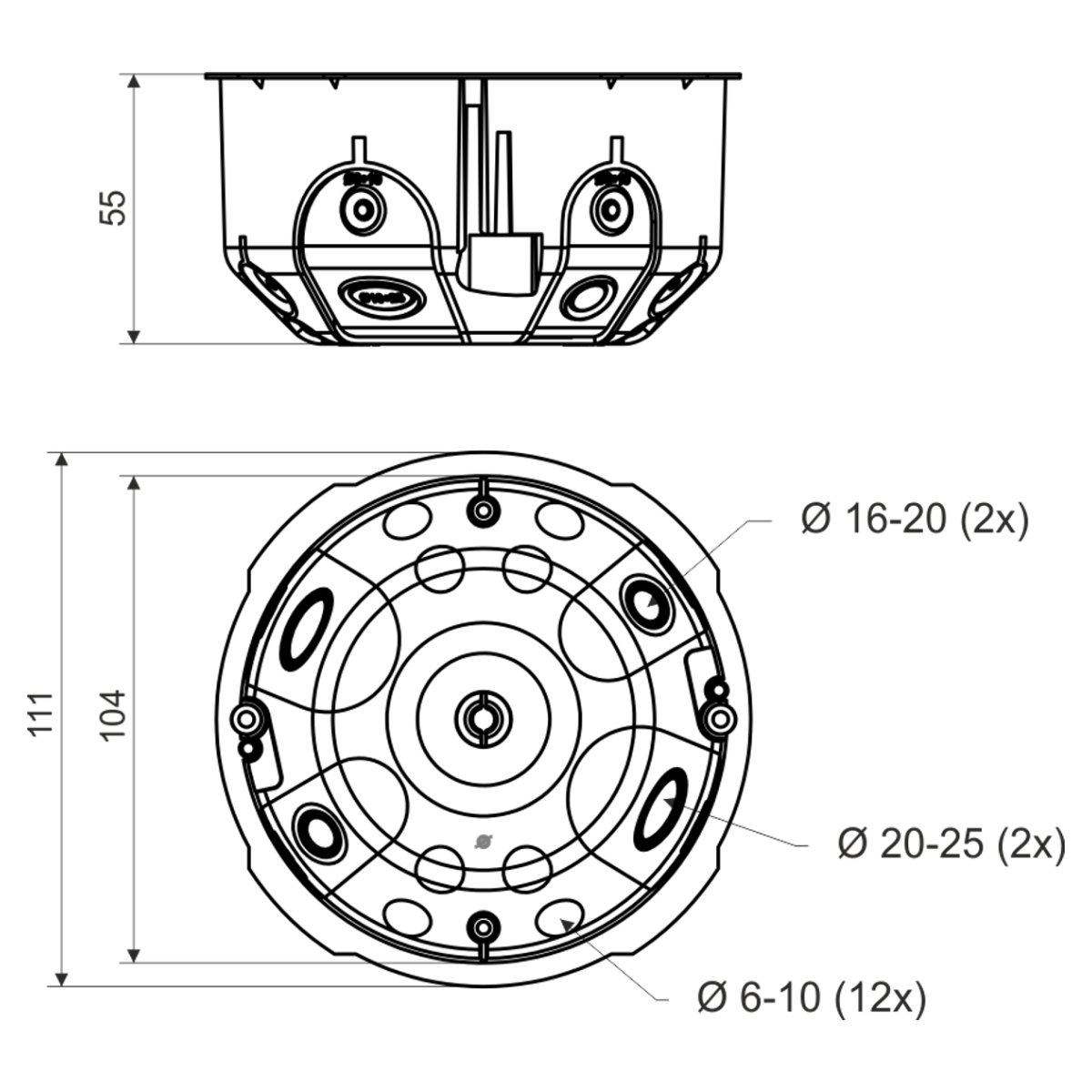

| Diameter: | 105 mm |
| Depth: | 55 - 55 mm |
| Inner depth: | 52 mm |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | no |
| Housing feed-through by seal membrane: | yes |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20/25 mm |
| Suitable for cable diameter: | 6 - 25 mm |
| Pipe locking: | no |
| Pipe locking optional: | no |
| Inlet from the rear: | yes |
| Number of inlets: | 16 |
| Material: | Plastic |
| Halogen free: | no |
| Colour: | Yellow |
| Degree of protection (IP): | IP30 |
| Cover attachment: | Screwed |
| Circuit integrity: | None |
| With screening: | no |
| Air tight: | yes |
| Max. conductor cross section: | 4 mm² |
| Luminaire hook mounting: | no |
