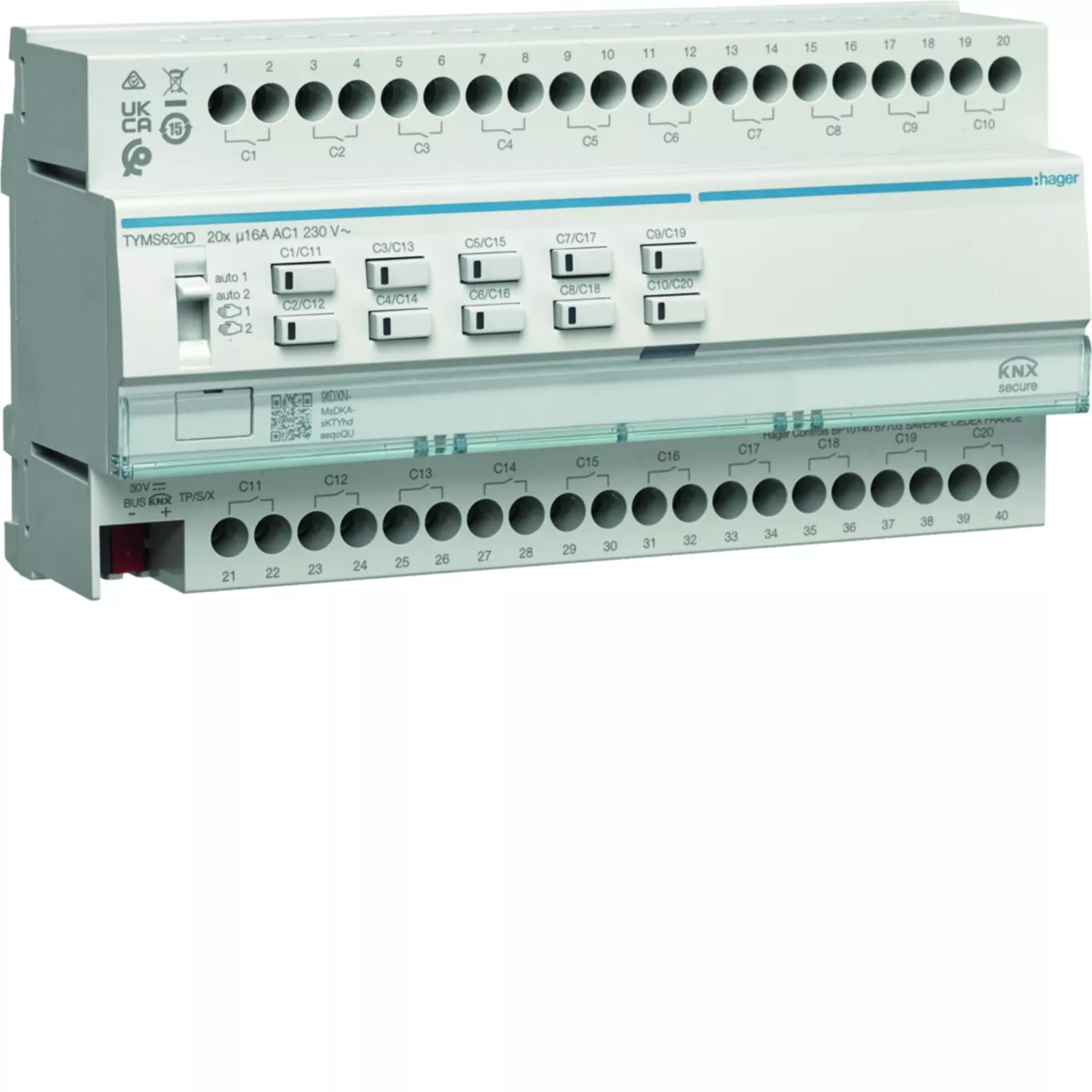

KNX e/s Sterownik załączający/żaluzjowy 20-/10-krotny 16A C-load, KNX secure
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | TYMS620D |
| GTIN(EAN) | 3250610050071 |
| Price unit | piece |
| Catalog price | 2 835,15 zł (2 305,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 670 g |
| ETIM class: | Switch actuator for bus system |
| Radio frequent bidirectional: | no |
| Bus system KNX: | yes |
| Min. depth of built-in installation box: | 65 mm |
| Other bus systems: | None |
| Local operation/hand operation: | yes |
| Bus module detachable: | no |
| Degree of protection (IP): | IP20 |
| Different phases connectable: | yes |
| Width in number of modular spacings: | 8 |
| Modular expandability: | no |
| With LED indication: | yes |
| Output power: | 2300 W |
| Max. switching power LED: | 450 W |
| Rated current: | 16 A |
| Suitable for C-load: | yes |
| Bus system radio frequent: | no |
| Number of digital inputs: | 0 |
| Max. switching power: | 28750 W |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| With bus connection: | yes |
| Rated operating voltage: | 230 - 230 V |
| Max. number of switching contacts: | 20 |
| Mounting method: | DRA (DIN-rail adapter) |
| Max. switching current: | 16 A |
