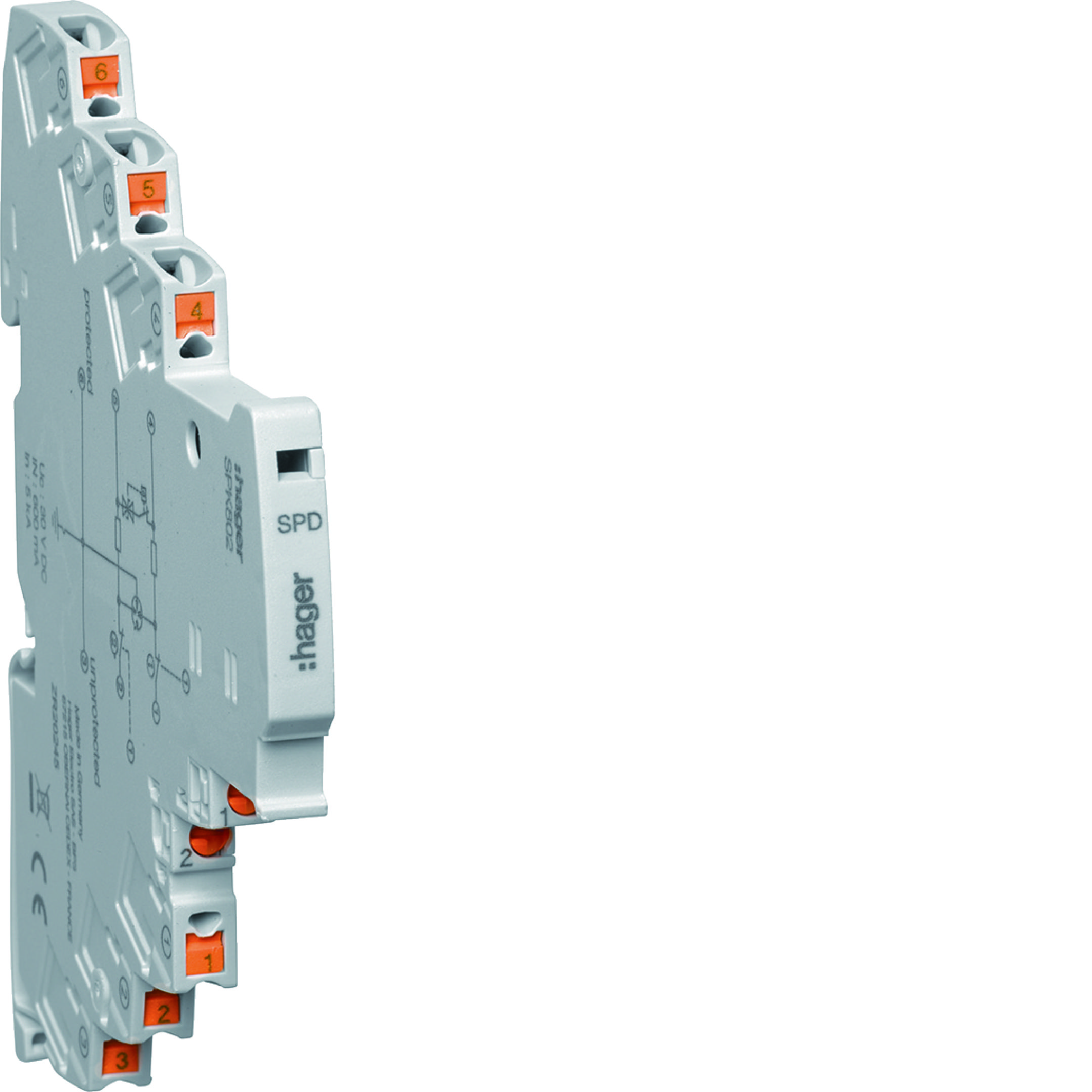

SPD dla urządzeń 4-20mA 2P In=5kA Iimp=0,5kA styk
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | SPK802 |
GTIN(EAN) | 3250615515100 |
Price unit | piece |
Catalog price | 615,00 zł (500,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 36 g |
Country of origin | Niemcy |
ETIM class: | Surge protection device for data networks/MCR-technology |
Explosion-tested version: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Nominal voltage DC: | 24 - 24 V |
Nominal discharge surge current (8/20): | 5 kA |
Connection 1: | Clamp |
Nominal voltage AC: | 24 - 24 V |
Pro-active thermo-control: | no |
Max. continuous voltage AC: | 21 V |
Max. continuous voltage DC: | 30 V |
Voltage protection level core/core: | 80 V |
Signalling at the device: | Optical |
Voltage protection level core/earth: | 145 V |
With remote signalling contact: | yes |
Lightning impulse current (10/350 µs): | 0.5 kA |
Earthing via: | Separate conductor |
Number of conductors (without earthing): | 6 |
Assembly width: | 6.2 mm |
Degree of protection (IP): | IP20 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-11-08 11:39:01 |
Files to download: | |
External links: |
