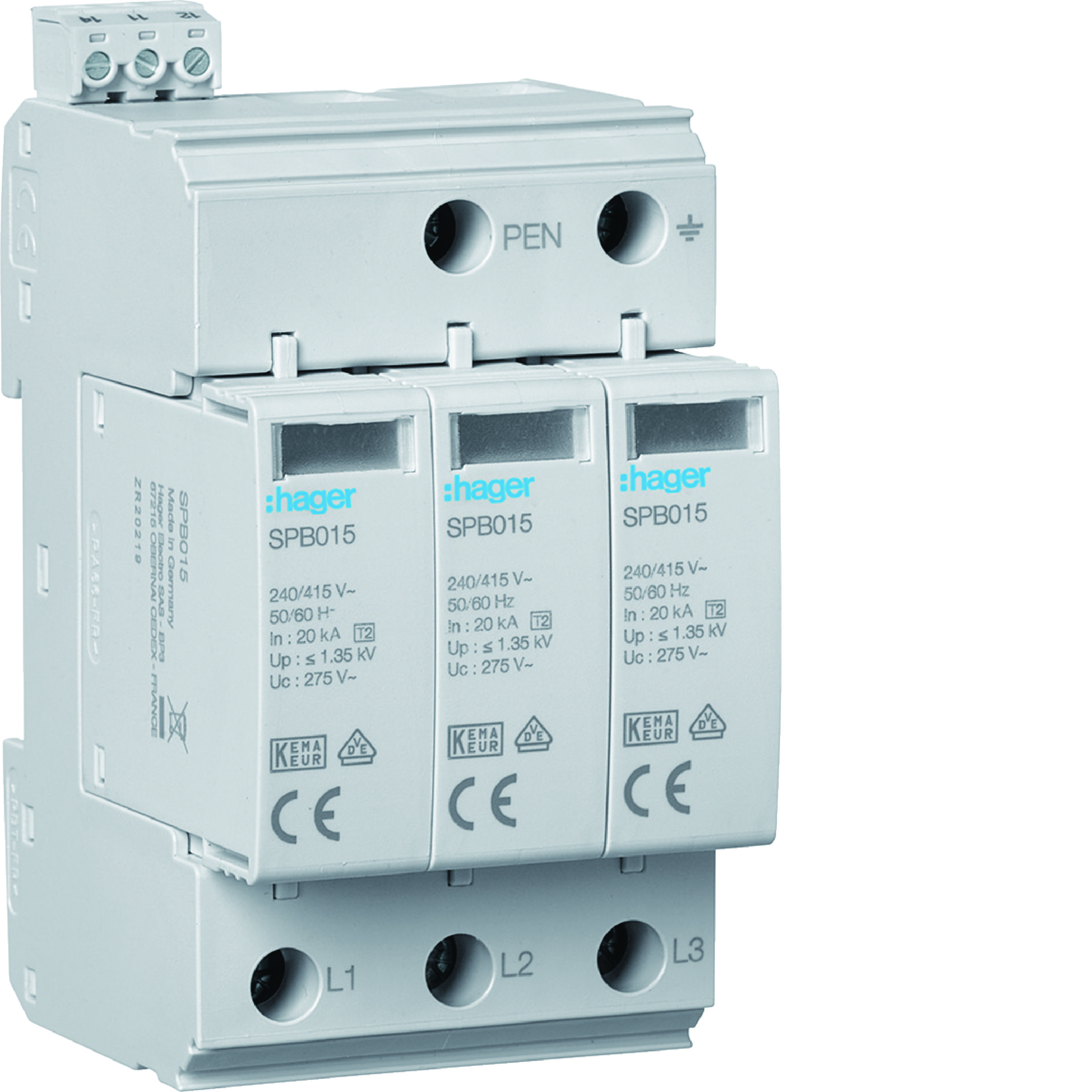

SPD T2 3P sieć TN-C In=20kA Imax=40kA Up≤1,35kV styk
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | SPB315 |
| GTIN(EAN) | 3250615514899 |
| Price unit | piece |
| Catalog price | 1 097,16 zł (892,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 349 g |
| Country of origin | Niemcy |
| ETIM class: | Surge protection device for power supply systems |
| Max. discharge surge current (8/20): | 40 kA |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| System configuration TN-S: | no |
| System configuration TT: | no |
| Voltage protection level L-N: | 1.35 kV |
| Max. continuous voltage AC: | 275 V |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of conductors (without earthing): | 3 |
| Integrated backup fuse: | no |
| Voltage protection level: | 1.35 kV |
| Nominal discharge surge current (8/20): | 20 kA |
| Construction size: | 3 modular spacing |
| Signalling at the device: | Optical |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| System configuration TN: | yes |
| System configuration other: | no |
| Short-circuit breaking capacity (Isccr): | 25 kA |
| Max. PV-voltage: | 0 V |
| Nominal voltage AC: | 400 V |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | no |
| Degree of protection (IP): | IP20 |
| With remote signalling contact: | yes |
| Category type 2: | yes |
| Leakage-current free: | no |
| Max. overcurrent protection device, parallel connection (fuse): | 125 A |
| Max. overcurrent protection device, series connection (fuse): | 80 A |
| Integrated short-circuit protection: | no |
| System configuration IT: | no |
| System configuration DC: | no |
