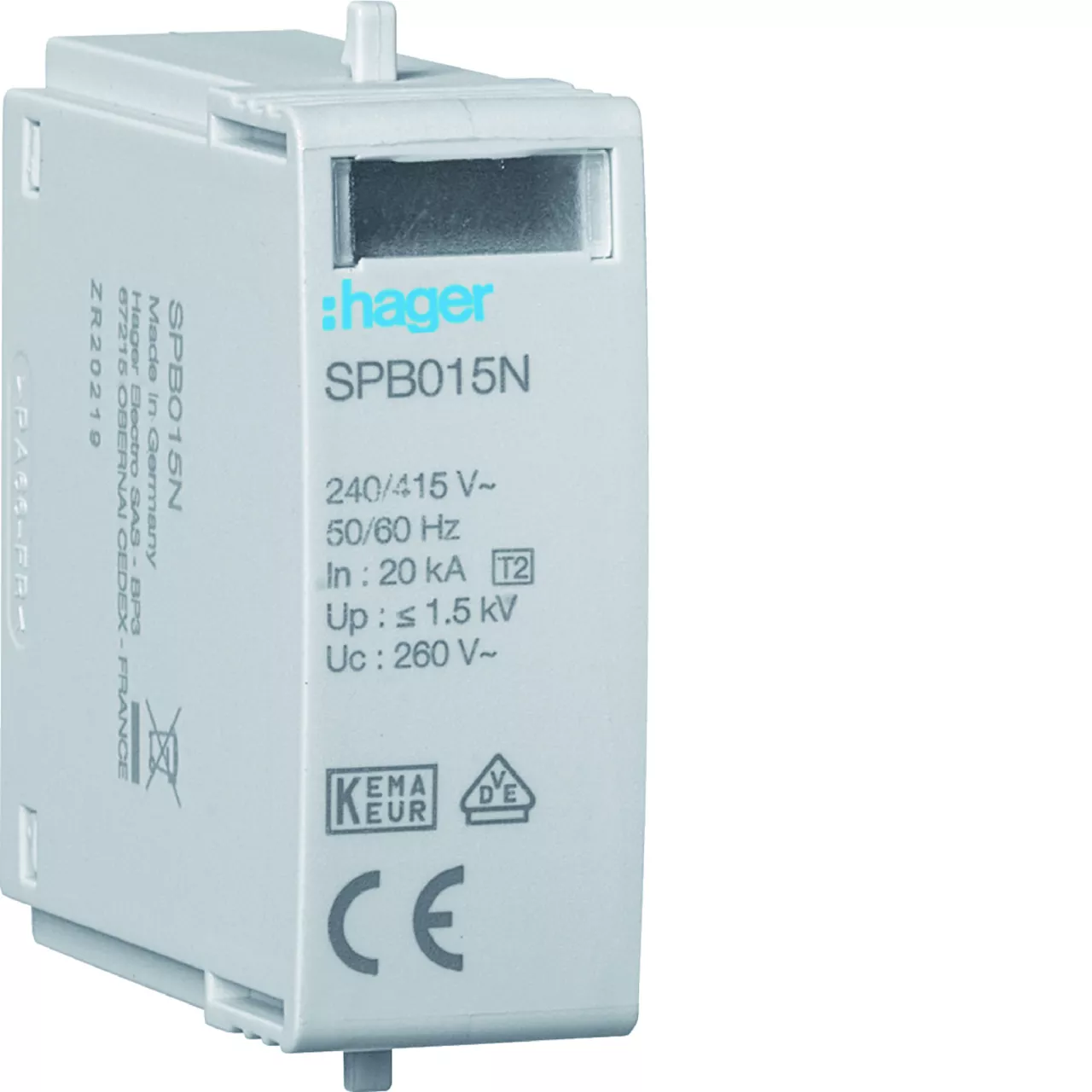

SPD Moduł T2 MOV 1P N-PE sieć TT In=20kA Imax=40kA Up≤1,5kV Uc=260V
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | SPB015N |
| GTIN(EAN) | 3250615514868 |
| Price unit | piece |
| Catalog price | 430,50 zł (350,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 35 g |
| Country of origin | Niemcy |
| ETIM class: | Surge protection device for power supply systems |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Voltage protection level L-N: | 1,5 kV |
| Max. continuous voltage AC: | 260 V |
| Mounting method: | On basic element |
| Voltage protection level N-PE: | 1,35 kV |
| Integrated backup fuse: | no |
| Voltage protection level: | 1,5 kV |
| Nominal discharge surge current (8/20): | 20 kA |
| Construction size: | 1 modular spacing |
| Signalling at the device: | Optical |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| System configuration other: | no |
| Short-circuit breaking capacity (Isccr): | 25 kA |
| Max. PV-voltage: | 0 V |
| Nominal voltage AC: | 240 V |
| Degree of protection (IP): | IP20 |
| Category type 2: | yes |
| Leakage-current free: | no |
| Integrated short-circuit protection: | no |
| Max. discharge surge current (8/20): | 40 kA |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration IT: | no |
| System configuration DC: | no |
| System configuration TN: | no |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
