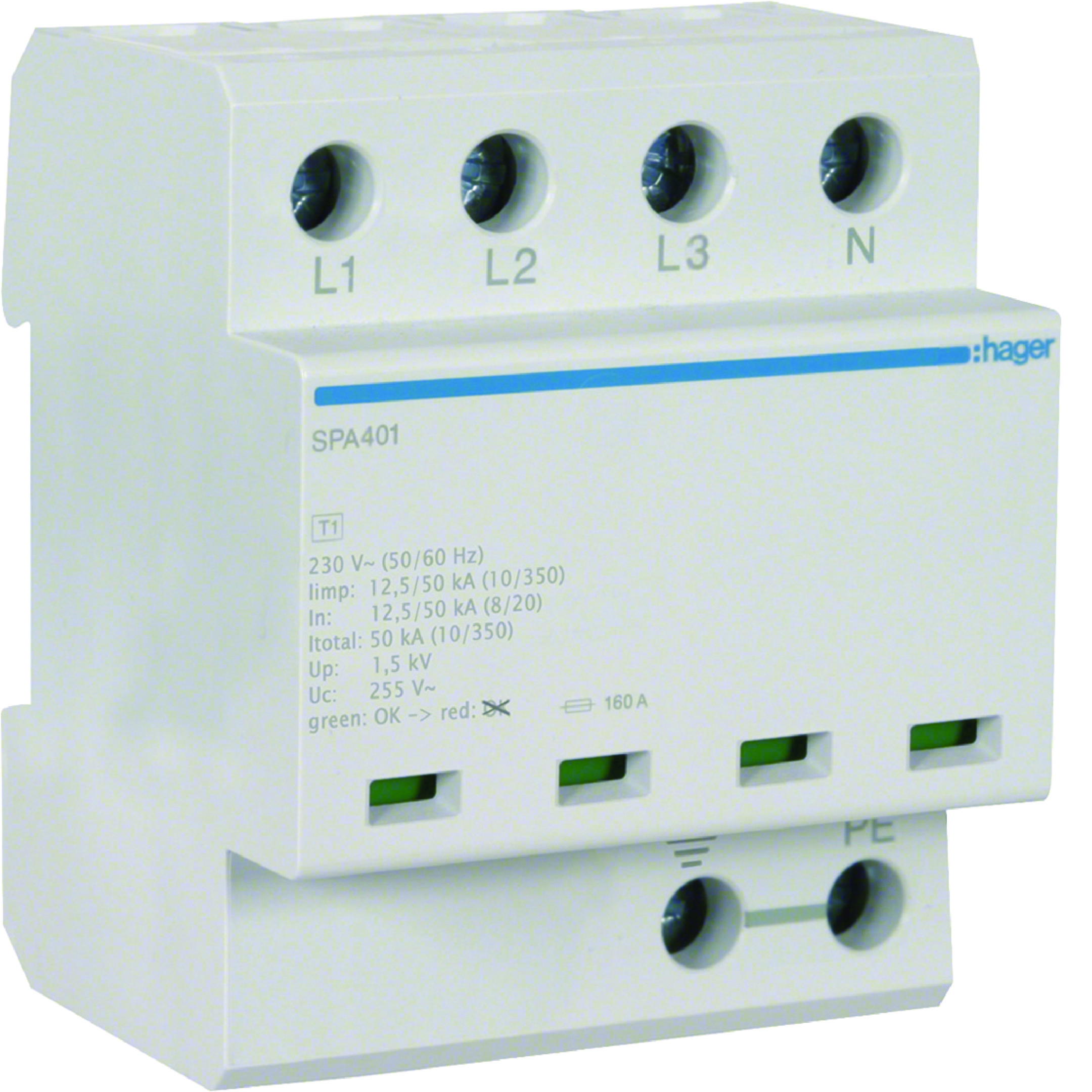

SPD Ogranicznik przepięć T1+T2 kombinowany 4P TN-S/TT Iimp 50kA Up≤1,5kV
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | SPA401 |
GTIN(EAN) | 3250615662040 |
Price unit | piece |
Catalog price | 3 703,53 zł (3 011,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 573 g |
Country of origin | Niemcy |
ETIM class: | Surge protection device for power supply systems |
Max. discharge surge current (8/20): | 12.5 kA |
System configuration TN-S: | yes |
System configuration TT: | yes |
Voltage protection level L-N: | 1.5 kV |
Max. continuous voltage AC: | 255 V |
Mounting method: | DIN rail (top hat rail) 35 mm |
Voltage protection level N-PE: | 1.5 kV |
Voltage protection level: | 1.5 kV |
Signalling at the device: | Optical |
Max. PV-voltage: | 0 V |
Nominal voltage AC: | 400 V |
Degree of protection (IP): | IP20 |
With remote signalling contact: | no |
Construction size: | 4 modular spacing |
Category type 2: | no |
System configuration other: | no |
System configuration TN-C: | no |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
System configuration TN-C-S: | no |
System configuration IT: | no |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
System configuration DC: | no |
System configuration TN: | no |
