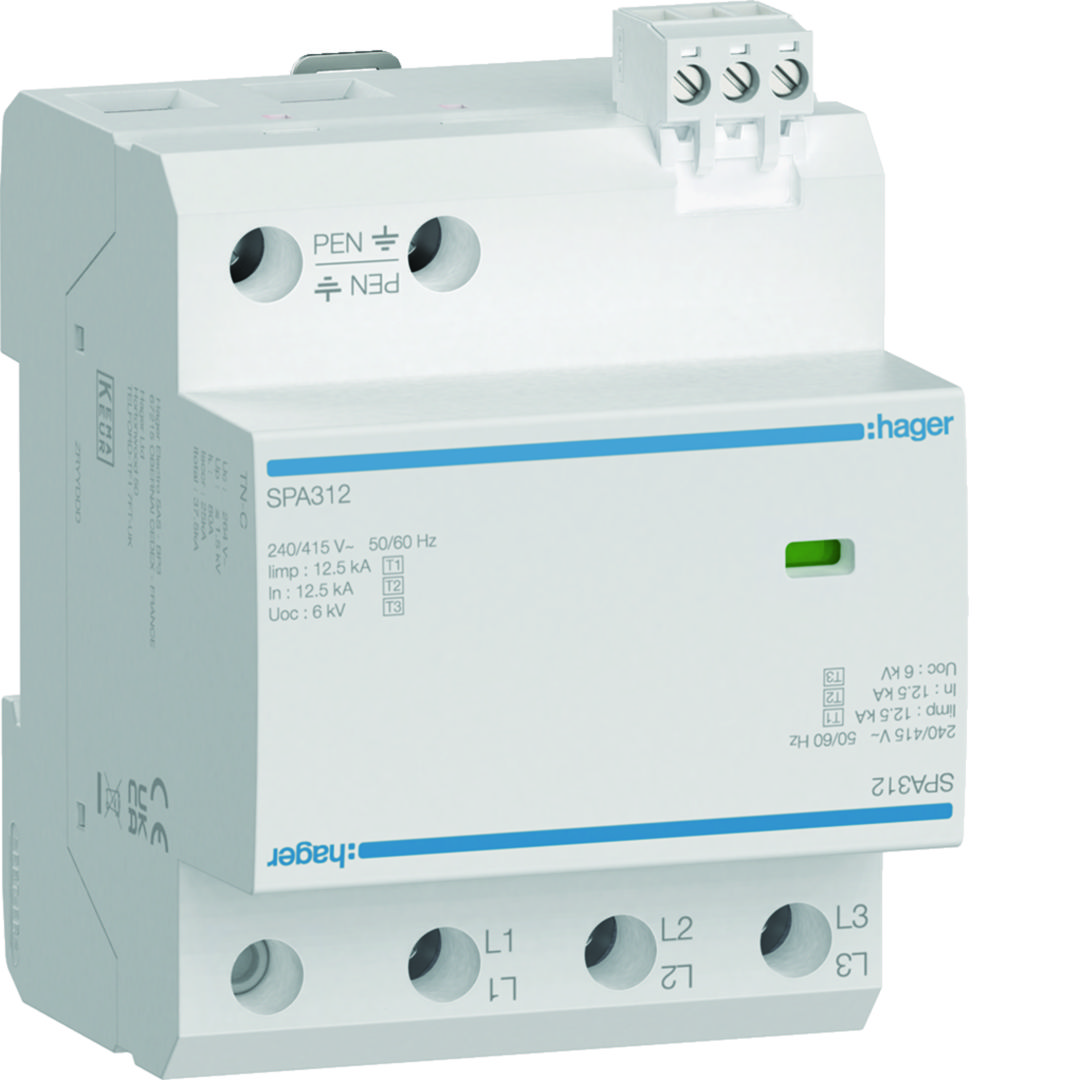

SPD Ogranicznik przepięć T1+T2+T3 kombinowany 3P TN-C Iimp=37,5kA styk
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | SPA312 |
| GTIN(EAN) | 3250615513182 |
| Price unit | piece |
| Catalog price | 3 444,00 zł (2 800,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 525 g |
| Country of origin | Chiny |
| ETIM class: | Combined arrester for power supply systems |
| Max. overcurrent protection device, parallel connection (fuse): | 160 A |
| Max. overcurrent protection device, series connection (fuse): | 80 A |
| Nominal voltage AC: | 415 V |
| Number of poles: | 3 |
| Construction size: | 3 modular spacing |
| Test class: | Type 1 and 2 and 3 |
| Degree of protection (IP): | IP20 |
| Remote signalling: | yes |
| Follow current extinguishing capability: | 25 kA |
| Lightning impulse current (10/350 µs): | 12.5 kA |
| Integrated backup fuse: | no |
| Max. continuous voltage AC: | 264 V |
| Overcurrent protected voltage tapping: | yes |
| Voltage switching spark gap technology: | yes |
| Voltage protection level L-N: | 1.5 kV |
| Specific energy (W/R): | 39 kJ/Ω |
| System configuration other: | no |
| System configuration TN-C: | yes |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| System configuration TN-C-S: | no |
| System configuration IT: | no |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| System configuration DC: | no |
| System configuration TN: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Voltage protection level: | 1.5 kV |
| Signalling at the device: | Optical |
