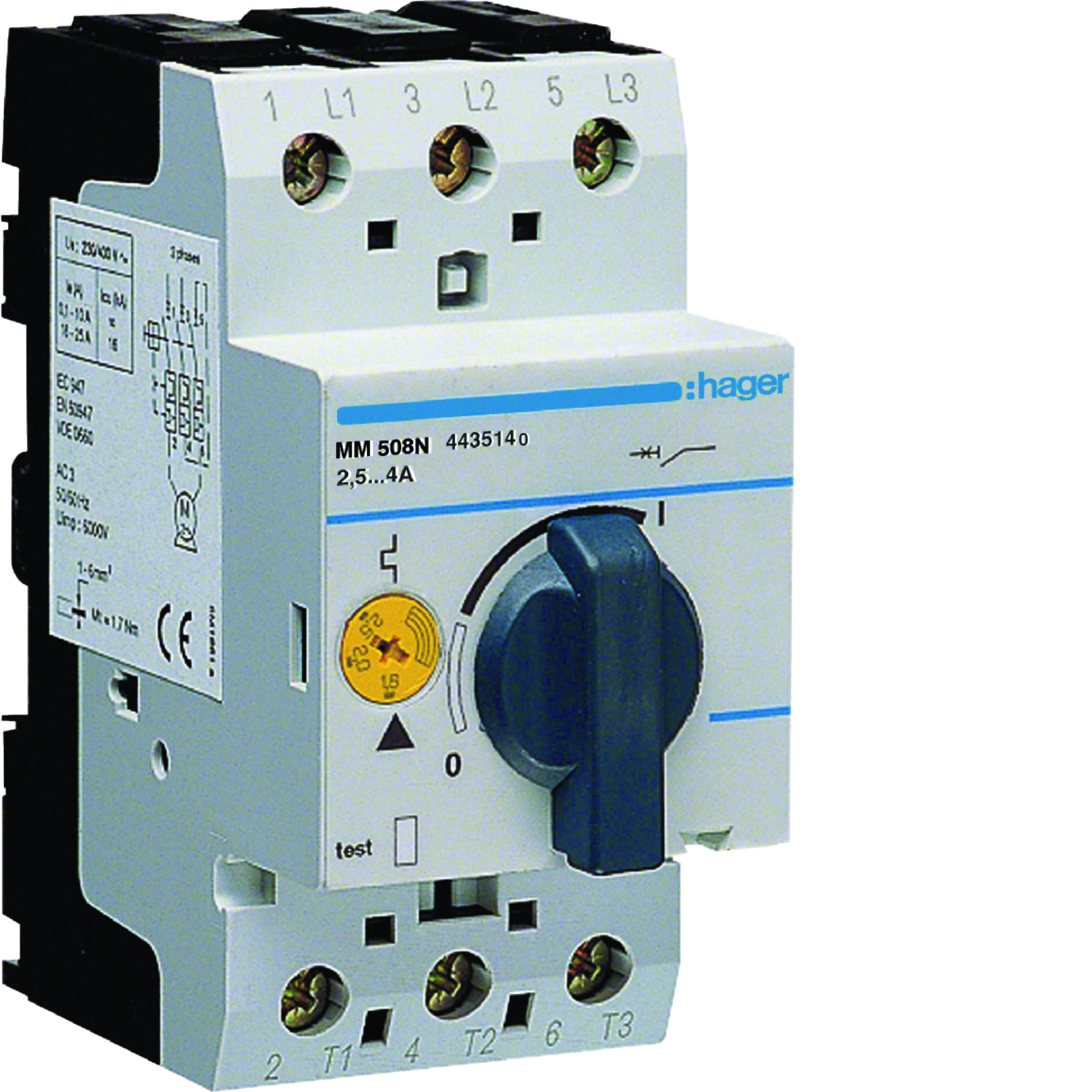

Wyłącznik silnikowy 2,5-4A
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | MM508N |
GTIN(EAN) | 3250614435218 |
Price unit | piece |
Catalog price | 276,75 zł (225,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 142 g |
Country of origin | Niemcy |
ETIM class: | Motor protection circuit-breaker |
With thermal overload protection: | yes |
Rated permanent current Iu: | 4 A |
Rated operation power at AC-3, 230 V: | 0.75 kW |
Switch off technique: | Thermomagnetic |
With integrated under voltage release: | no |
Width: | 45 mm |
Height: | 140 mm |
Number of poles: | 3 |
Depth: | 75 mm |
Overload release current setting: | 2.5 - 4 A |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Phase failure sensitive: | yes |
Rated operating voltage: | 690 - 690 V |
With integrated auxiliary switch: | no |
Rated operation power at AC-3, 400 V: | 1.5 kW |
Adjustment range undelayed short-circuit release: | 49.6 - 74.4 A |
Degree of protection (IP): | IP20 |
Device construction: | Built-in device fixed built-in technique |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
Power loss: | 5.33 W |
