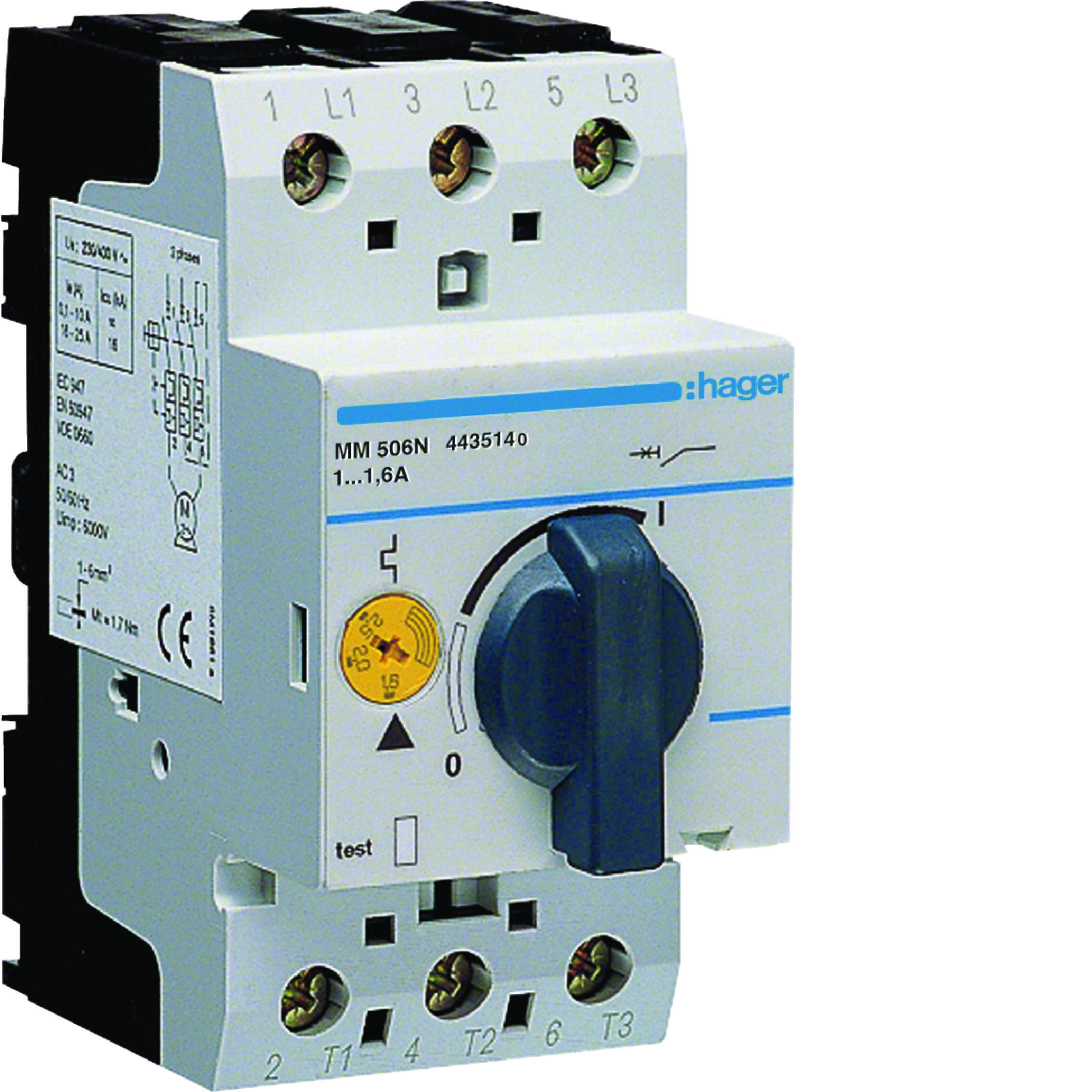

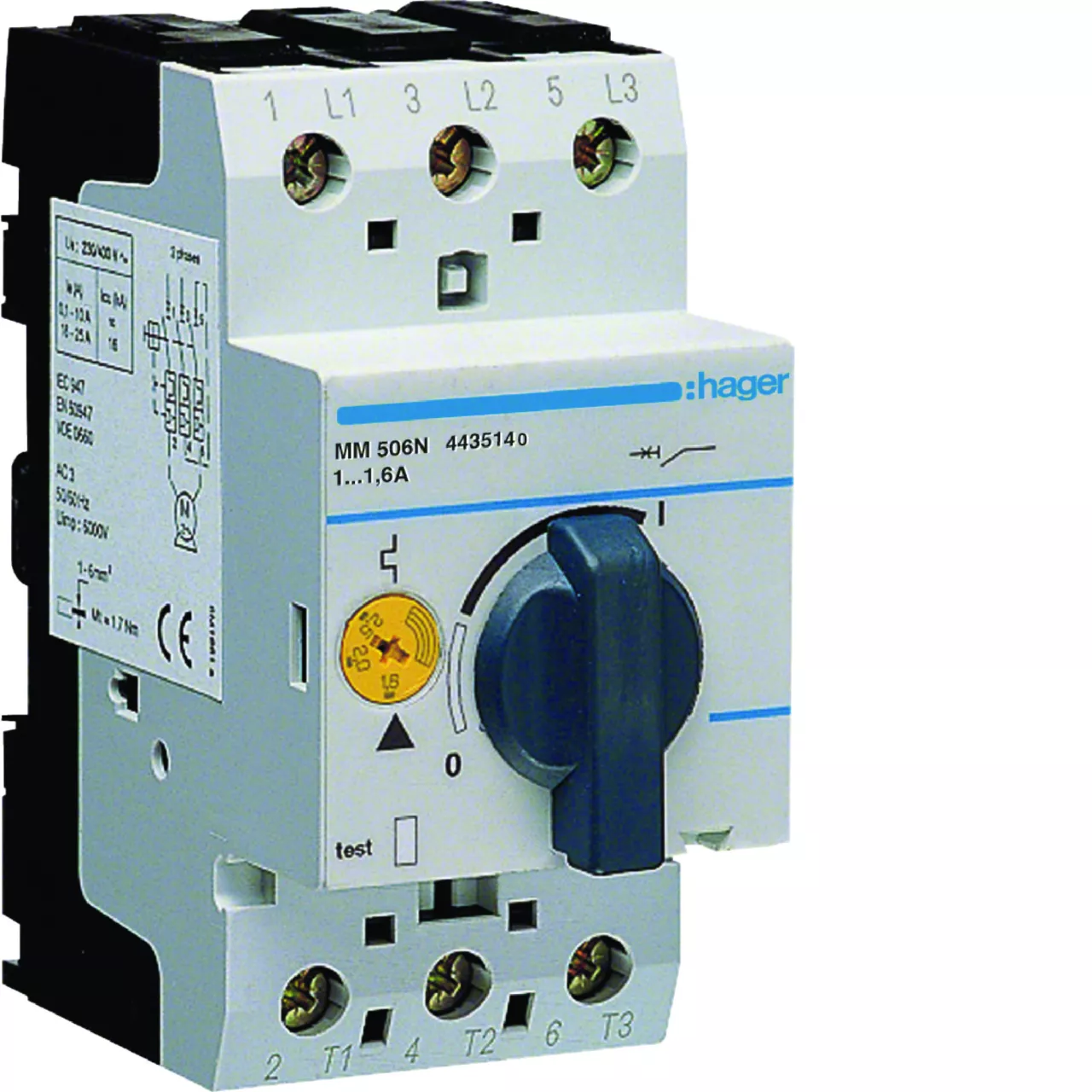

Wyłącznik silnikowy 1,0-1,6A
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | MM506N |
| GTIN(EAN) | 3250614435195 |
| Price unit | piece |
| Catalog price | 270,60 zł (220,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 322 g |
| Country of origin | Niemcy |
| ETIM class: | Motor protection circuit-breaker |
| With thermal overload protection: | yes |
| Rated permanent current Iu: | 1.6 A |
| Rated operation power at AC-3, 230 V: | 0.25 kW |
| Switch off technique: | Thermomagnetic |
| With integrated under voltage release: | no |
| Width: | 45 mm |
| Height: | 140 mm |
| Number of poles: | 3 |
| Depth: | 75 mm |
| Overload release current setting: | 1 - 1.6 A |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Turn button |
| Phase failure sensitive: | yes |
| Rated operating voltage: | 690 - 690 V |
| With integrated auxiliary switch: | no |
| Rated operation power at AC-3, 400 V: | 0.55 kW |
| Adjustment range undelayed short-circuit release: | 19.8 - 29.8 A |
| Degree of protection (IP): | IP20 |
| Device construction: | Built-in device fixed built-in technique |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
| Power loss: | 5.36 W |
