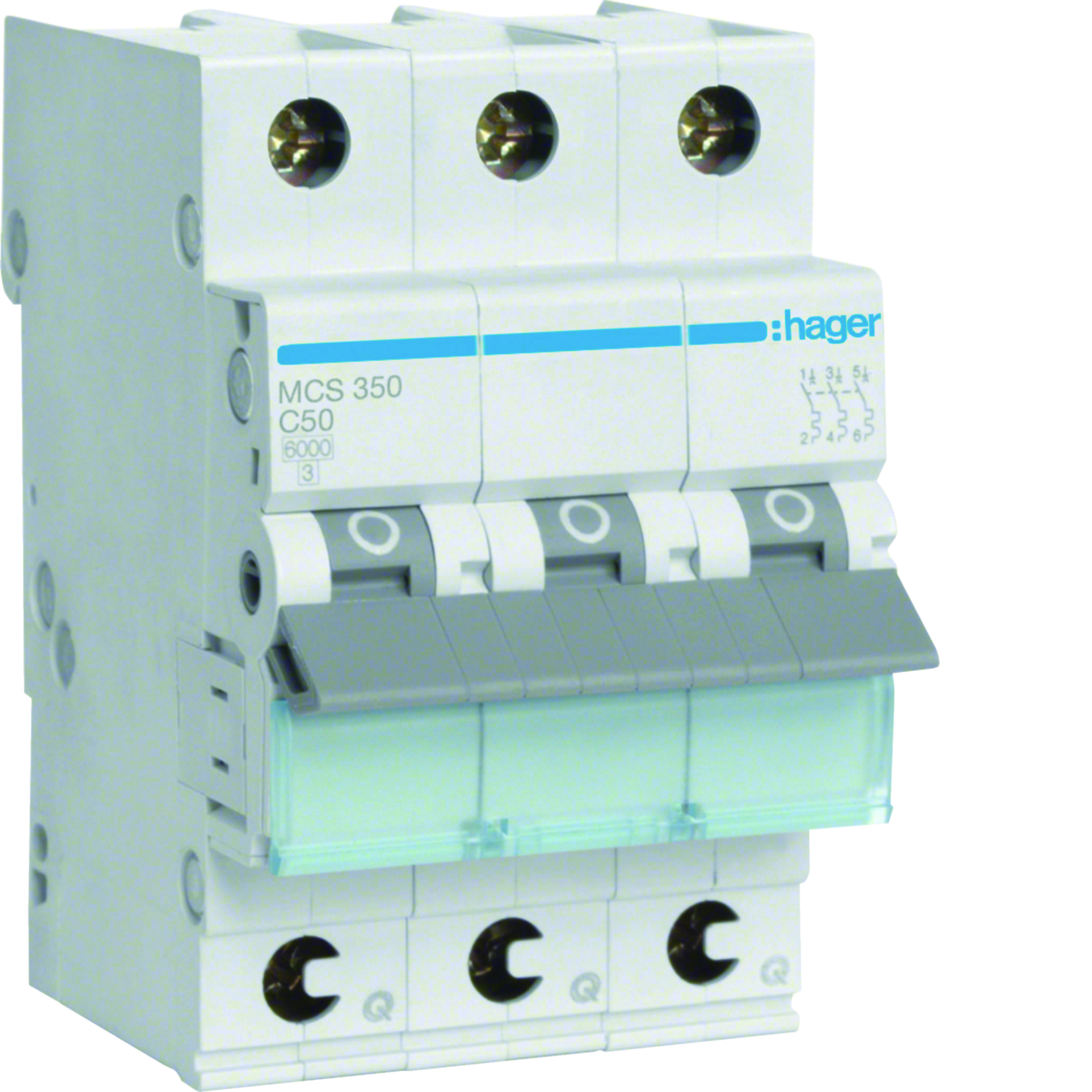

MCB Wyłącznik nadprądowy Icn=6000A 3P C 50A QuickConnect
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | MCS350 |
GTIN(EAN) | 3250614315381 |
Price unit | piece |
Catalog price | 323,49 zł (263,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 390 g |
ETIM class: | Miniature circuit breaker (MCB) |
Rated current: | 50 A |
Rated insulation voltage Ui: | 500 V |
Voltage type: | AC |
Rated impulse withstand voltage Uimp: | 4 kV |
Ambient temperature during operating: | -25 - 70 °C |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
Over voltage category: | 3 |
Frequency: | 50 - 60 Hz |
Release characteristic: | C |
Number of protected poles: | 3 |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Number of poles (total): | 3 |
Built-in depth: | 70 mm |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Rated voltage: | 400 V |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Concurrently switching neutral conductor: | no |
Pollution degree: | 2 |
Width in number of modular spacings: | 3 |
Current limiting class: | 3 |
Degree of protection (IP): | IP20 |
Additional equipment possible: | yes |
Explosion-proof: | no |
Flush-mounted installation: | yes |
Power loss: | 16.30 W |
