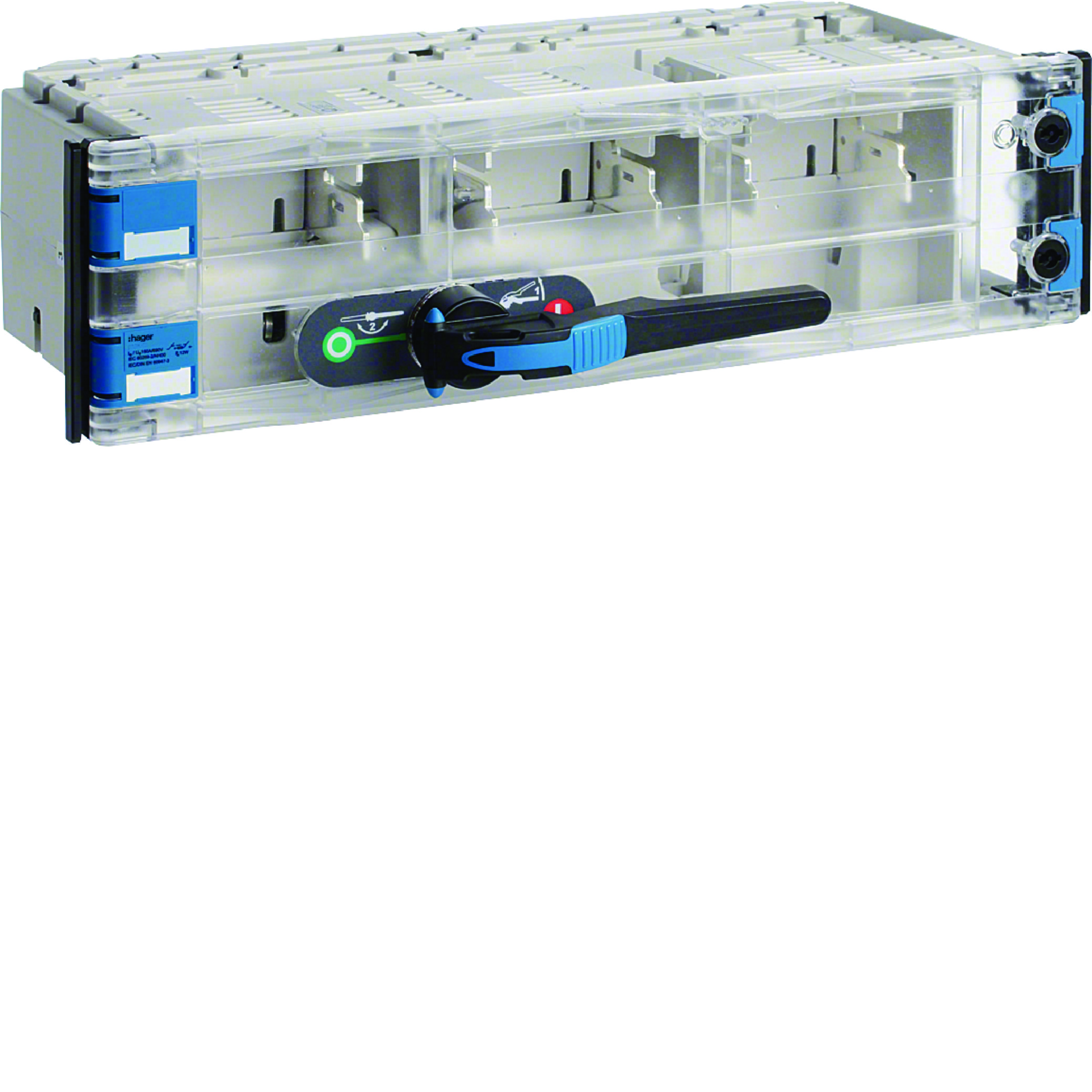

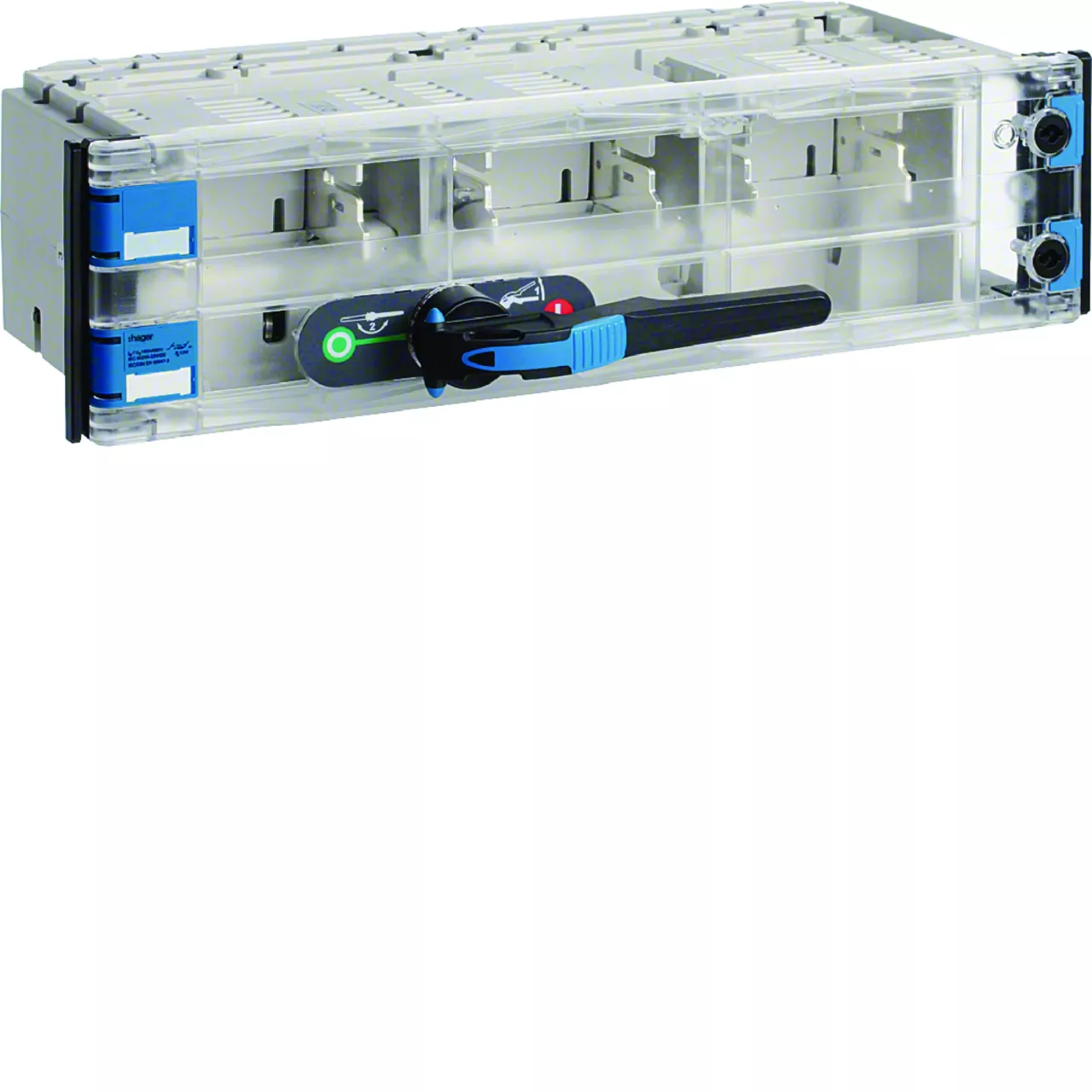

LLK-3 rozł. izol. z bezp. 3P 630A 400VAC 3xCT630-5S list. SKL odp.prawy AC23B
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | LLK692 |
| GTIN(EAN) | 4049857169955 |
| Price unit | piece |
| Catalog price | 8 507,91 zł (6 917,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 15,91 kg |
| Country of origin | Niemcy |
| ETIM class: | Fuse switch disconnector |
| Rated permanent current Iu: | 630 A |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Suitable for busbar mounting: | yes |
| Motor drive optional: | no |
| Motor drive integrated: | yes |
| Number of poles: | 3 |
| Suitable for fuses: | NH3 |
| Version as main switch: | no |
| Max. rated operation voltage Ue AC: | 690 V |
| Type of electrical connection of main circuit: | Cable clamp |
| Type of control element: | Long turning handle |
| Version as safety switch: | no |
| Position control element: | Front side |
| Version as emergency stop installation: | no |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | no |
| Rated operation power at AC-23, 400 V: | 0.295 kW |
| Equipped with connectors: | yes |
| Degree of protection (IP), front side: | IP40 |
| Cable entry: | Side |
| Rated short-time withstand current lcw: | 100 kA |
| With error protection: | no |
