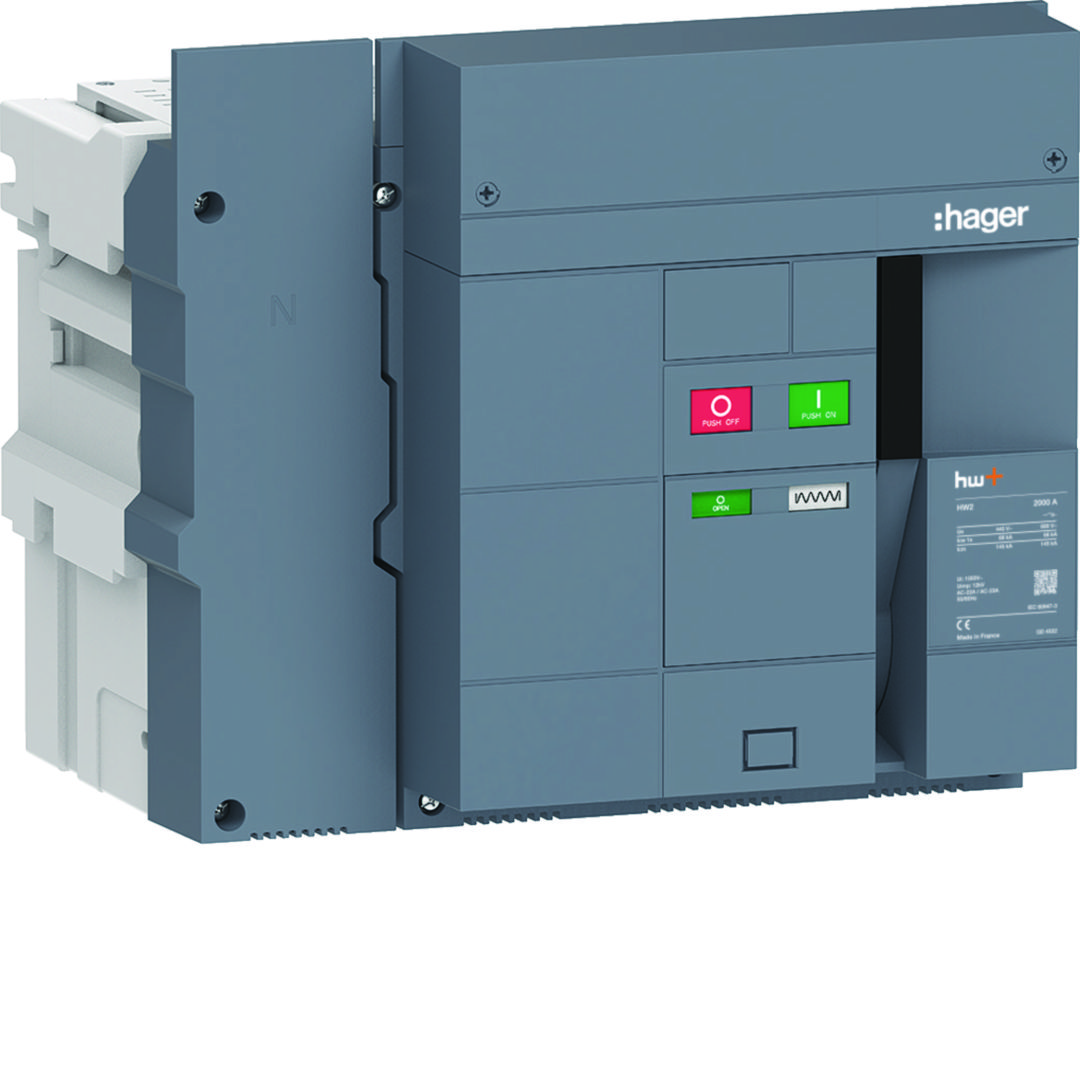

ACB HW2 2000A 4P Rozłącznik powietrzny wysuwny
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | HW2W420DS |
| GTIN(EAN) | 3250613218034 |
| Price unit | piece |
| Catalog price | 24 354,00 zł (19 800,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 121,3 kg |
| Country of origin | Francja |
| ETIM class: | Switch disconnector (low voltage) |
| Rated permanent current Iu: | 2000 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | yes |
| Motor drive integrated: | no |
| Rated permanent current at AC-21, 400 V: | 2000 A |
| Version as main switch: | yes |
| Type of electrical connection of main circuit: | Other |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | yes |
| Version as emergency stop installation: | no |
| Number of switches: | 1 |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | yes |
| Suitable for distribution board installation: | yes |
| Rated operating voltage: | 440 - 690 V |
| Suitable for intermediate mounting: | yes |
| Interlockable: | yes |
| Rated operation power at AC-23, 400 V: | 901 kW |
| Version as reversing switch: | no |
| Device construction: | Built-in device slide-in technique (withdrawable) |
| Number of poles: | 4 |
| Degree of protection (NEMA): | Other |
| Max. rated operation voltage Ue AC: | 690 V |
| Type of control element: | Push button |
| Voltage release optional: | yes |
| Degree of protection (IP), front side: | IP2X |
| Rated short-time withstand current lcw: | 66 kA |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current at AC-23, 400 V: | 2000 A |
| Number of auxiliary contacts as normally open contact: | 4 |
| Depth: | 450 mm |
| With pre-assembled cabling: | no |
| Width: | 465.5 mm |
| Height: | 442 mm |
