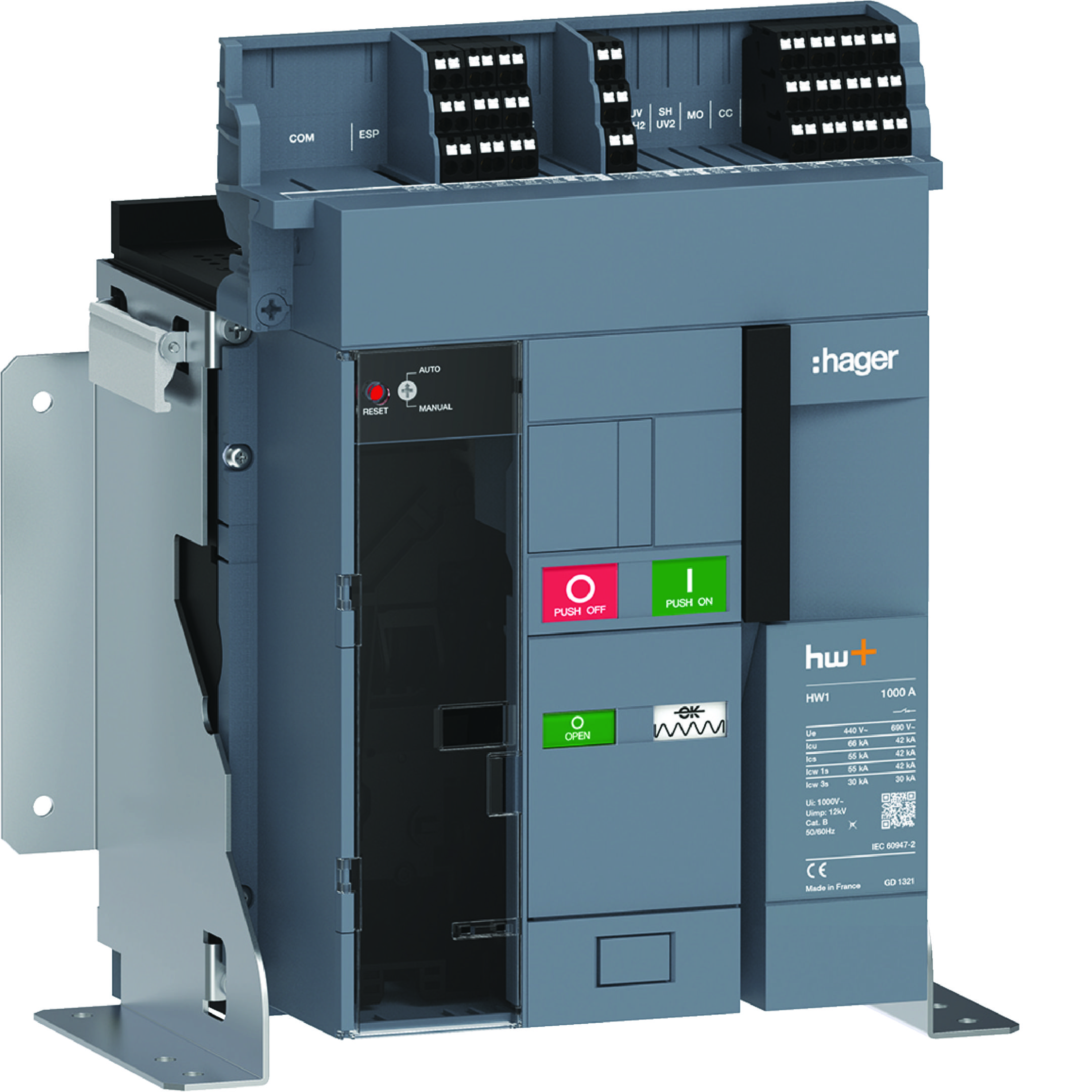

ACB HW1 66kA 1000A 3P Wyłącznik stacjonarny do wyzwalacza sentinel Energy
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | HW1E310FE |
| GTIN(EAN) | 3250613235734 |
| Price unit | piece |
| Catalog price | 14 094,57 zł (11 459,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 44 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 1000 A |
| Number of auxiliary contacts as change-over contact: | 3 |
| Integrated earth fault protection: | no |
| With switched-off indicator: | yes |
| Motor drive optional: | yes |
| Motor drive integrated: | no |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Position of connection for main current circuit: | Other |
| Number of poles: | 3 |
| Type of electrical connection of main circuit: | Rail connection |
| Type of control element: | Push button |
| DIN rail (top hat rail) mounting optional: | no |
| Complete device with protection unit: | no |
| Rated voltage: | 440 - 690 V |
| Degree of protection (IP): | IP2X |
| Device construction: | Built-in device fixed built-in technique |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 66 kA |
| Number of auxiliary contacts as normally open contact: | 0 |
| With integrated under voltage release: | no |
| Power loss: | 47.2 W |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-08 11:39:03 |
| Files to download: | |
| External links: |
