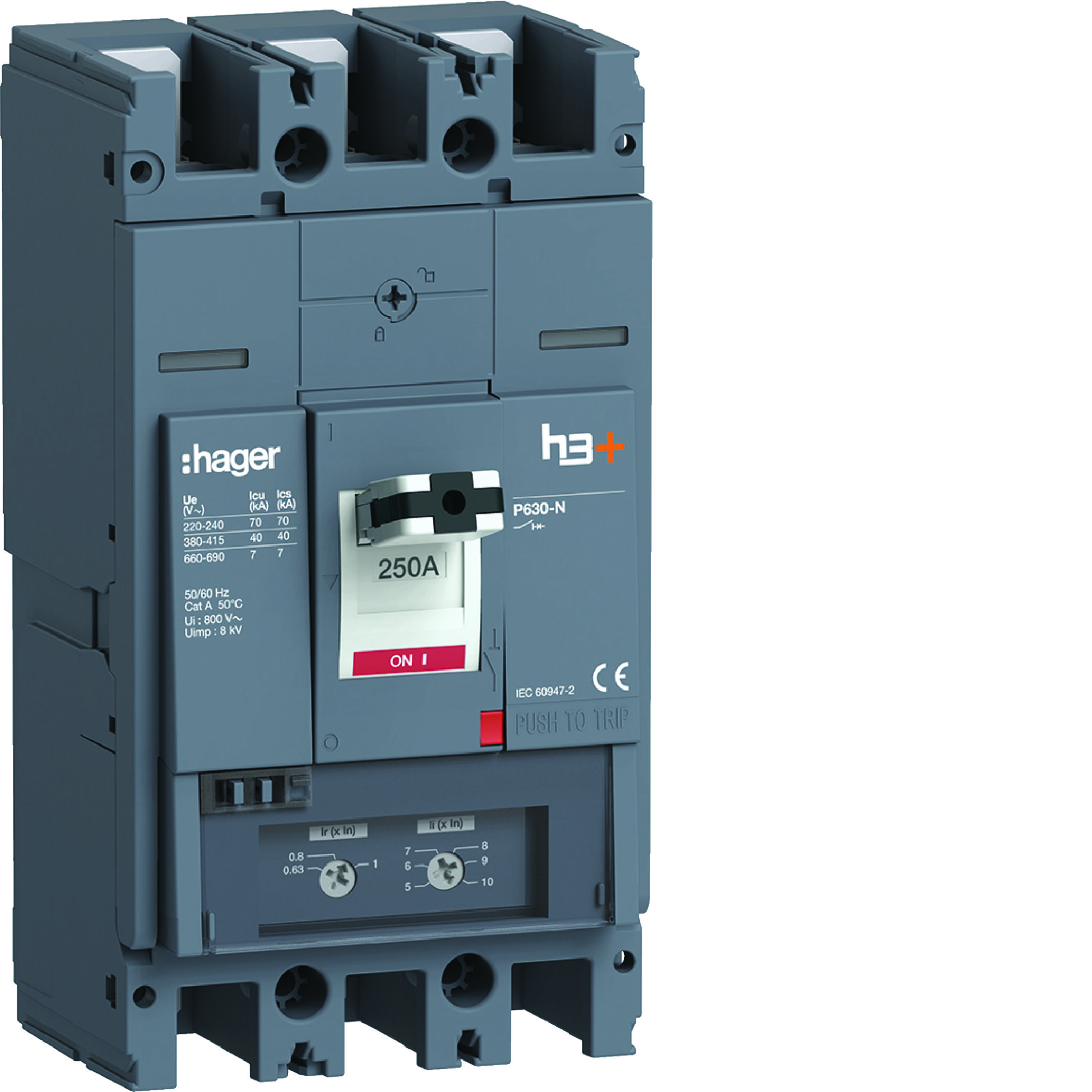

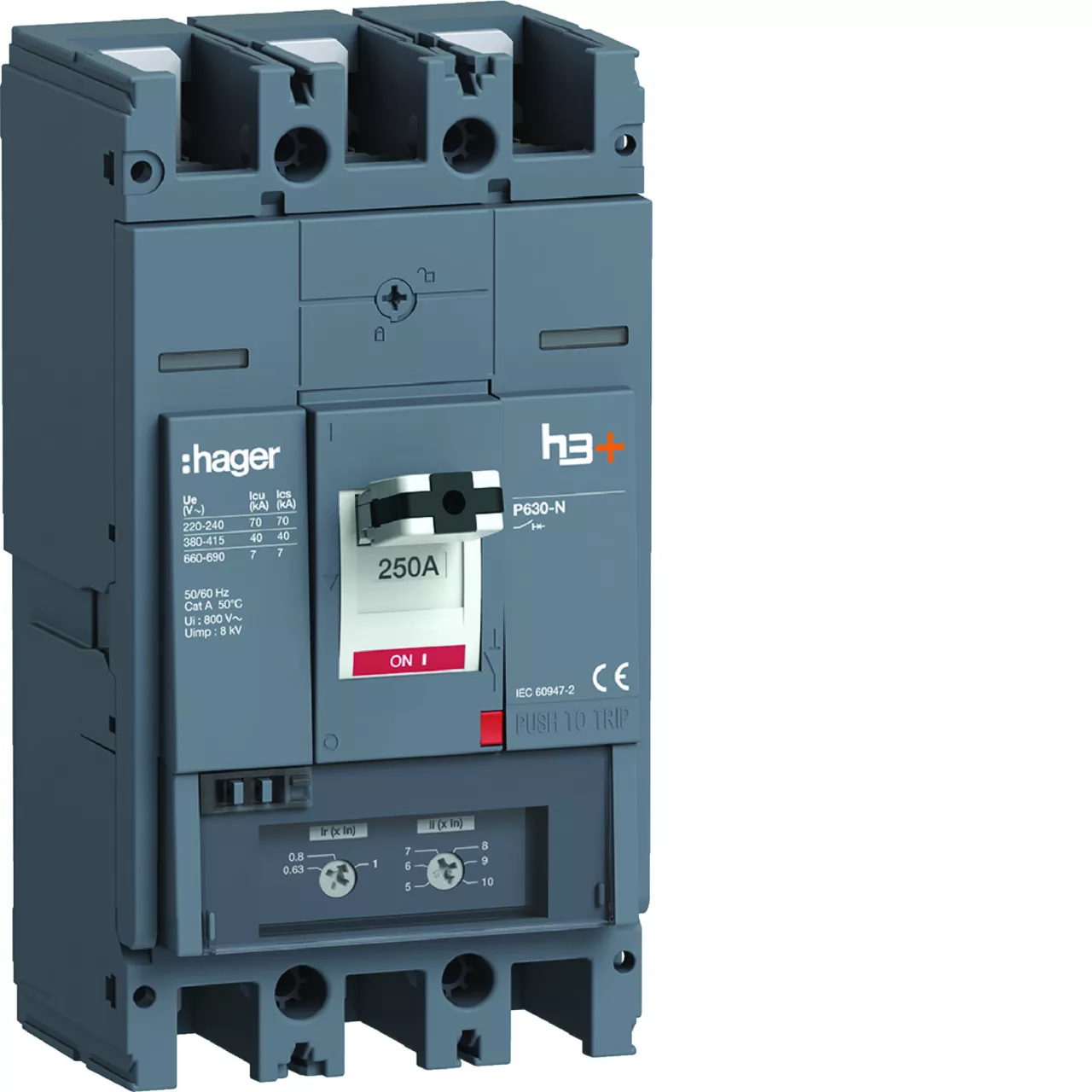

MCCB Wyłącznik mocy h3+ P630 TM 3x250A 40kA
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | HNW250DR |
| GTIN(EAN) | 3250613244507 |
| Price unit | piece |
| Catalog price | 5 782,23 zł (4 701,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,47 kg |
| Country of origin | Polska |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Motor drive integrated: | no |
| Adjustment range undelayed short-circuit release: | 1250 - 2500 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 40 kA |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Device construction: | Built-in device fixed built-in technique |
| Position of connection for main current circuit: | Front side |
| Motor drive optional: | yes |
| Type of control element: | Toggle |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP40 |
| Overload release current setting: | 160 - 250 A |
| Complete device with protection unit: | yes |
| DIN rail (top hat rail) mounting optional: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Integrated earth fault protection: | no |
| Rated permanent current Iu: | 250 A |
| Power loss: | 71.4 W |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| With switched-off indicator: | yes |
| Rated voltage: | 220 - 690 V |
