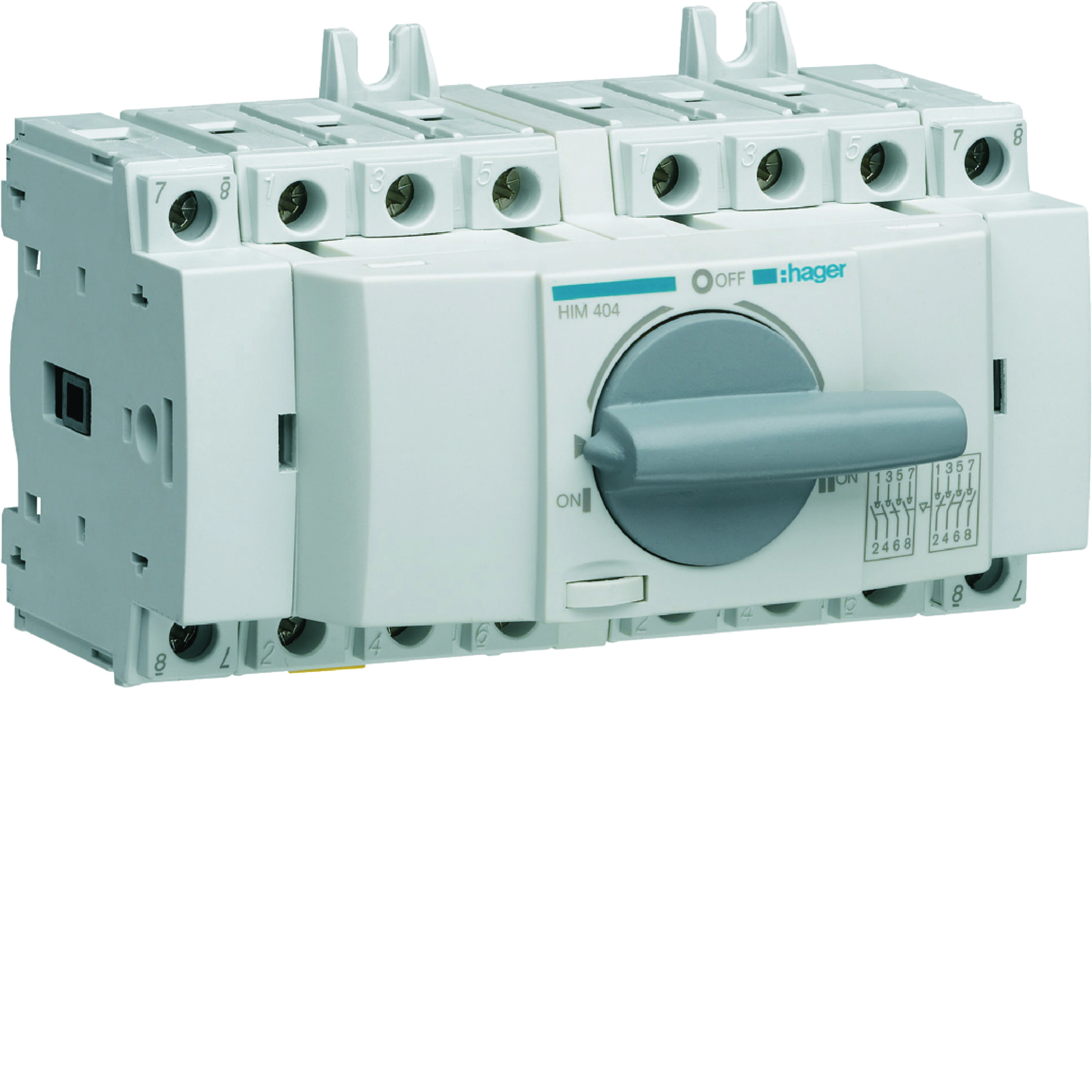

Modułowy przełącznik zasilania 3P+N 40A
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | HIM404 |
| GTIN(EAN) | 3250613140557 |
| Price unit | piece |
| Catalog price | 1 537,50 zł (1 250,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 613 g |
| Country of origin | Chiny |
| ETIM class: | Switch disconnector (low voltage) |
| Rated permanent current Iu: | 40 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Conditioned rated short-circuit current Iq: | 50 kA |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Rated permanent current at AC-21, 400 V: | 40 A |
| Version as main switch: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | yes |
| Version as emergency stop installation: | no |
| Number of switches: | 1 |
| Switching power at 400 V: | 26 kW |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | yes |
| Rated operating voltage: | 380 - 415 V |
| Suitable for intermediate mounting: | no |
| Interlockable: | yes |
| Rated operation power at AC-23, 400 V: | 18 kW |
| Version as reversing switch: | yes |
| Device construction: | Built-in device fixed built-in technique |
| Colour control element: | Grey |
| Number of poles: | 4 |
| Degree of protection (NEMA): | Other |
| Max. rated operation voltage Ue AC: | 415 V |
| Type of control element: | Short thumb-grip |
| Voltage release optional: | no |
| Degree of protection (IP), front side: | IP20 |
| Rated short-time withstand current lcw: | 1.26 kA |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current at AC-23, 400 V: | 40 A |
| Number of auxiliary contacts as normally open contact: | 0 |
| Depth: | 89 mm |
| With pre-assembled cabling: | no |
| Width: | 127.5 mm |
| Width in number of modular spacings: | 8 |
| Height: | 68 mm |
