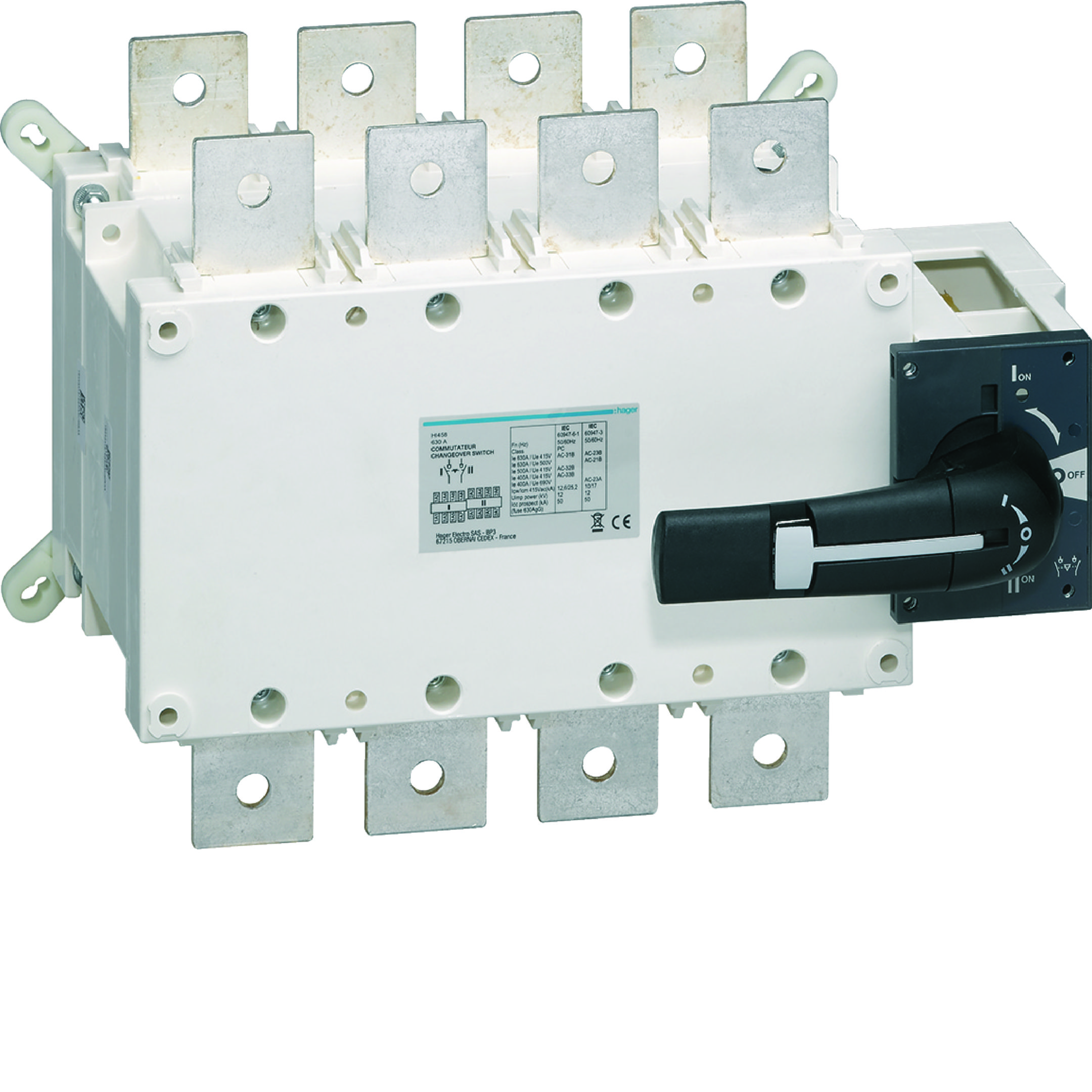

Przełącznik zasilania I-0-II 4P 630A
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | HI458 |
GTIN(EAN) | 3250613190057 |
Price unit | piece |
Catalog price | 15 454,95 zł (12 565,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 13,17 kg |
Country of origin | Tunezja |
ETIM class: | Switch disconnector (low voltage) |
Rated permanent current Iu: | 630 A |
Number of auxiliary contacts as change-over contact: | 0 |
Conditioned rated short-circuit current Iq: | 50 kA |
Motor drive optional: | no |
Motor drive integrated: | no |
Rated permanent current at AC-21, 400 V: | 630 A |
Version as main switch: | yes |
Type of electrical connection of main circuit: | Cable clamp |
Version as maintenance-/service switch: | yes |
Version as safety switch: | yes |
Version as emergency stop installation: | no |
Number of switches: | 1 |
Switching power at 400 V: | 414 kW |
Suitable for floor mounting: | yes |
Suitable for front mounting 4-hole: | no |
Suitable for front mounting centre: | no |
Suitable for distribution board installation: | yes |
Rated operating voltage: | 380 - 690 V |
Suitable for intermediate mounting: | no |
Interlockable: | yes |
Rated operation power at AC-23, 400 V: | 225 kW |
Version as reversing switch: | yes |
Device construction: | Built-in device fixed built-in technique |
Colour control element: | Black |
Number of poles: | 4 |
Degree of protection (NEMA): | Other |
Max. rated operation voltage Ue AC: | 690 V |
Type of control element: | Long turning handle |
Voltage release optional: | no |
Degree of protection (IP), front side: | IP00 |
Rated short-time withstand current lcw: | 17 kA |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated permanent current at AC-23, 400 V: | 500 A |
Number of auxiliary contacts as normally open contact: | 0 |
Depth: | 295 mm |
Width: | 379 mm |
Height: | 260 mm |
