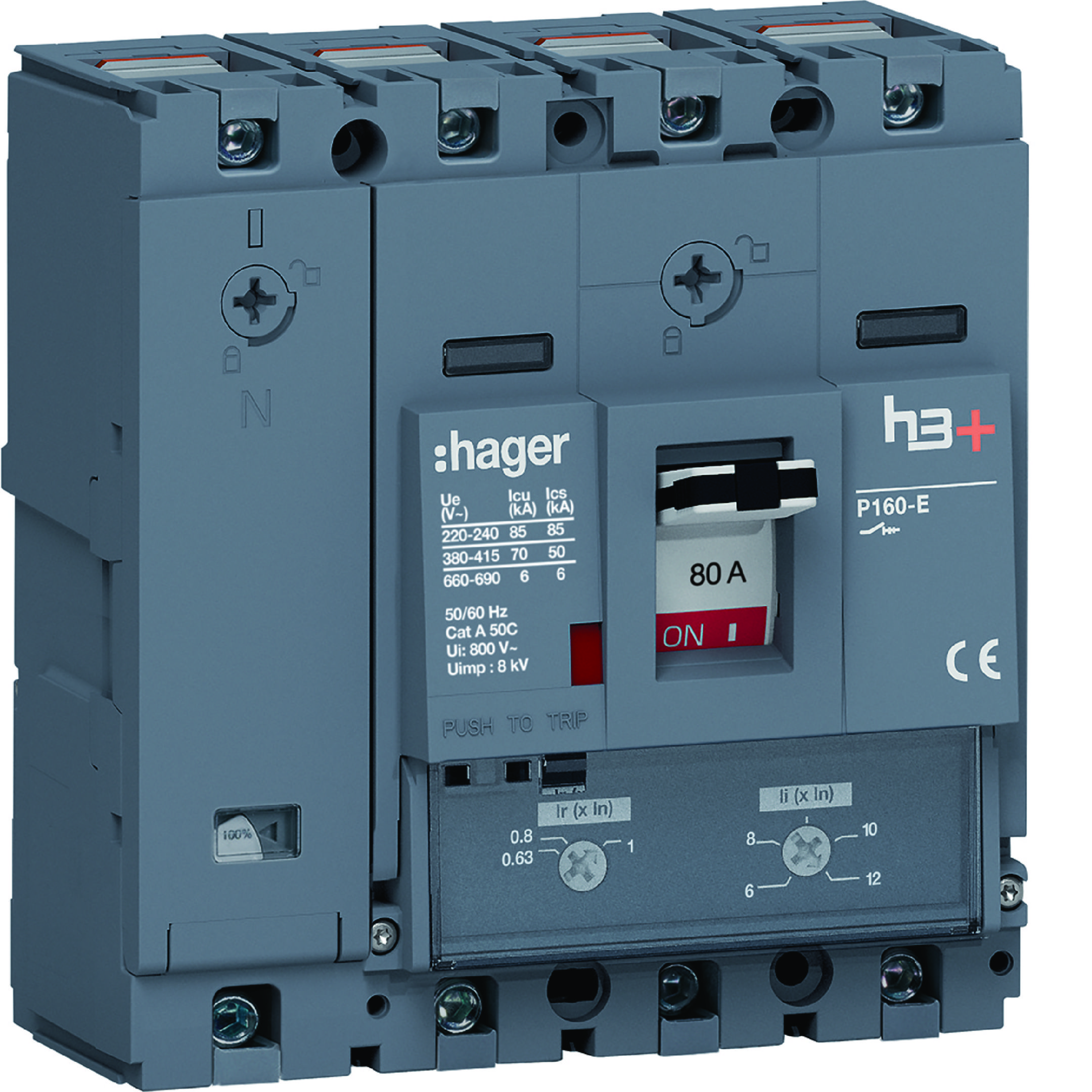

MCCB Wyłącznik mocy h3+ P160 4P 80A 70kA TM
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | HES081DC |
| GTIN(EAN) | 3250613177089 |
| Price unit | piece |
| Catalog price | 2 148,81 zł (1 747,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,47 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 80 A |
| Overload release current setting: | 50 - 80 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Integrated earth fault protection: | no |
| With switched-off indicator: | yes |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Position of connection for main current circuit: | Front side |
| Number of poles: | 4 |
| Adjustment range undelayed short-circuit release: | 480 - 960 A |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Toggle |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
| Rated voltage: | 220 - 690 V |
| Degree of protection (IP): | IP40 |
| Device construction: | Built-in device fixed built-in technique |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 70 kA |
| Number of auxiliary contacts as normally open contact: | 0 |
| With integrated under voltage release: | no |
| Power loss: | 17.7 W |
