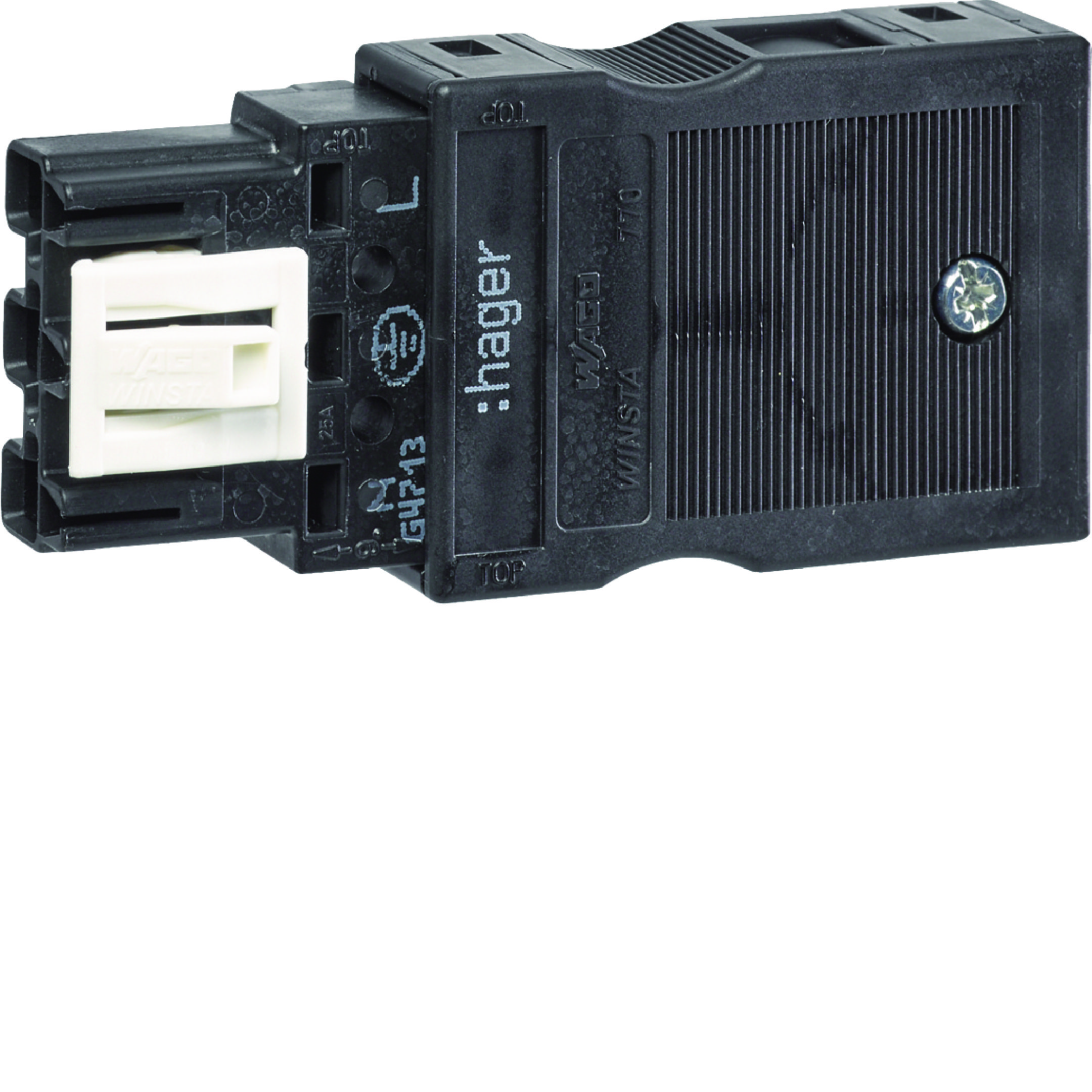

tehalit.WA Wtyk wyjściowy 3-polowy WAGO
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | G4713 |
GTIN(EAN) | 4012740849586 |
Price unit | piece |
Catalog price | 39,11 zł (31,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 22,64 g |
Country of origin | Niemcy |
ETIM class: | Plug-in connector for plug-in building installation |
Rated current: | 25 A |
With strain relief: | yes |
Mechanical coding: | yes |
Colour coding/contact insert: | Black |
Cable diameter: | 11.5 - 11.5 mm |
Max. continuous temperature resistance contact part: | 85 °C |
Fire load: | 0.126944 kWh |
Max. continuous temperature resistance strain relief: | 105 °C |

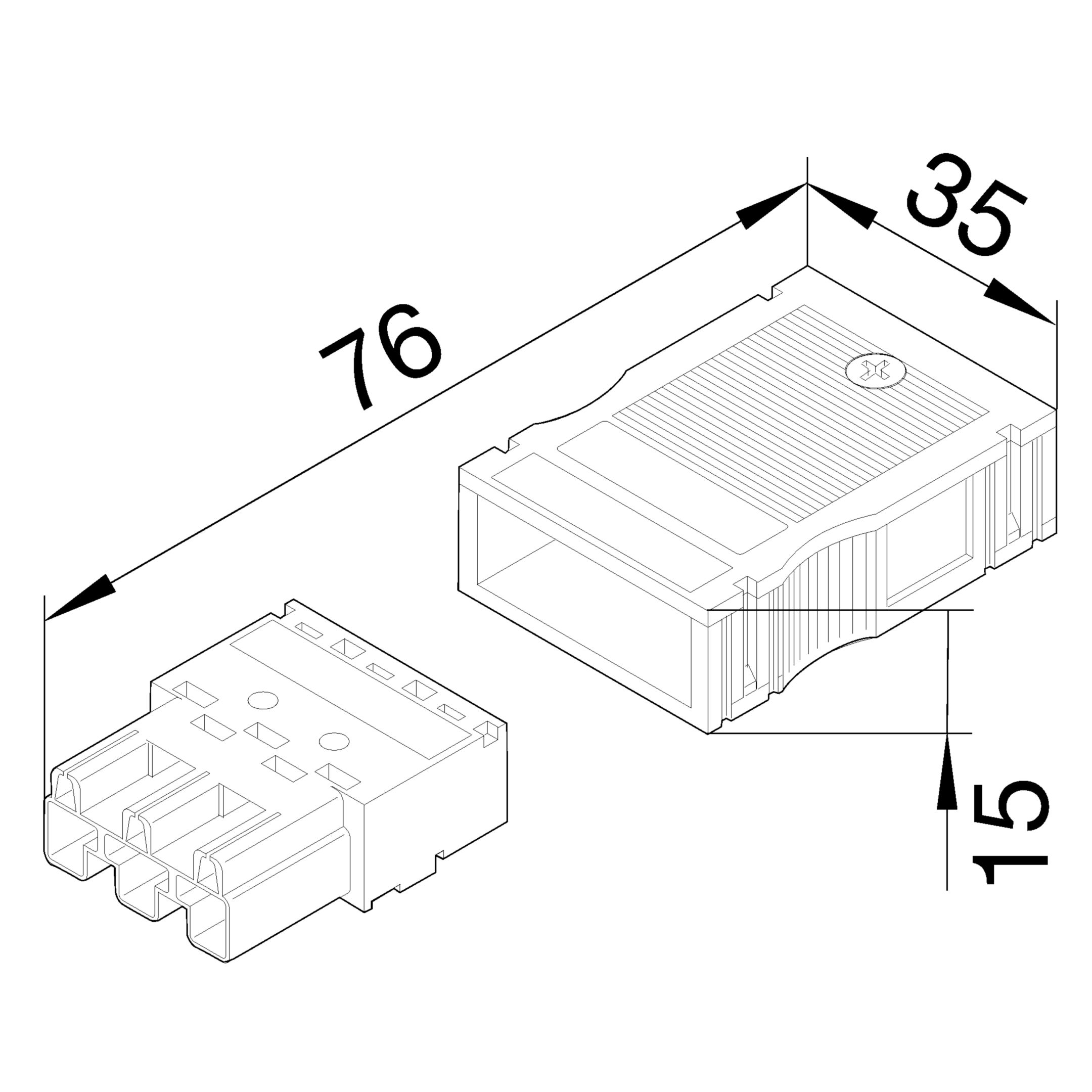

Height: | 15 mm |
Length: | 76 mm |
Rated surge voltage: | 4 kV |
Contact material: | CuSn |
Halogen free: | yes |
Housing material: | Polyamide (PA) |
Number of poles: | 3 |
Number of connections per pole: | 3 |
Pole codification: | L, N, PE |
Type of locking: | Integrated in plug-in connector |
Model: | Plug |
Rated voltage: | 250 V |
Pollution degree: | 3 |
Connection type: | Spring clamp connection |
Connection cross section (fine-strand): | 0.5 - 4 mm² |
Width: | 34.6 mm |
Connection cross section (solid-core): | 0.5 - 4 mm² |
Degree of protection (IP): | IP20 |
Continuity resistance: | 1 mΩ |
Surface treatment contacts: | Tinned |
