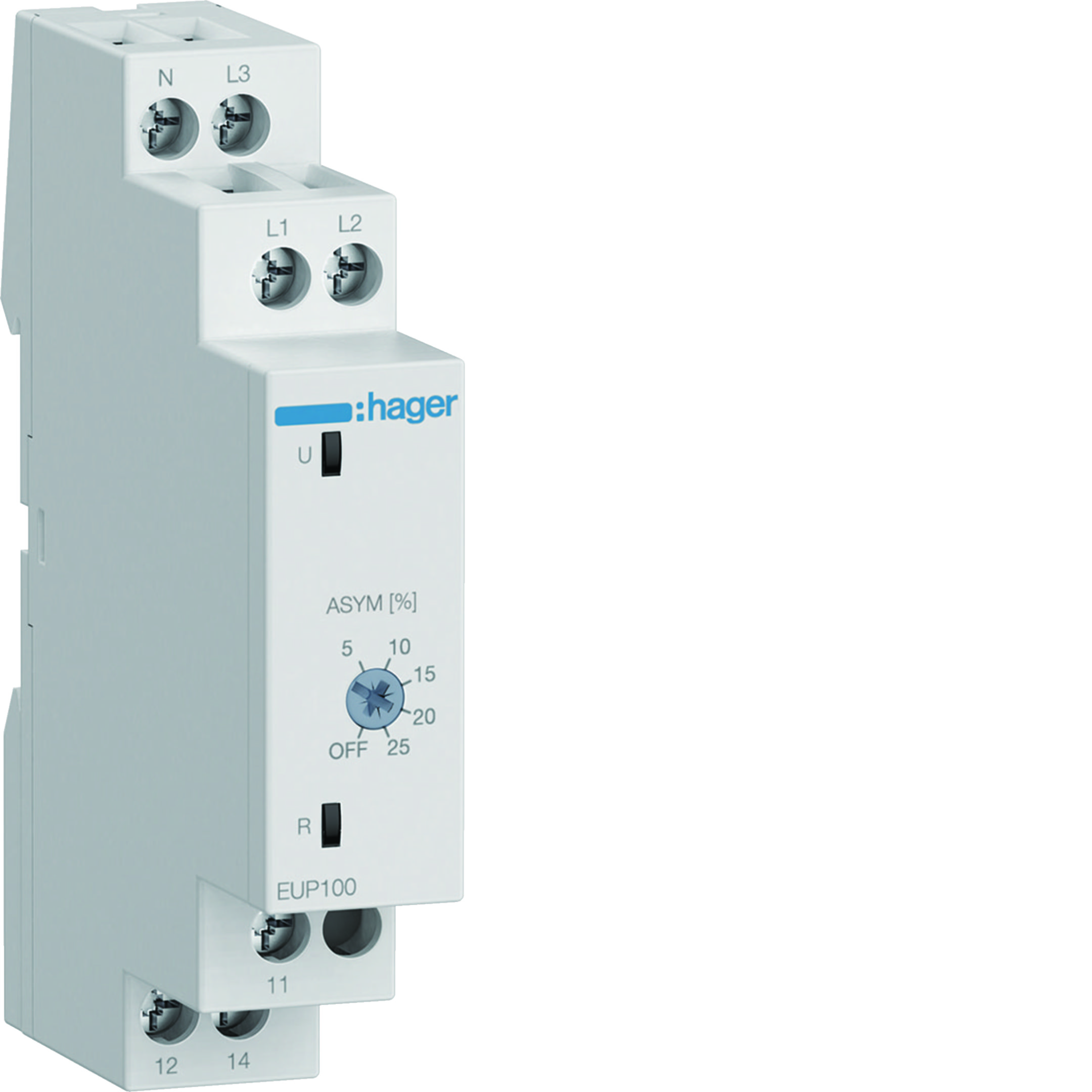

Przekaźnik kontroli faz i asymetrii 3-fazowy 1xNO/NC
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | EUP100 |
GTIN(EAN) | 3250615600561 |
Price unit | piece |
Catalog price | 873,30 zł (710,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Gross weight: | 75 g |
ETIM class: | Phase monitoring relay |
Voltage measuring range: | 161 - 520 V |
Rated control supply voltage AC 50 Hz: | 230 - 400 V |
Function over voltage detection: | no |
Max. permitted off-delay time: | 0.1 s |
Rated control supply voltage AC 60 Hz: | 230 - 400 V |
Min. adjustable off-delay time: | 0.1 s |
Height: | 87 mm |
With detachable clamps: | no |
Depth: | 65 mm |
Type of electric connection: | Screw connection |
Function under voltage detection: | no |
Width: | 17.5 mm |
Voltage type for actuating: | AC |
Number of contacts as change-over contact: | 1 |
Phase sequence monitoring: | yes |
Phase failure detection: | yes |
Phase imbalance monitoring: | yes |
