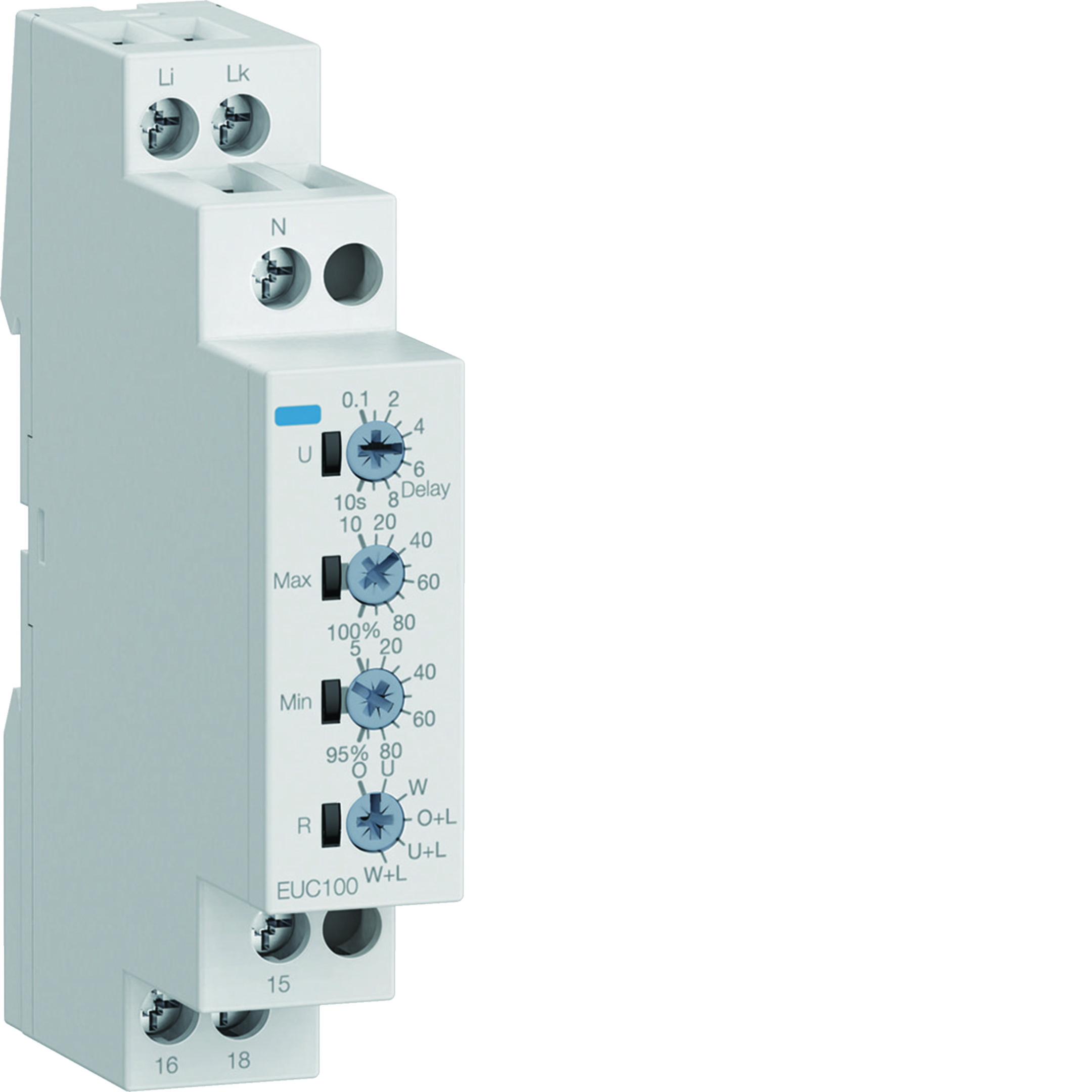

Przekaźnik kontroli prądu 1-fazowy 1x NC/NO
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | EUC100 |
GTIN(EAN) | 3250615600523 |
Price unit | piece |
Catalog price | 1 316,10 zł (1 070,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Gross weight: | 75 g |
ETIM class: | Current monitoring relay |
Width: | 17.5 mm |
Type of electric connection: | Screw connection |
Voltage type for actuating: | AC |
External current transformer: | yes |
Single-phase under current possible: | yes |
Height: | 87 mm |
Three-phase under current possible: | no |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Max. permitted off-delay time: | 10 s |
Three-phase overcurrent possible: | no |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Min. adjustable off-delay time: | 0.1 s |
Depth: | 65 mm |
Single-phase overcurrent possible: | yes |
With detachable clamps: | no |
Single-phase hysteresis possible: | yes |
Three-phase hysteresis possible: | no |
Contains function DC-voltage under current: | no |
Contains function DC-voltage overcurrent: | no |
Function DC-current hysteresis: | no |
Current measuring range: | 0.5 - 10 A |
Number of contacts as change-over contact: | 1 |
