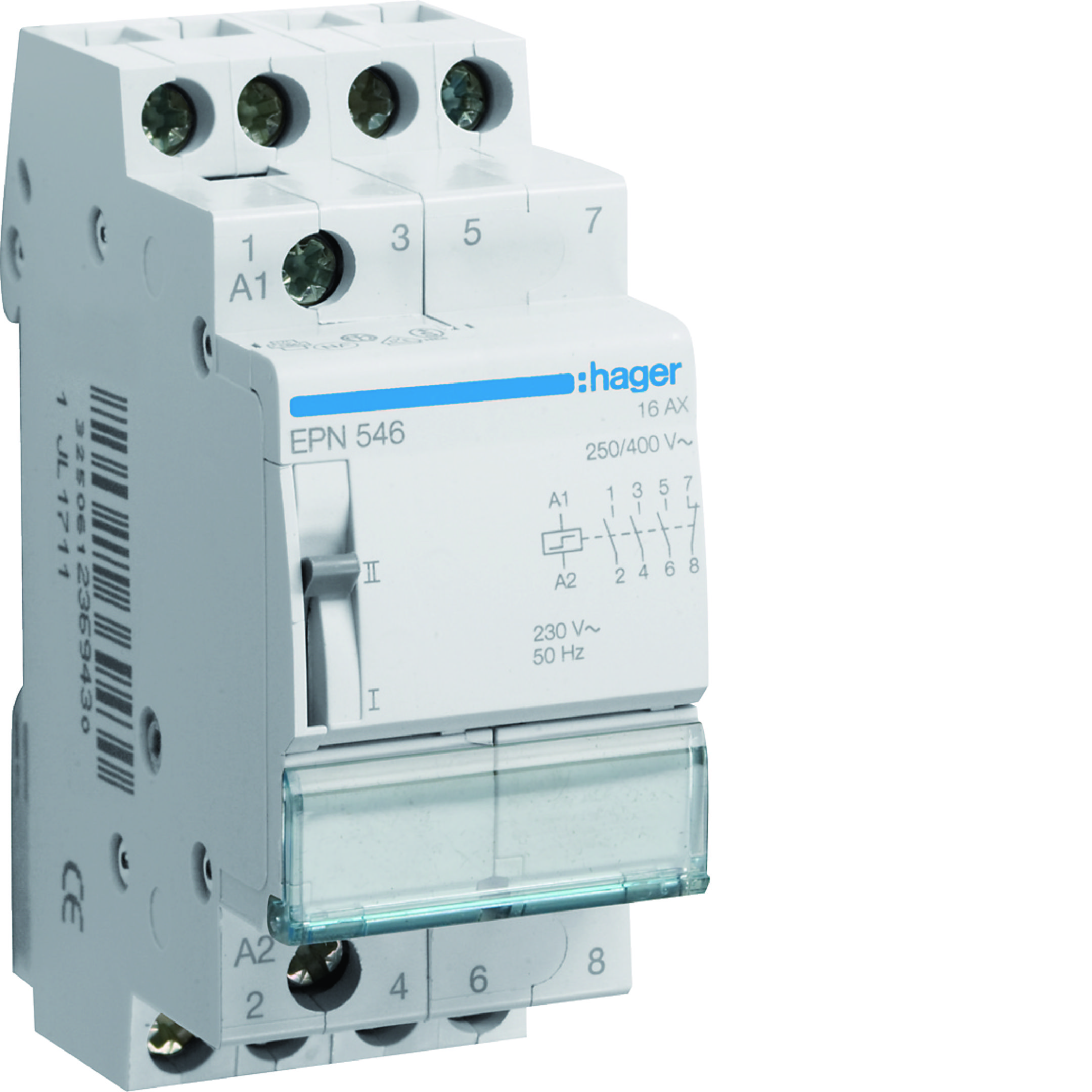

Przekaźnik bistabilny 230VAC/110VDC 3NO+1NC 16A
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | EPN546 |
GTIN(EAN) | 3250612369430 |
Price unit | piece |
Catalog price | 373,92 zł (304,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 300 g |
ETIM class: | Latching relay |
Rated switch current: | 16 A |
Max. load fluorescent lamp: | 800 VA |
Width in number of modular spacings: | 35 |
Built-in depth: | 63 mm |
Mounting method: | DIN rail |
Control voltage 2: | 110 - 110 V |
Max. switching current (cos phi = 0.6): | 16 A |
Type of control voltage 1: | AC |

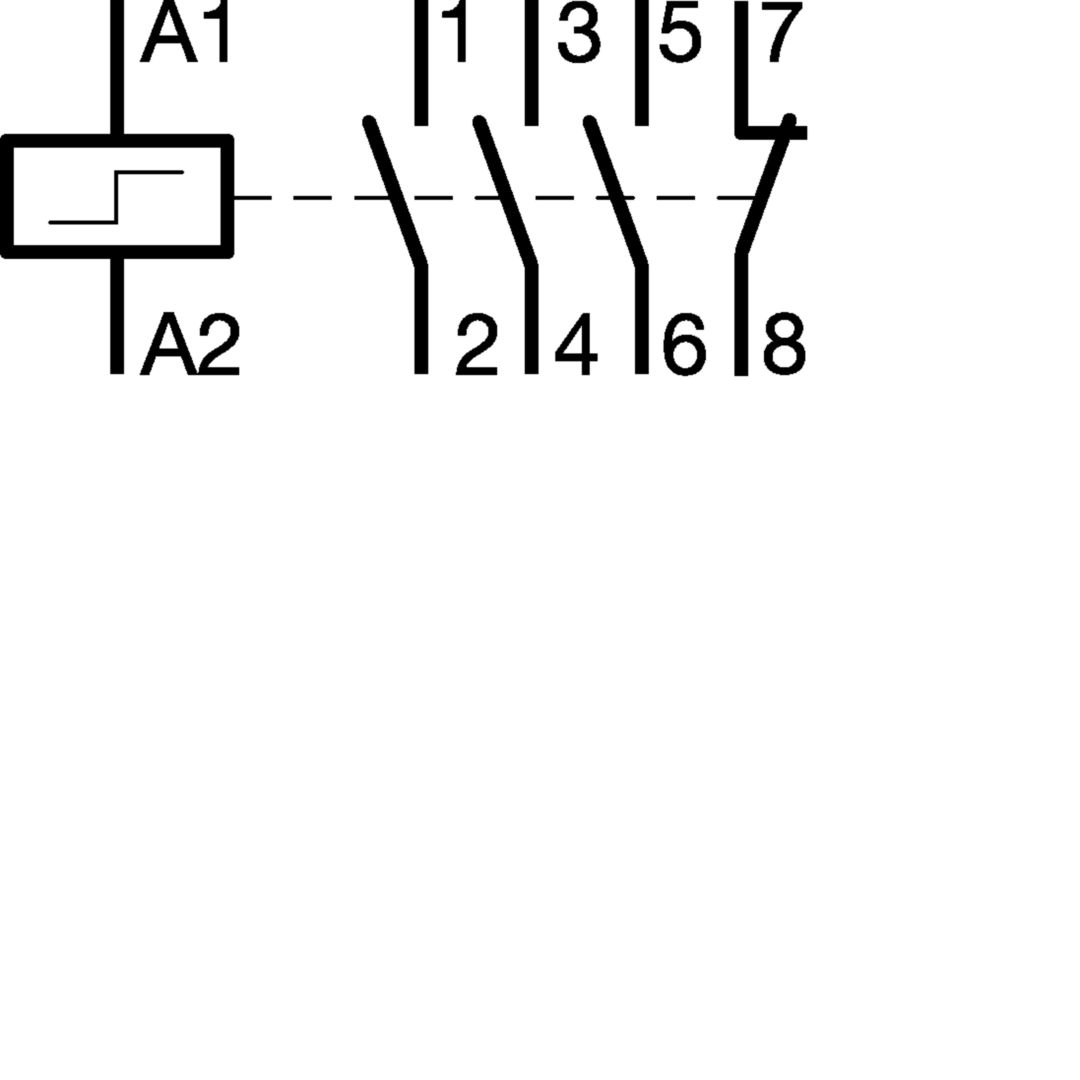

Number of contacts as normally open contact: | 3 |
Control voltage 1: | 230 - 230 V |
Type of control voltage 2: | DC |
Supply voltage: | 250 - 400 V |
Voltage type (supply voltage): | AC |
Number of contacts as change-over contact: | 0 |
Frequency control voltage 1: | 50 - 60 Hz |
Frequency control voltage 2: | 50 - 60 Hz |
Max. incandescent lamp load: | 1800 W |
Number of contacts as normally closed contact: | 1 |
Max. load fluorescent lamp (parallel compensated): | 900 VA |
Function: | Mechanical switch |
Suitable for manual operation: | yes |
Max. load fluorescent lamp (Duo circuit): | 1600 VA |
