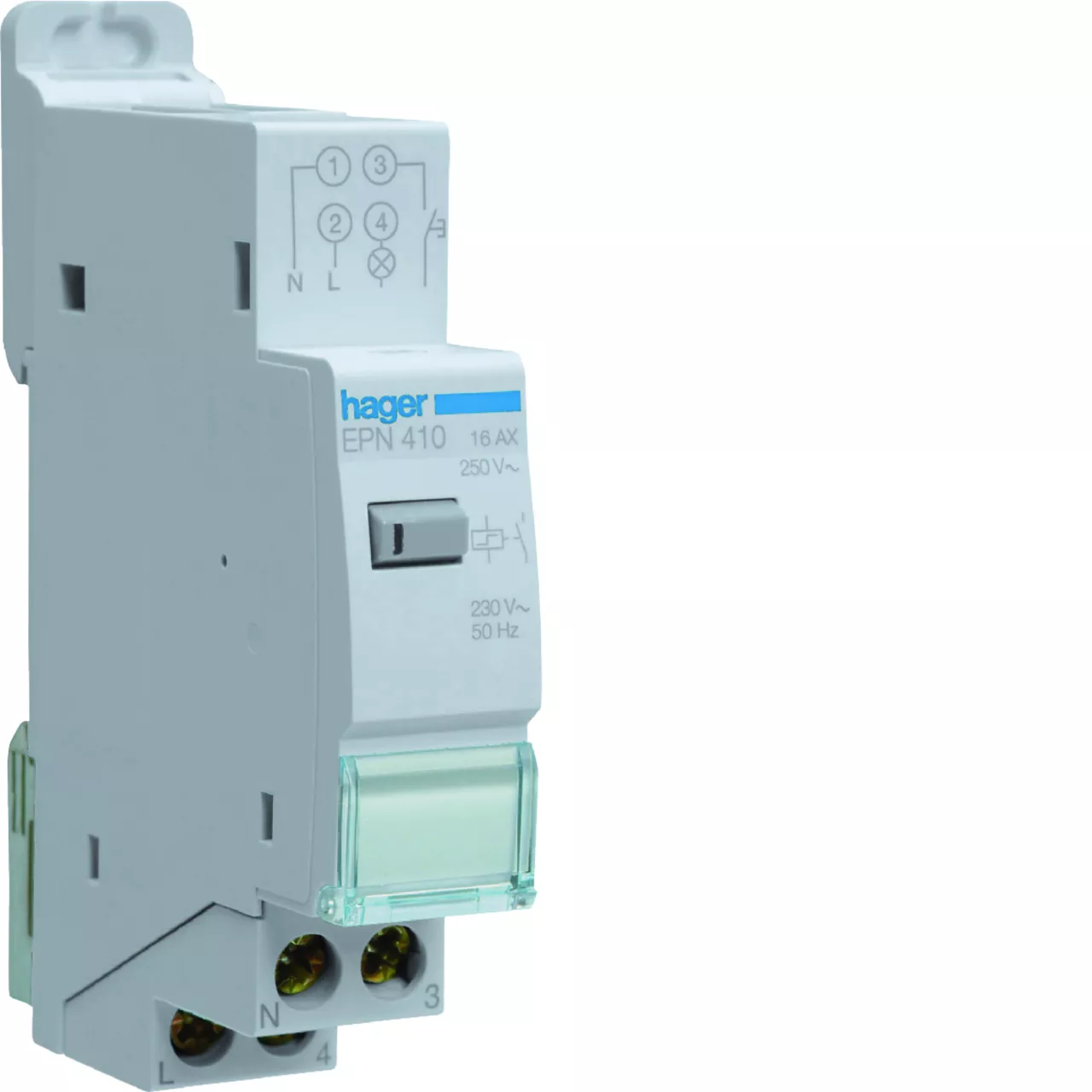

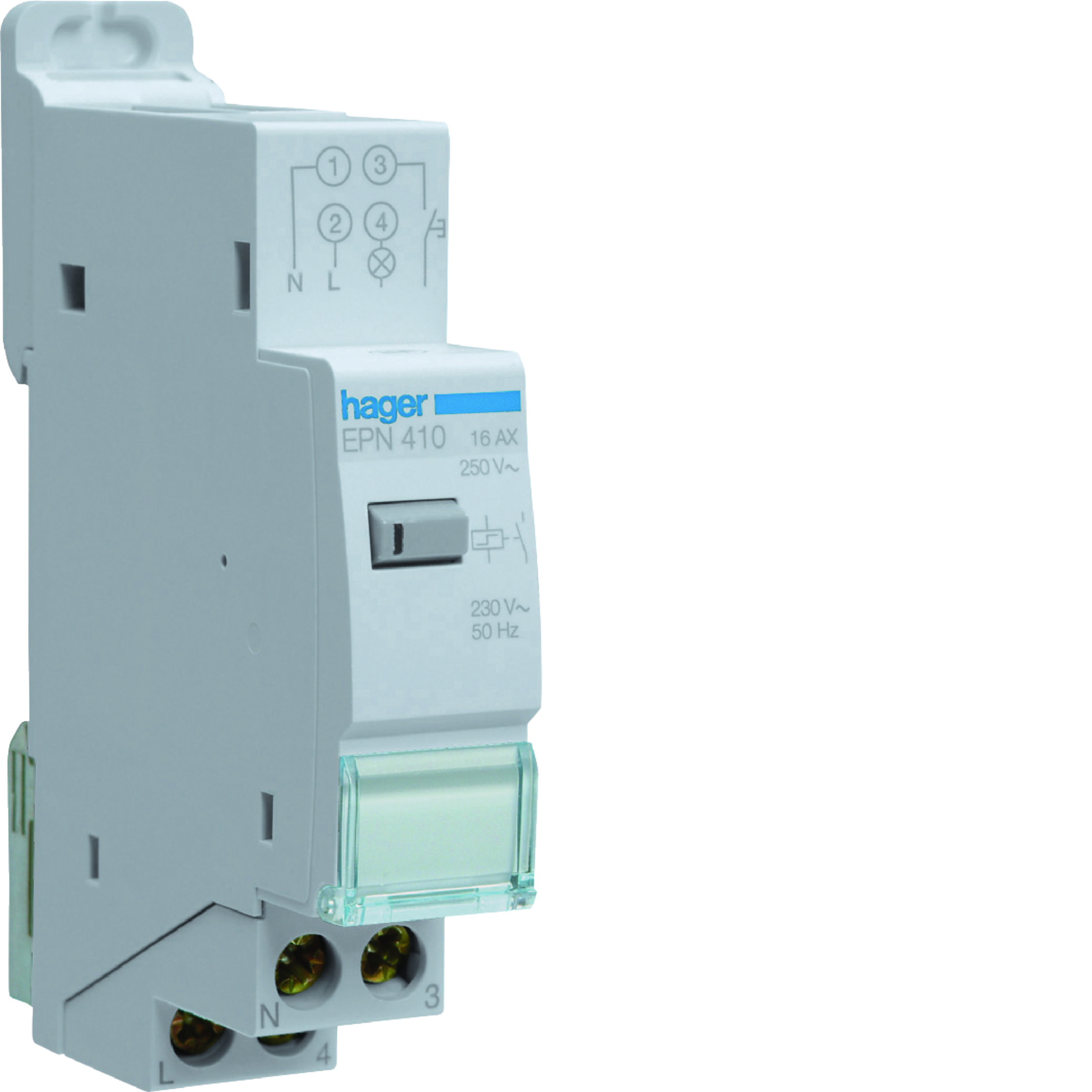

Przekaźnik bistabilny elektroniczny 1NO 230V 16A
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | EPN410 |
| GTIN(EAN) | 3250612369287 |
| Price unit | piece |
| Catalog price | 686,34 zł (558,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 103 g |
| Country of origin | Chiny |
| ETIM class: | Latching relay |
| Rated switch current: | 16 A |
| Max. load fluorescent lamp: | 280 VA |
| Width in number of modular spacings: | 18 |
| Built-in depth: | 60 mm |
| Mounting method: | DIN rail |
| Max. switching current (cos phi = 0.6): | 16 A |
| Type of control voltage 1: | AC |
| Number of contacts as normally open contact: | 1 |
| Control voltage 1: | 230 - 230 V |
| Type of control voltage 2: | AC |
| Supply voltage: | 250 - 250 V |
| Voltage type (supply voltage): | AC |
| Number of contacts as change-over contact: | 0 |
| Frequency control voltage 1: | 50 - 60 Hz |
| Frequency control voltage 2: | 50 - 60 Hz |
| Max. incandescent lamp load: | 1 500 W |
| Number of contacts as normally closed contact: | 0 |
| Max. load fluorescent lamp (Duo circuit): | 600 VA |
| Max. load fluorescent lamp (parallel compensated): | 300 VA |
| Function: | Electronic switch |
