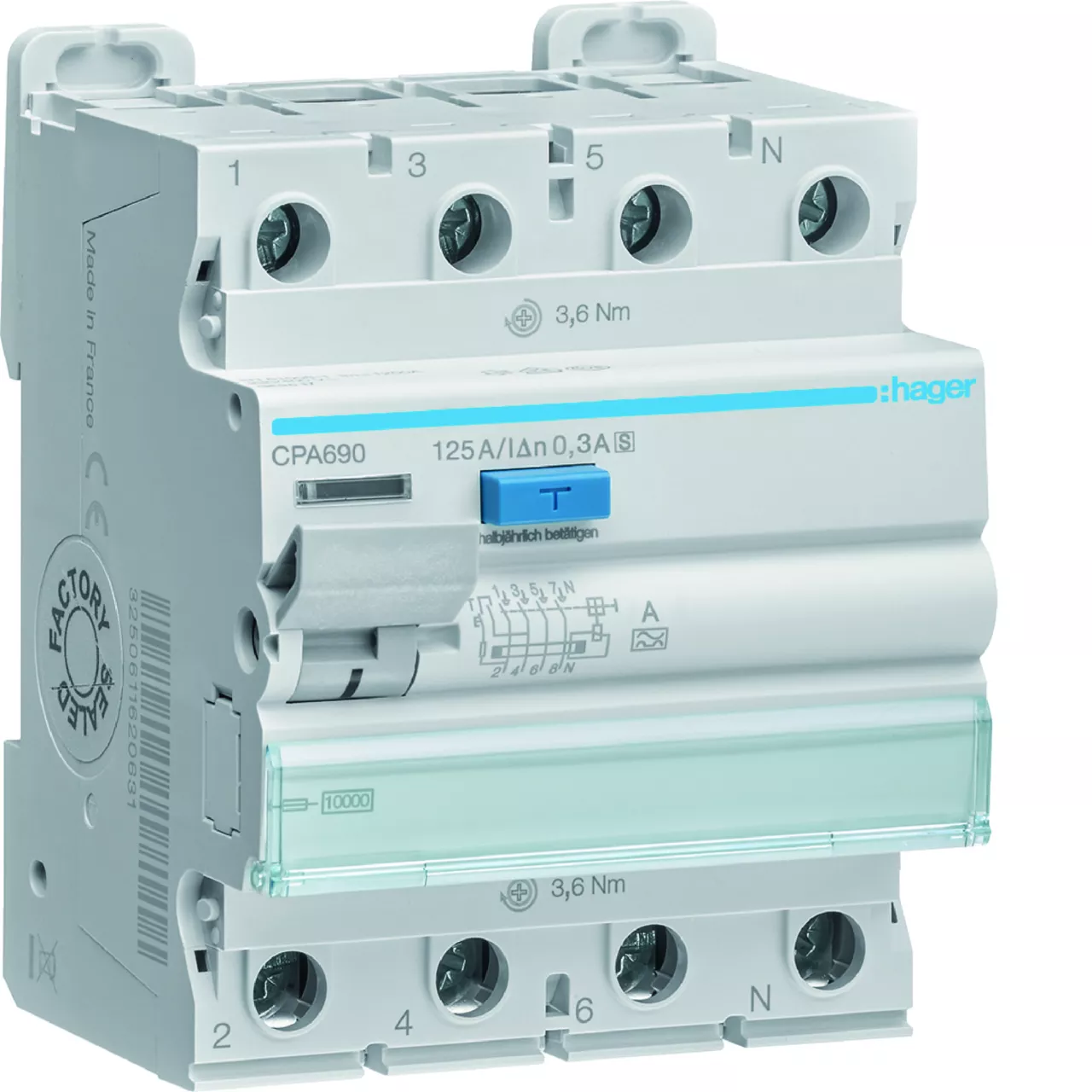

RCCB Wyłącznik różnicowoprądowy 3P+N 125A 300mA 10kA A S
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | CPA690 |
GTIN(EAN) | 3250611624431 |
Price unit | piece |
Catalog price | 2 017,20 zł (1 640,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 396 g |
Country of origin | Polska |
ETIM class: | Residual current circuit breaker (RCCB) |
Rated current: | 125 A |
Short-circuit breaking capacity (Icw): | 10 kA |
Rated fault current: | 0.3 A |
Leakage current type: | A |
Explosion-proof: | no |
Short-time delayed tripping: | yes |
Connectable conductor cross section solid-core: | 1 - 50 mm² |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated voltage: | 415 V |
Additional equipment possible: | yes |
Frequency: | 50 Hz |
Pollution degree: | 2 |
Mounting method: | DIN rail |
With interlocking device: | yes |
Built-in depth: | 70 mm |
Rated insulation voltage Ui: | 500 V |
Surge current capacity: | 5 kA |
Selective protection: | yes |
Number of poles: | 4 |
Voltage type: | AC |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 4 |
RAL-number (similar): | 7005 |
Power loss: | 29.20 W |
Ambient temperature during operating: | -25 - 40 °C |
