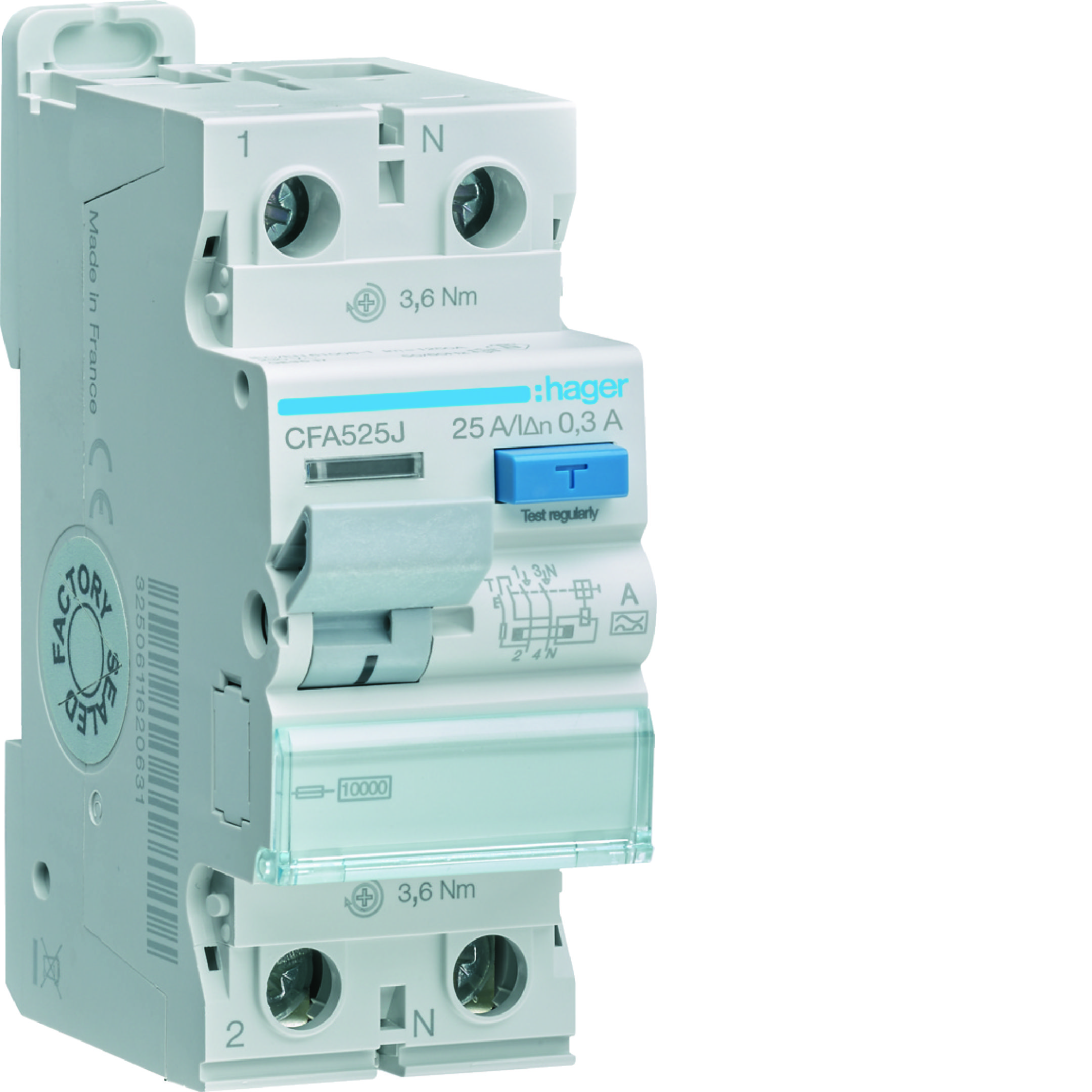

RCCB Wyłącznik różnicowoprądowy 1P+N 25A 300mA 10kA A
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | CFA525J |
GTIN(EAN) | 3250611622628 |
Price unit | piece |
Catalog price | 452,64 zł (368,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
Additional features:
Information | Value |
---|---|
Gross weight: | 238 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Rated current: | 25 A |
Selective protection: | no |
Short-time delayed tripping: | no |
With interlocking device: | yes |
Short-circuit breaking capacity (Icw): | 10 kA |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Number of poles: | 2 |
Built-in depth: | 70 mm |
Mounting method: | DIN rail |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Rated voltage: | 230 V |
Surge current capacity: | 3 kA |
Rated insulation voltage Ui: | 500 V |
Frequency: | 50/60 Hz |
Rated fault current: | 0.3 A |
Rated impulse withstand voltage Uimp: | 4 kV |
Width in number of modular spacings: | 2 |
Pollution degree: | 2 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 70 °C |
Leakage current type: | A |
Additional equipment possible: | yes |
Explosion-proof: | no |
Voltage type: | AC |
