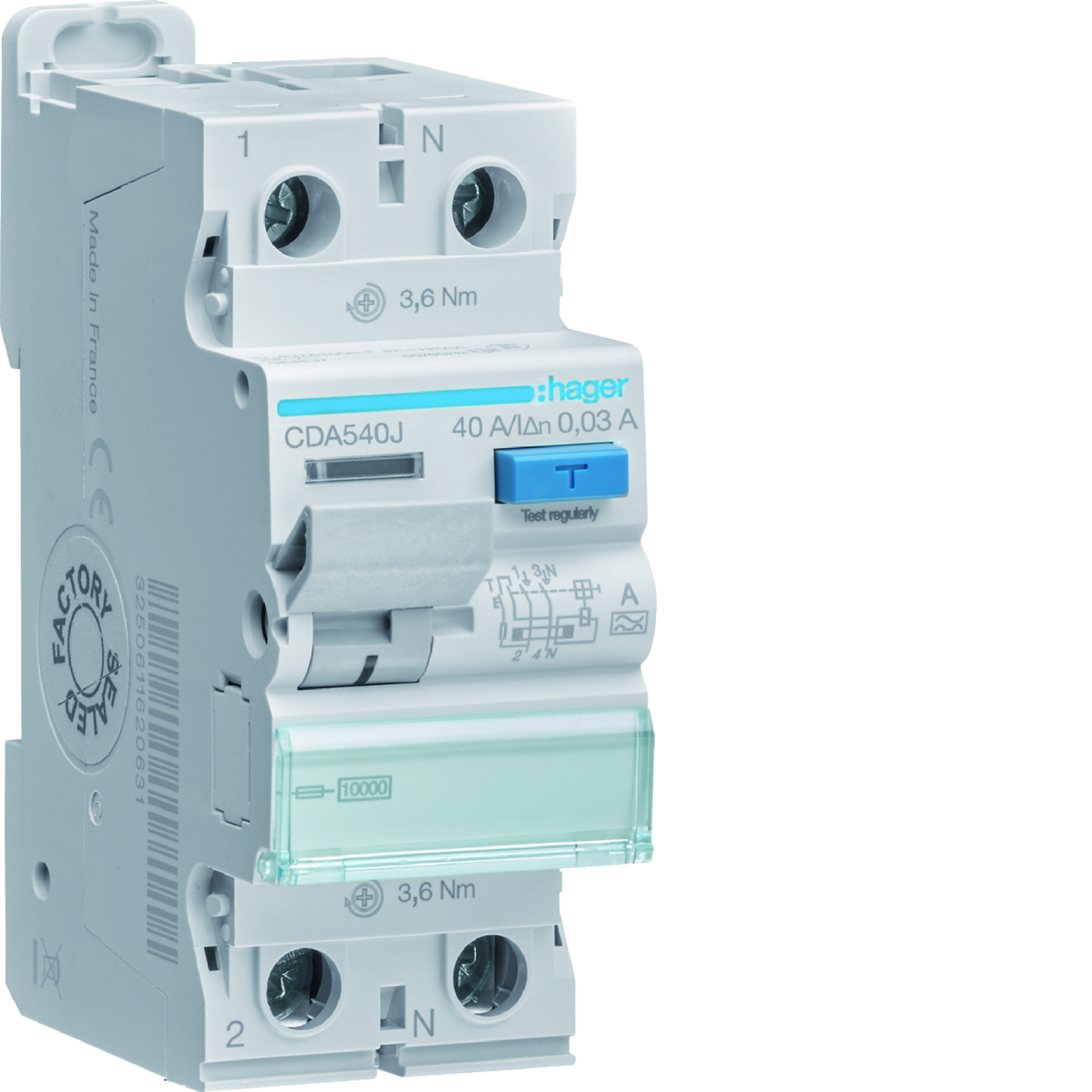

RCCB Wyłącznik różnicowoprądowy 1P+N 40A 30mA 10kA A
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | CDA540J |
| GTIN(EAN) | 3250611622406 |
| Price unit | piece |
| Catalog price | 682,65 zł (555,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 235 g |
| Country of origin | Polska |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Rated current: | 40 A |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| With interlocking device: | yes |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Connectable conductor cross section multi-wired: | 1 - 16 mm² |
| Number of poles: | 2 |
| Built-in depth: | 70 mm |
| Mounting method: | DIN rail |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
| Rated voltage: | 230 V |
| Surge current capacity: | 3 kA |
| Rated insulation voltage Ui: | 500 V |
| Frequency: | 50 Hz |
| Rated fault current: | 0.03 A |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Width in number of modular spacings: | 2 |
| Pollution degree: | 2 |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -25 - 70 °C |
| Leakage current type: | A |
| Additional equipment possible: | yes |
| Explosion-proof: | no |
| Voltage type: | AC |
| RAL-number (similar): | 7005 |
| Power loss: | 3.31 W |
