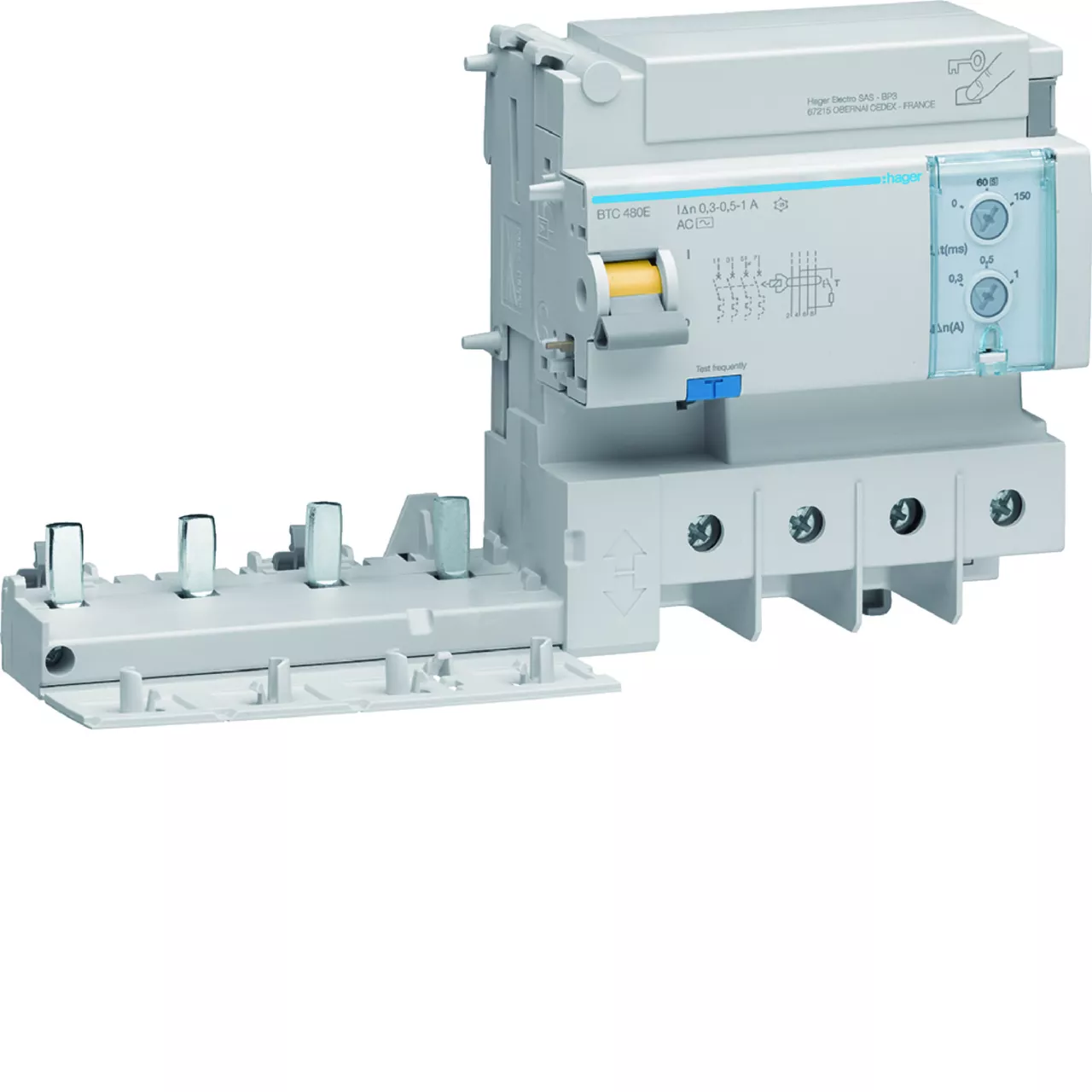

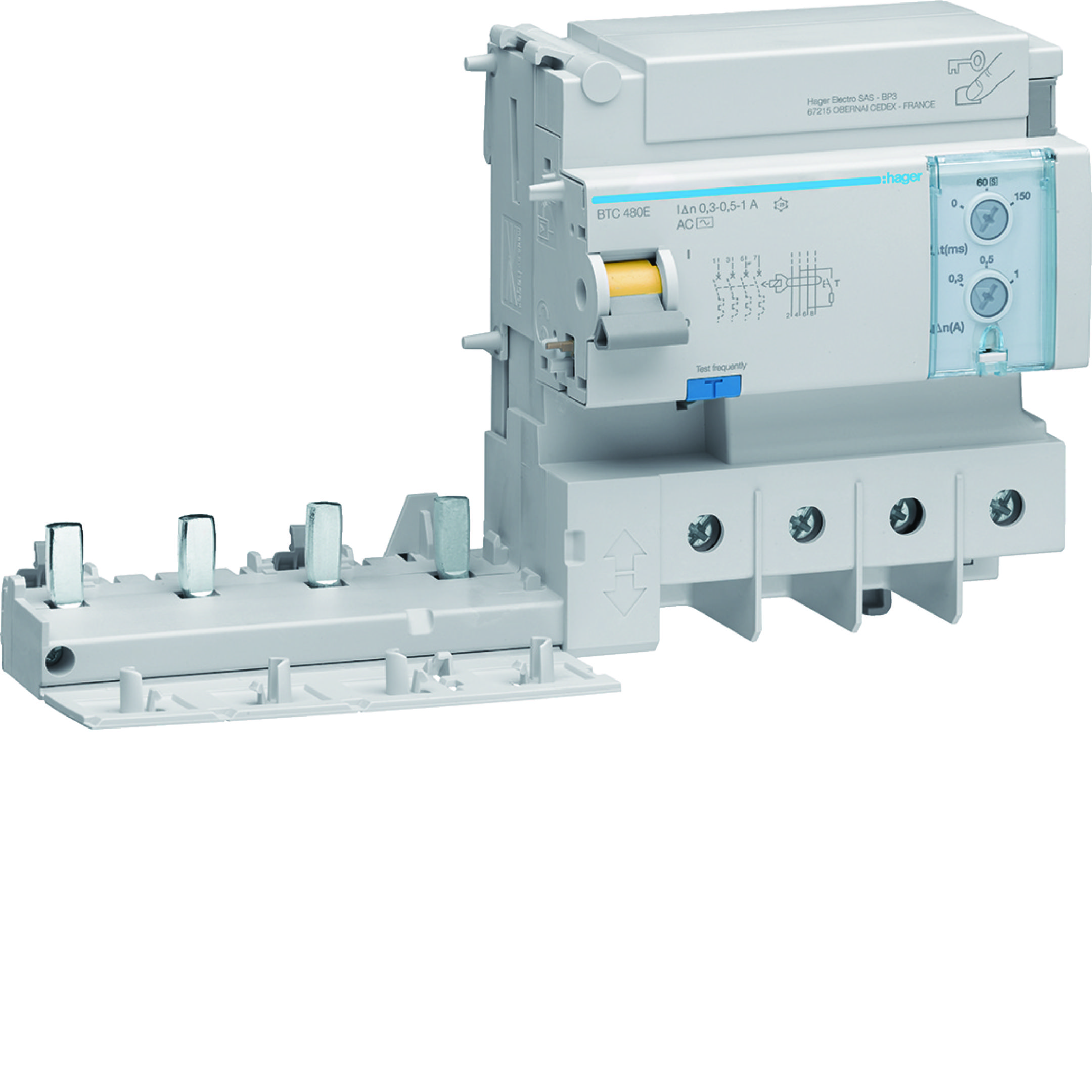

Blok różnicowoprądowy do MCB serii HMxxxx 3P+N 125A/0,3-1A Typ AC
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | BTC480E |
GTIN(EAN) | 3250611500056 |
Price unit | piece |
Catalog price | 1 389,90 zł (1 130,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 897 g |
Country of origin | Francja |
ETIM class: | Residual current circuit breaker (RCCB) module |
Nominal current: | 125 A |
With interlocking device: | yes |
Rated fault current adjustable: | yes |
Connectable conductor cross section multi-wired: | 10 - 50 mm² |
Delay adjustable: | yes |
Number of poles: | 4 |
Max. delay time: | 150 ms |
Connectable conductor cross section solid-core: | 10 - 70 mm² |
Anti-nuisance tripping version: | no |
Surge current capacity: | 3 kA |
Nominal voltage: | 240 - 415 V |
Rated insulation voltage Ui: | 500 V |
Frequency: | 50 Hz |
Rated fault current: | 0.3 - 1 A |
Rated impulse withstand voltage Uimp: | 6 kV |
Pollution degree: | 3 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 60 °C |
Leakage current type: | AC |
Power loss: | 15 W |
