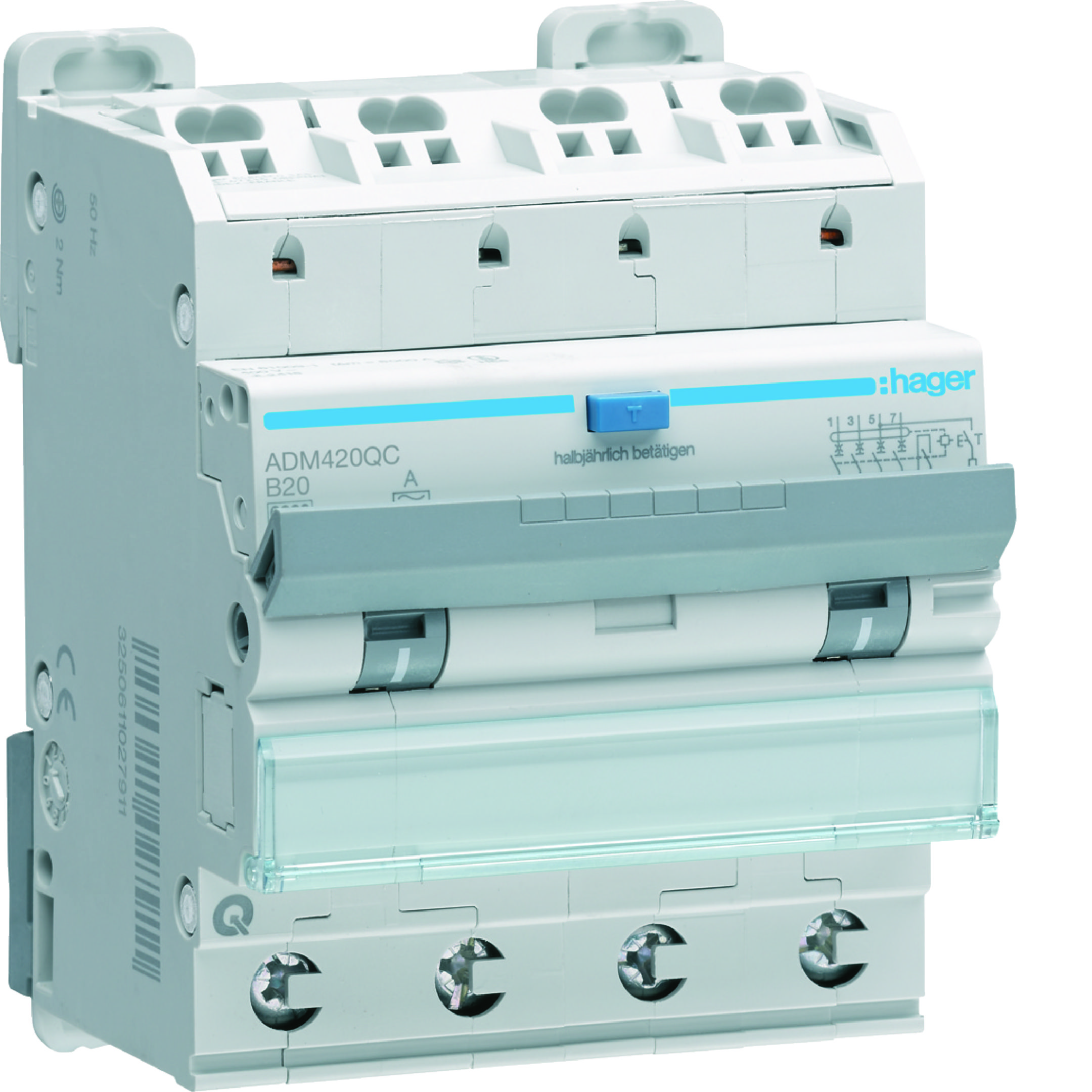

RCBO Wyłącznik różnicowoprądowy z członem nadprądowym 4P 6kA B 20A/30mA A QC/QB
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | ADM420QC |
| GTIN(EAN) | 3250611027959 |
| Price unit | piece |
| Catalog price | 1 783,50 zł (1 450,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 435 g |
| Country of origin | Polska |
| ETIM class: | Earth leakage circuit breaker |
| Rated current: | 20 A |
| With interlocking device: | yes |
| Rated insulation voltage Ui: | 500 V |
| Voltage type: | AC |
| Frequency: | 50 Hz |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated fault current: | 0.03 A |
| Ambient temperature during operating: | -25 - 40 °C |
| Leakage current type: | A |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Over voltage category: | 3 |
| Disconnection characteristic: | Undelayed |
| Number of protected poles: | 4 |
| Release characteristic: | B |
| Number of poles (total): | 4 |
| Built-in depth: | 70 mm |
| Rated voltage: | 400 V |
| Anti-nuisance tripping version: | no |
| Surge current capacity: | 3 kA |
| Concurrently switching neutral conductor: | no |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 4 |
| Current limiting class: | 3 |
| Degree of protection (IP): | IP20 |
| Flush-mounted installation: | yes |
| Power loss: | 11.7 W |
