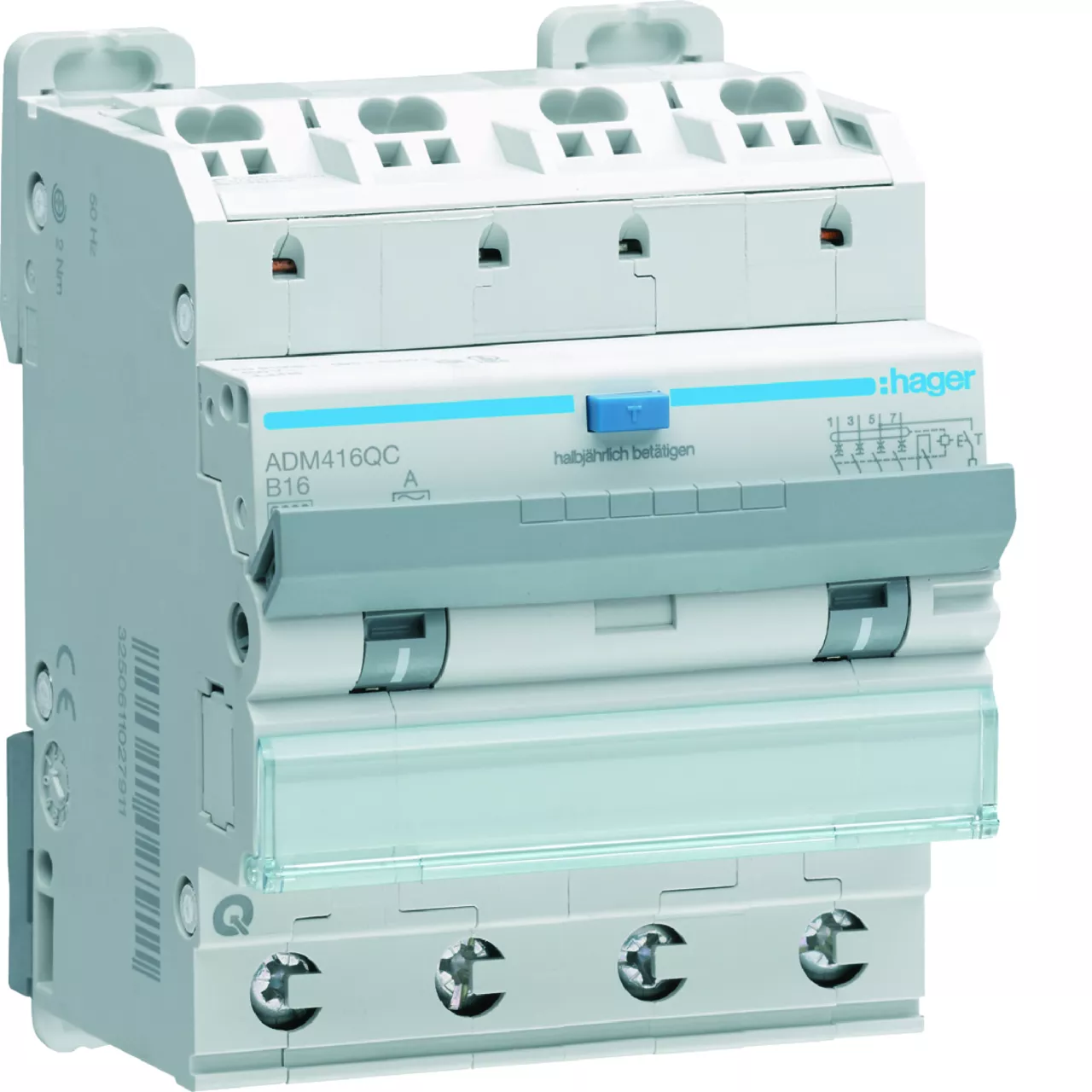

RCBO Wyłącznik różnicowoprądowy z członem nadprądowym 4P 6kA B 16A/30mA A QC/QB
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | ADM416QC |
GTIN(EAN) | 3250611027942 |
Price unit | piece |
Catalog price | 1 746,60 zł (1 420,00 zł + 23% VAT) |
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Kup produkty marki HAGER quickconnect i otrzymaj jedną z nagród!
Kup produkty marki HAGER quickconnect za min. 1000 zł netto i otrzymaj jedną z nagród!
Additional features:
Information | Value |
---|---|
Gross weight: | 432 g |
ETIM class: | Earth leakage circuit breaker |
Rated current: | 16 A |
With interlocking device: | yes |
Rated insulation voltage Ui: | 500 V |
Voltage type: | AC |
Frequency: | 50 Hz |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated fault current: | 0.03 A |
Ambient temperature during operating: | -25 - 40 °C |
Leakage current type: | A |
Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
Over voltage category: | 3 |
Disconnection characteristic: | Undelayed |
Number of protected poles: | 4 |
Release characteristic: | B |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Number of poles (total): | 4 |
Built-in depth: | 70 mm |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Rated voltage: | 400 V |
Anti-nuisance tripping version: | no |
Surge current capacity: | 3 kA |
Concurrently switching neutral conductor: | no |
Pollution degree: | 2 |
Width in number of modular spacings: | 4 |
Current limiting class: | 3 |
Flush-mounted installation: | yes |
Degree of protection (IP): | IP2X |
Buy online
Buy / order
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 13:13:42 |
Files to download: | |
External links: |
