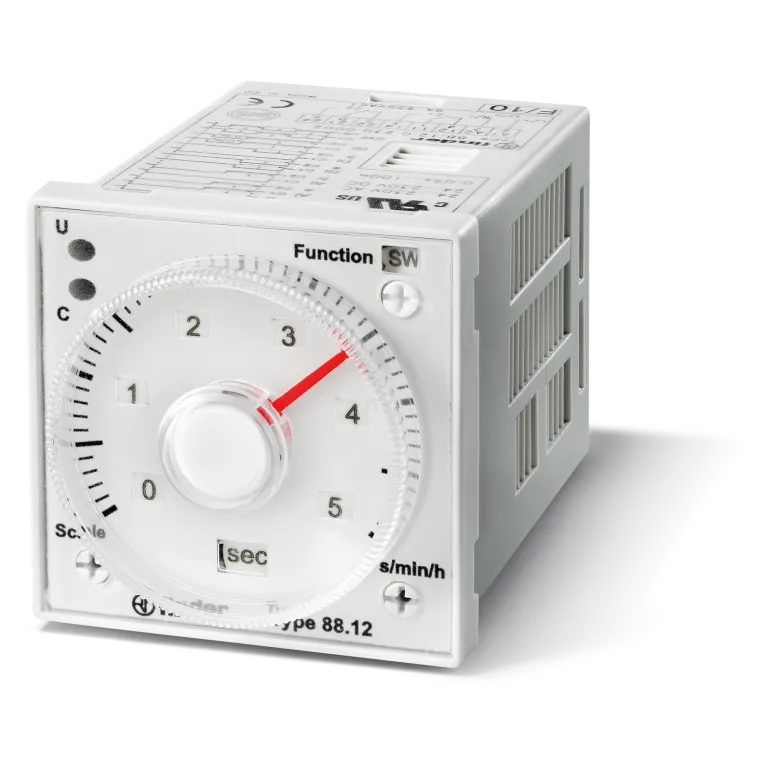

Przekaźnik czasowy wielofunkcyjny panelowy lub do gniazd 2 P; 8A; 24…230V AC/DC; AI a, AI b, DI a, DI b, GI, SW
Information | Value |
---|---|
Supplier | FINDER Polska Sp. z o.o. |
Symbol | 881202300002 |
GTIN(EAN) | 8012823304472 |
Price unit | piece |
Catalog price | 553,80 zł (450,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 107 g |
ETIM class: | Timer relay |
Type of electric connection: | Plug-in connection |
Function delay-on energization: | yes |
Function delay on de-energization: | no |
Function floating contact on energization: | yes |
Function pulse shaping: | yes |
Function flashing, starting with pulse, fixed time: | no |
With plug-in socket: | yes |
Remote operation possible: | no |
Suitable as remote control: | no |
Pluggable on auxiliary contact block: | no |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage DC: | 230 - 230 V |
Voltage type for actuating: | AC/DC |
Number of outputs, undelayed, change-over contact: | 0 |
Number of outputs, delayed, change-over contact: | 2 |
Outputs, reversible delayed/undelayed: | yes |
With semiconductor output: | no |
Width: | 47.9 mm |
Time range: | 0.05 - 360000 s |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 0 |
Depth: | 77.5 mm |
Height: | 47.9 mm |
Nominal current: | 8 A |
Function floating contact on de-energization: | no |
Suitable for DIN rail (top hat rail) mounting: | no |
Function star-delta: | no |
Suitable for front mounting: | yes |
Clock function, starting with pulse, variable: | yes |
Clock function, starting with pause, variable: | no |
Function flashing, starting with pause, fixed time: | no |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-10-01 12:04:37 |
Files to download: |
