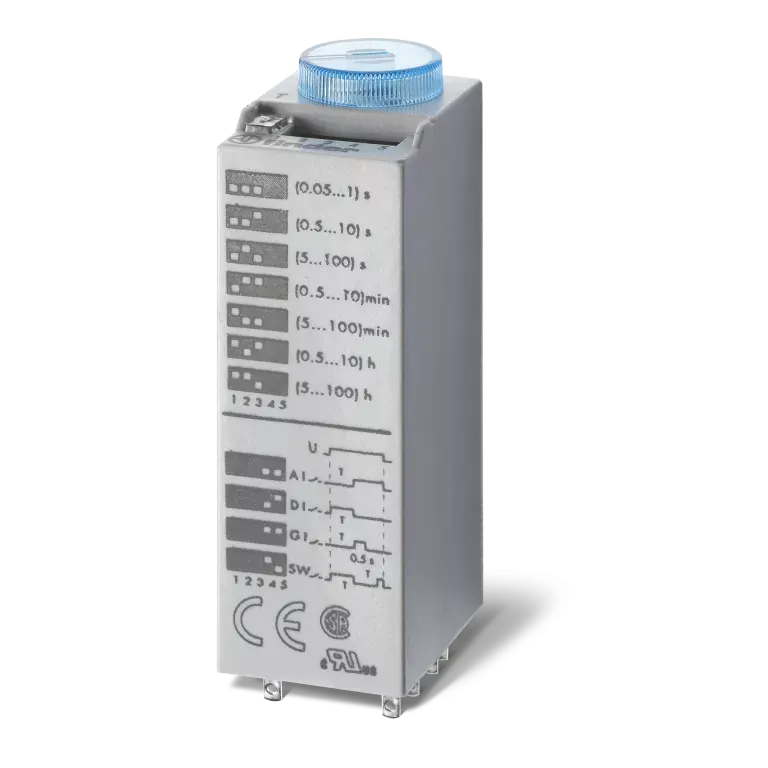

Przekaźnik czasowy do gniazd 4 P; 7A; 230…240V AC/DC; AI, DI, SW, GI
Information | Value |
---|---|
Supplier | FINDER Polska Sp. z o.o. |
Symbol | 850482400000 |
GTIN(EAN) | 8012823275895 |
Price unit | piece |
Catalog price | 337,75 zł (274,59 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 40 g |
ETIM class: | Timer relay |
Type of electric connection: | Plug-in connection |
Function delay-on energization: | yes |
Function floating contact on energization: | yes |
Function pulse shaping: | yes |
Function flashing, starting with pulse, fixed time: | no |
With plug-in socket: | yes |
Remote operation possible: | no |
Suitable as remote control: | no |
Pluggable on auxiliary contact block: | no |
Rated control supply voltage AC 50 Hz: | 240 - 240 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Voltage type for actuating: | AC |
Number of outputs, delayed, change-over contact: | 4 |
Outputs, reversible delayed/undelayed: | no |
With semiconductor output: | no |
Width: | 20,6 mm |
Height: | 63,1 mm |
Depth: | 27,7 mm |
Time range: | 0,05 - 360 000 s |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, change-over contact: | 0 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 0 |
Nominal current: | 10 A |
Function delay on de-energization: | no |
Suitable for DIN rail (top hat rail) mounting: | no |
Clock function, starting with pause, variable: | no |
Clock function, starting with pulse, variable: | yes |
Function flashing, starting with pause, fixed time: | no |
Suitable for front mounting: | no |
Function star-delta: | no |
Function floating contact on de-energization: | no |
