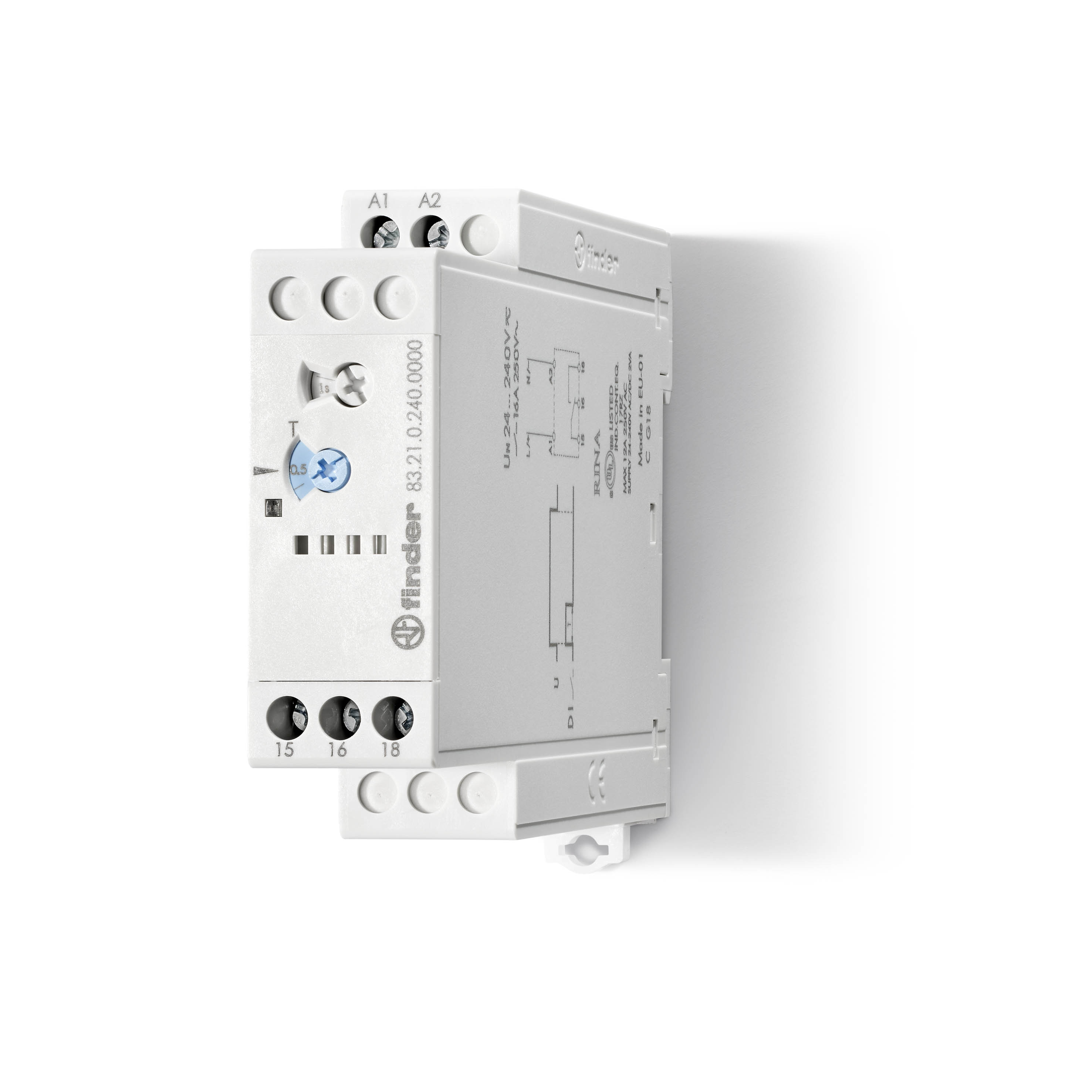

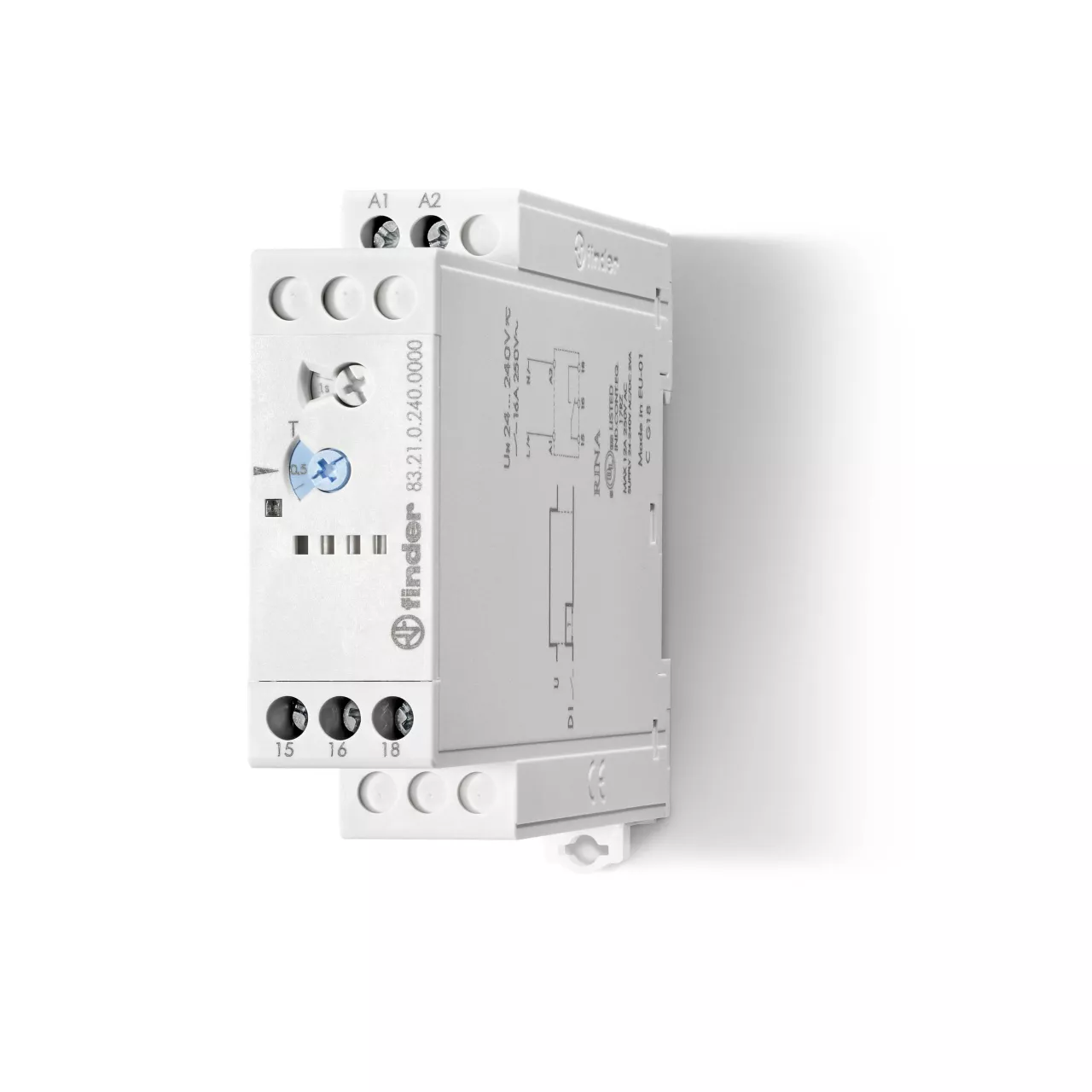

Przekaźnik czasowyj jednofynkcyjny 1 P; 16A; 24…240V AC/DC; DI
Information | Value |
---|---|
Supplier | FINDER Polska Sp. z o.o. |
Symbol | 832102400000 |
GTIN(EAN) | 8012823327990 |
Price unit | piece |
Catalog price | 318,24 zł (258,73 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 102 g |
ETIM class: | Timer relay |
Type of electric connection: | Screw connection |
With plug-in socket: | no |
Remote operation possible: | no |
Suitable as remote control: | no |
Pluggable on auxiliary contact block: | no |
Rated control supply voltage AC 50 Hz: | 240 - 240 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Voltage type for actuating: | AC/DC |
Time range: | 0.05 - 864000 s |
Number of outputs, delayed, change-over contact: | 1 |
Outputs, reversible delayed/undelayed: | no |
With semiconductor output: | no |
Width: | 22.5 mm |
Height: | 78.8 mm |
Depth: | 96 mm |
Function floating contact on energization: | yes |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, change-over contact: | 0 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 0 |
Rated control supply voltage DC: | 240 - 240 V |
Nominal current: | 16 A |
Function flashing, starting with pause, fixed time: | no |
Suitable for front mounting: | no |
Function pulse shaping: | no |
Function floating contact on de-energization: | no |
Function delay on de-energization: | no |
Function delay-on energization: | no |
Clock function, starting with pulse, variable: | no |
Clock function, starting with pause, variable: | no |
Function star-delta: | no |
Suitable for DIN rail (top hat rail) mounting: | yes |
Function flashing, starting with pulse, fixed time: | no |
