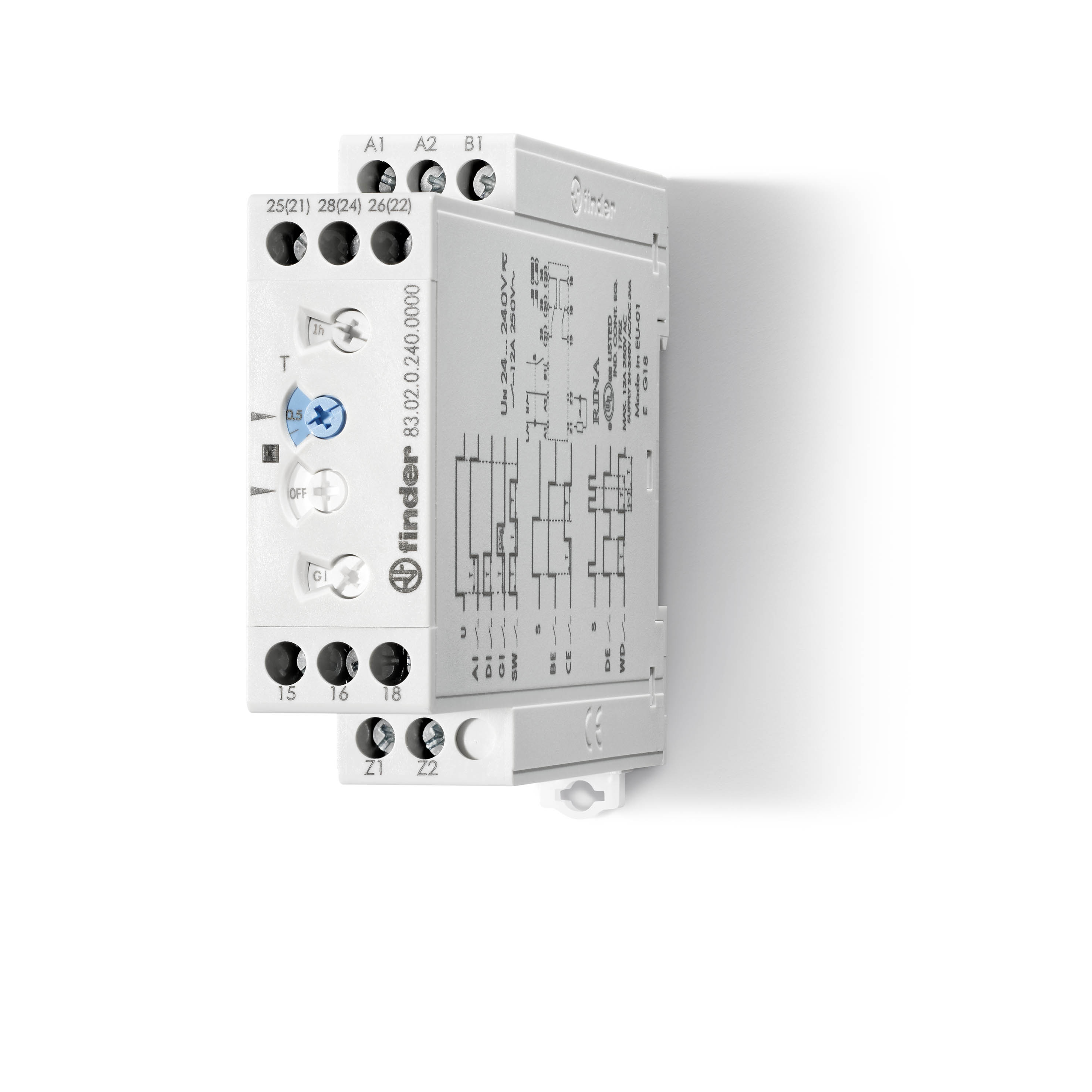

Przekaźnik czasowy wielofunkcyjny 2 P; 12A; 24…240V AC/DC; AI, DI, GI, SW, BE, CE, DE, WD
| Information | Value |
|---|---|
| Supplier | FINDER Polska Sp. z o.o. |
| Symbol | 830202400000 |
| GTIN(EAN) | 8012823358420 |
| Price unit | piece |
| Catalog price | 648,19 zł (526,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 128 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | no |
| Function floating contact on energization: | yes |
| Function pulse shaping: | no |
| Function flashing, starting with pulse, fixed time: | no |
| With plug-in socket: | no |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Pluggable on auxiliary contact block: | no |
| Rated control supply voltage AC 50 Hz: | 240 - 240 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Voltage type for actuating: | AC/DC |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| Outputs, reversible delayed/undelayed: | yes |
| With semiconductor output: | no |
| Width: | 22.5 mm |
| Height: | 78.8 mm |
| Depth: | 96 mm |
| Time range: | 0.05 - 864000 s |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Rated control supply voltage DC: | 240 - 240 V |
| Nominal current: | 12 A |
| Suitable for front mounting: | no |
| Function flashing, starting with pause, fixed time: | no |
| Clock function, starting with pulse, variable: | yes |
| Clock function, starting with pause, variable: | no |
| Function floating contact on de-energization: | yes |
| Function star-delta: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
