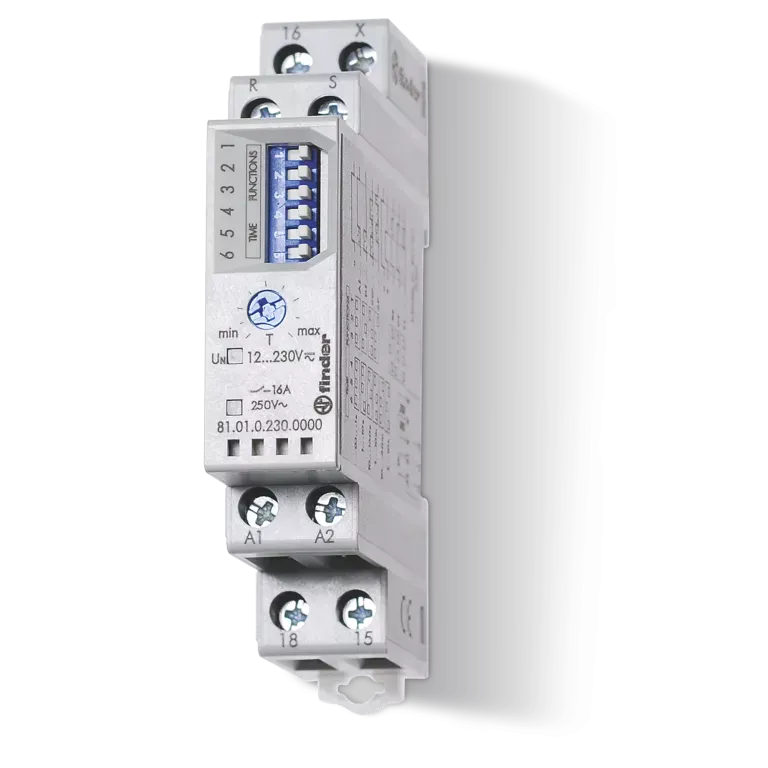

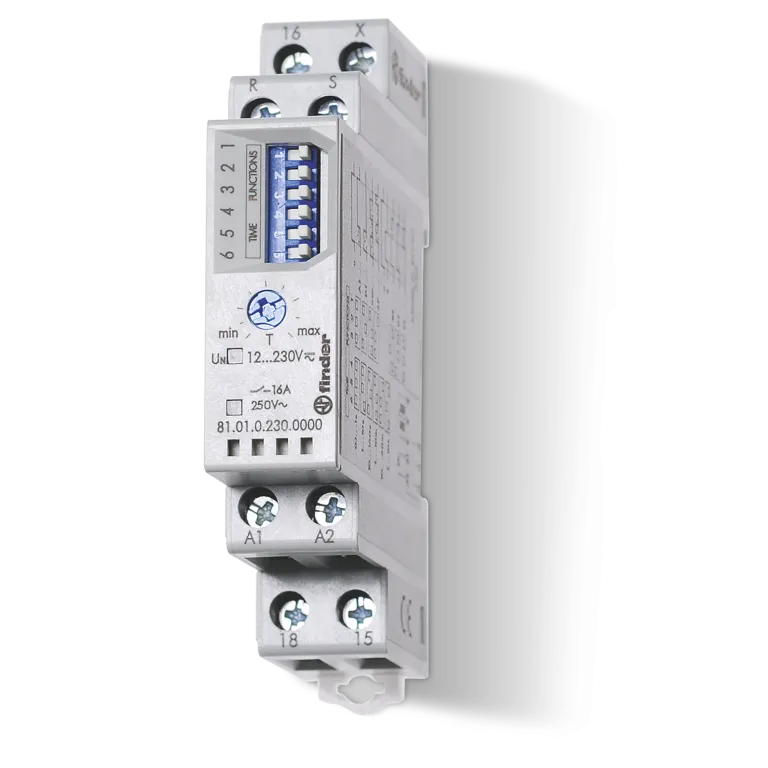

Przekaźnik czasowy wielofunkcyjny 1 P; 16A; 12...230V AC/DC; AI, DI, SW, SP, BE, DE, Eeb
| Information | Value |
|---|---|
| Supplier | FINDER Polska Sp. z o.o. |
| Symbol | 810102300000 |
| GTIN(EAN) | 8012823258027 |
| Price unit | piece |
| Catalog price | 506,27 zł (411,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 68 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function flashing, starting with pulse, fixed time: | no |
| With plug-in socket: | no |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage DC: | 230 - 230 V |
| Voltage type for actuating: | AC/DC |
| Number of outputs, delayed, change-over contact: | 1 |
| With semiconductor output: | yes |
| Width: | 17,5 mm |
| Height: | 84 mm |
| Depth: | 56,5 mm |
| Time range: | 0,1 - 36 000 s |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Nominal current: | 16 A |
| Function flashing, starting with pause, fixed time: | no |
| Suitable for front mounting: | yes |
| Function star-delta: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
Finder S.p.A. con unico socio
Via Drubiaglio 14, 10040 Almese, Włochy
tel: 0119346211 mail: finder.pl@findernet.com
www: findernet.com
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-03-28 13:11:18 |
| Files to download: |
