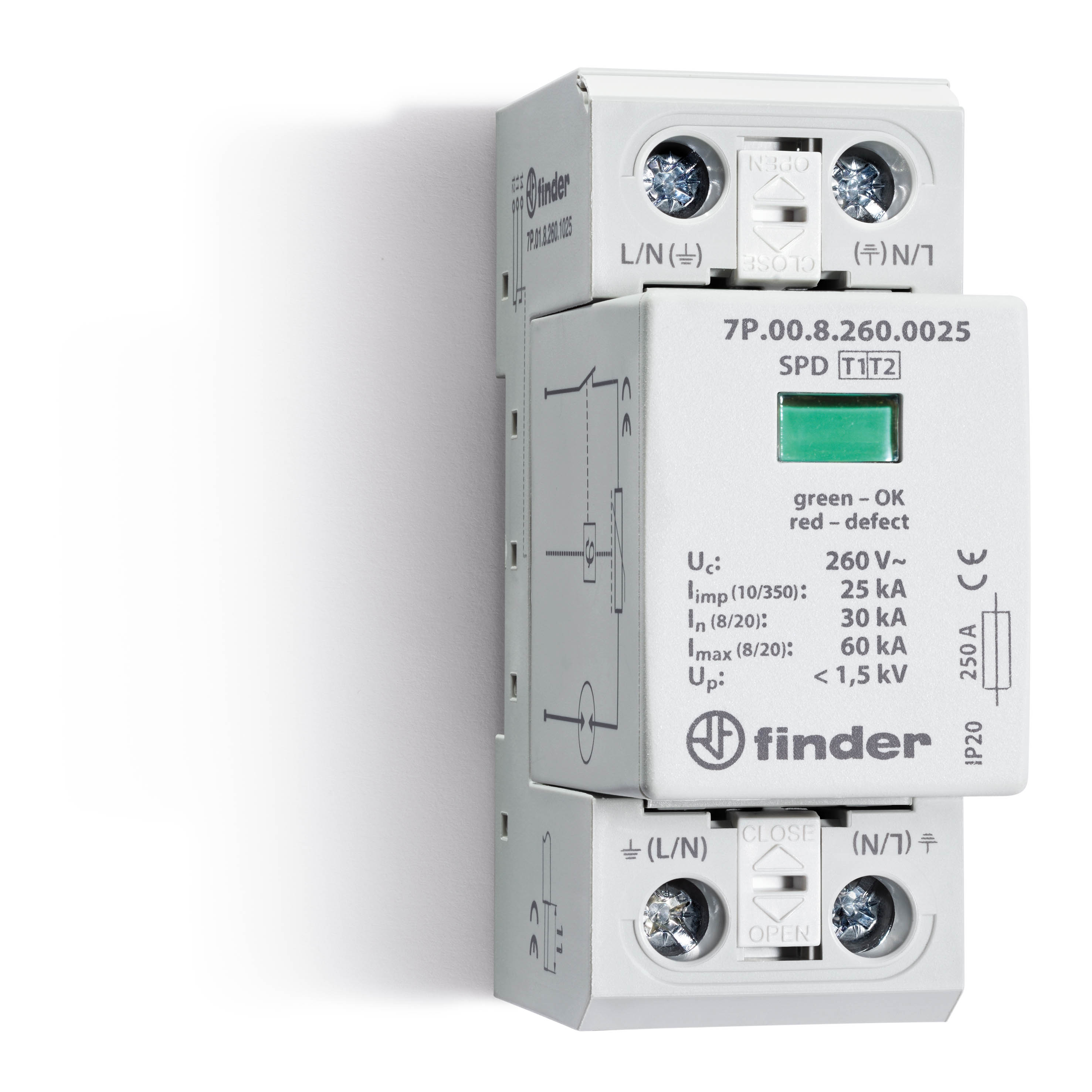

Ogranicznik przepięć SPD Typ 1+2. Kombinacja warystora i iskiernika. Max 260V AC, prąd udarowy impulsu 25kA, max prąd wyładowczy 60kA, napięciowy poziom ochrony 1,5kV, czas zadziałania 100ns, 7P.01.8.260.1025
| Information | Value |
|---|---|
| Supplier | FINDER Polska Sp. z o.o. |
| Symbol | 7P0182601025 |
| GTIN(EAN) | 8012823354293 |
| Price unit | piece |
| Catalog price | 1 634,07 zł (1 328,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 334 g |
| ETIM class: | Surge protection device for power supply systems |
| Nominal discharge surge current (8/20): | 30 kA |
| Nominal voltage AC: | 230 V |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 2 modular spacing |
| With remote signalling contact: | yes |
| Signalling at the device: | Optical |
| Category type 2: | no |
| Integrated backup fuse: | no |
| Max. continuous voltage AC: | 260 V |
| Number of conductors (without earthing): | 1 |
| Short-circuit breaking capacity (Isccr): | 50 kA |
| Voltage protection level L-N: | 1.5 kV |
| Max. discharge surge current (8/20): | 60 kA |
| Voltage protection level N-PE: | 1.5 kV |
| System configuration TN-C-S: | yes |
| System configuration other: | no |
| System configuration DC: | no |
| System configuration TT: | no |
| System configuration TN-S: | yes |
| System configuration TN-C: | yes |
| System configuration IT: | no |
| System configuration TN: | yes |
| Degree of protection (IP): | IP20 |
