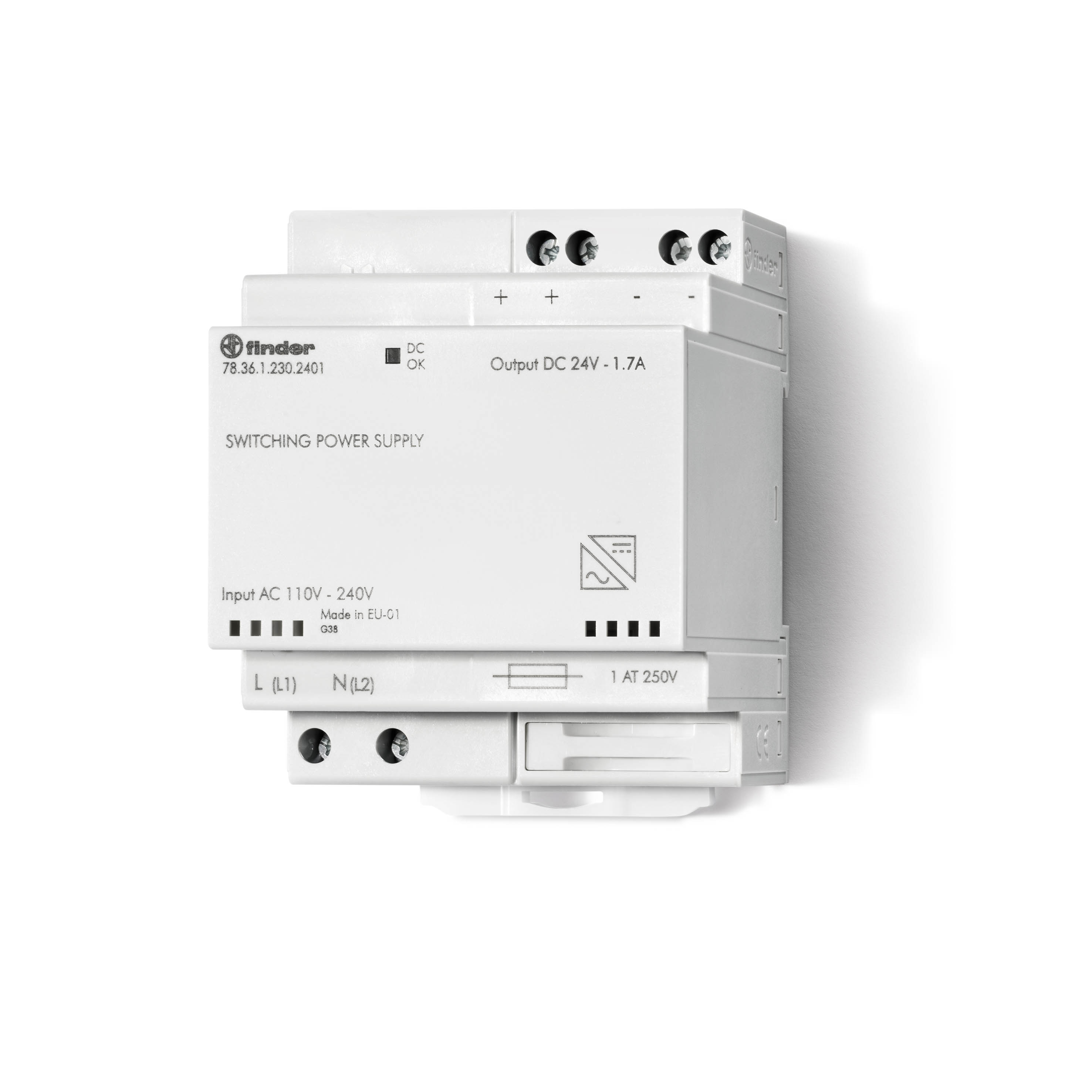

Zasilacz impulsowy 24V DC, 36W, SELV, 78.36.1.230.2401
Information | Value |
---|---|
Supplier | FINDER Polska Sp. z o.o. |
Symbol | 783612302401 |
GTIN(EAN) | 8012823359113 |
Price unit | piece |
Catalog price | 335,57 zł (272,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 135 g |
ETIM class: | DC-power supply |
Voltage type (supply voltage): | AC/DC |
1st secondary output voltage: | 24 - 24 V |
Max. output current 1: | 1.7 A |
Secondary voltage adjustable: | no |
Short-circuit-proof: | yes |
Rated supply voltage AC 50 Hz: | 110 - 240 V |
Rated supply voltage AC 60 Hz: | 110 - 240 V |
Rated supply voltage DC: | 220 - 220 V |
Output voltage stabilized: | no |
Power consumption: | 57.5 VA |
Power output: | 36 W |
Stabilized: | yes |
Type of electric connection: | Screw connection |
Rail mounting possible: | yes |
Wall mounting possible: | no |
Modular version: | yes |
Width: | 70 mm |
Height: | 85.3 mm |
Depth: | 56.5 mm |
Suitable for safety functions: | no |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 4 |
Nominal value output voltage 1: | 24 V |
Nominal value output current 1: | 1.5 A |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
