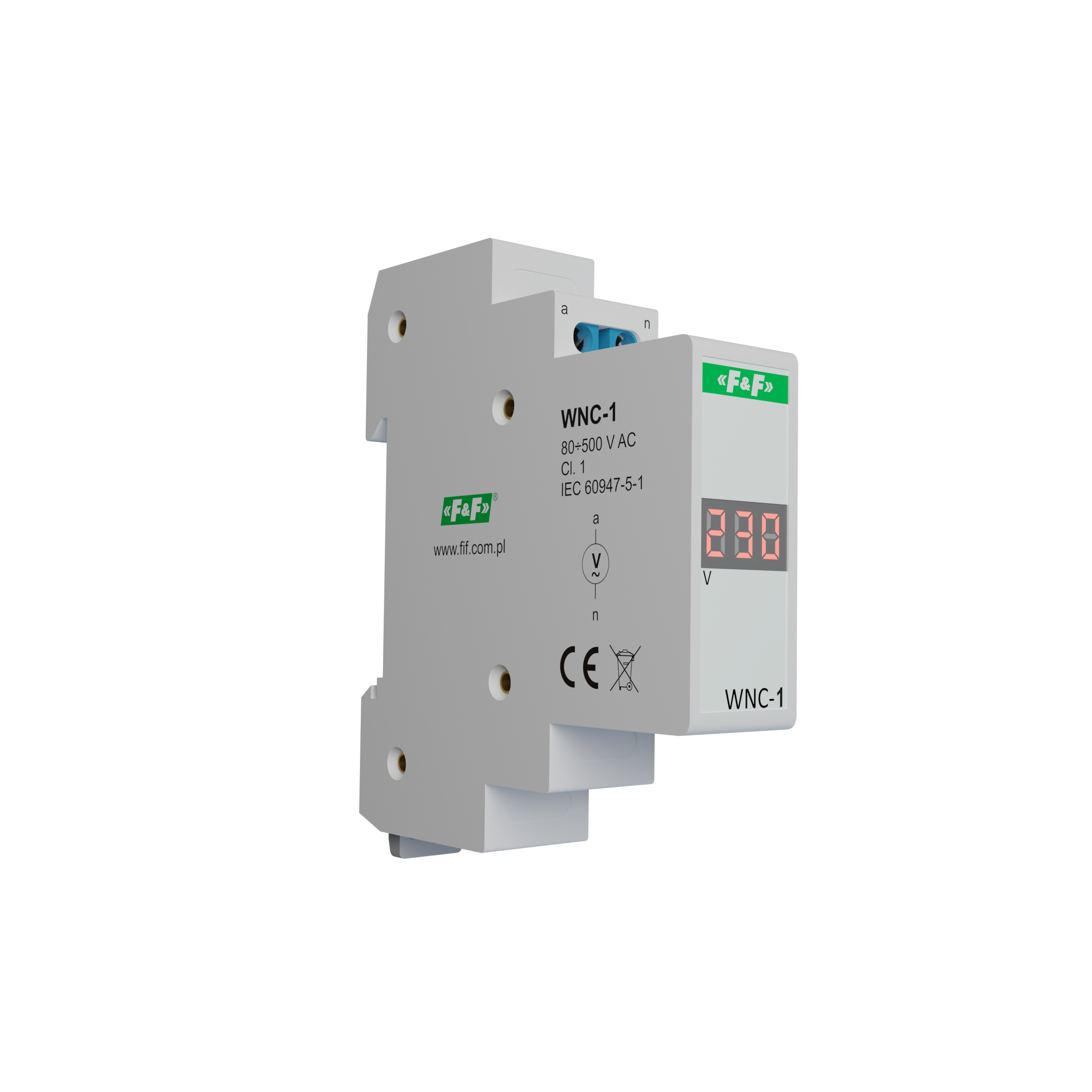

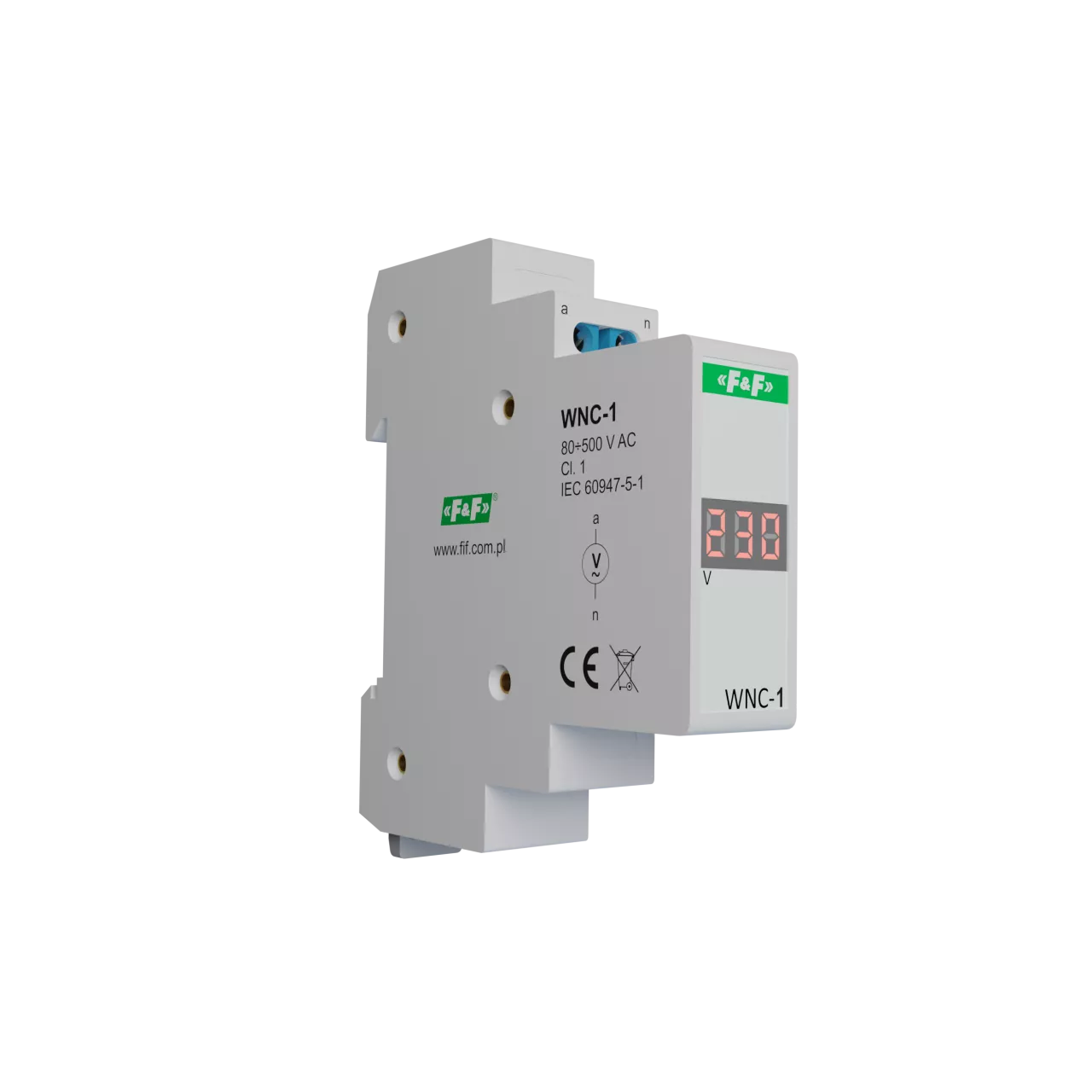

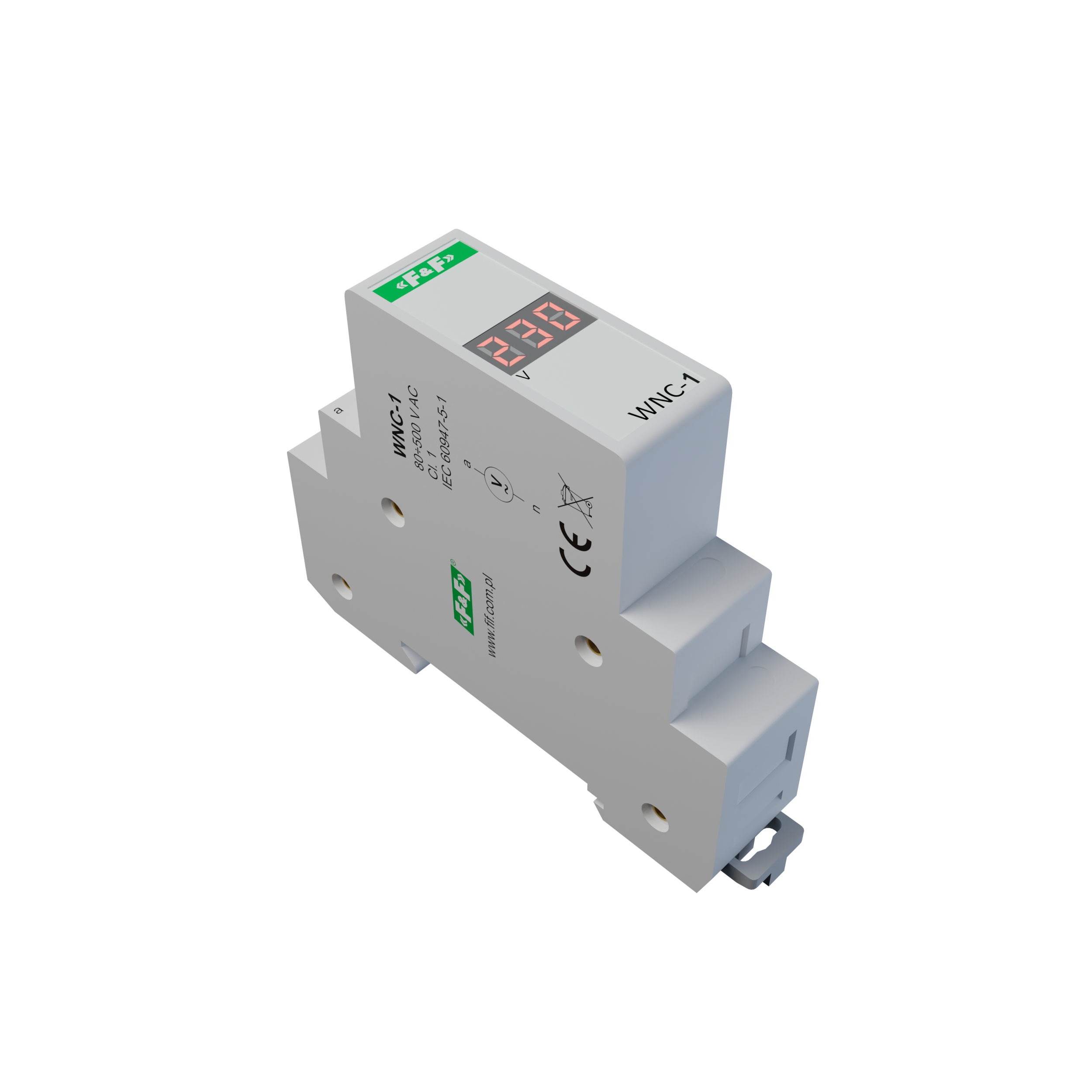

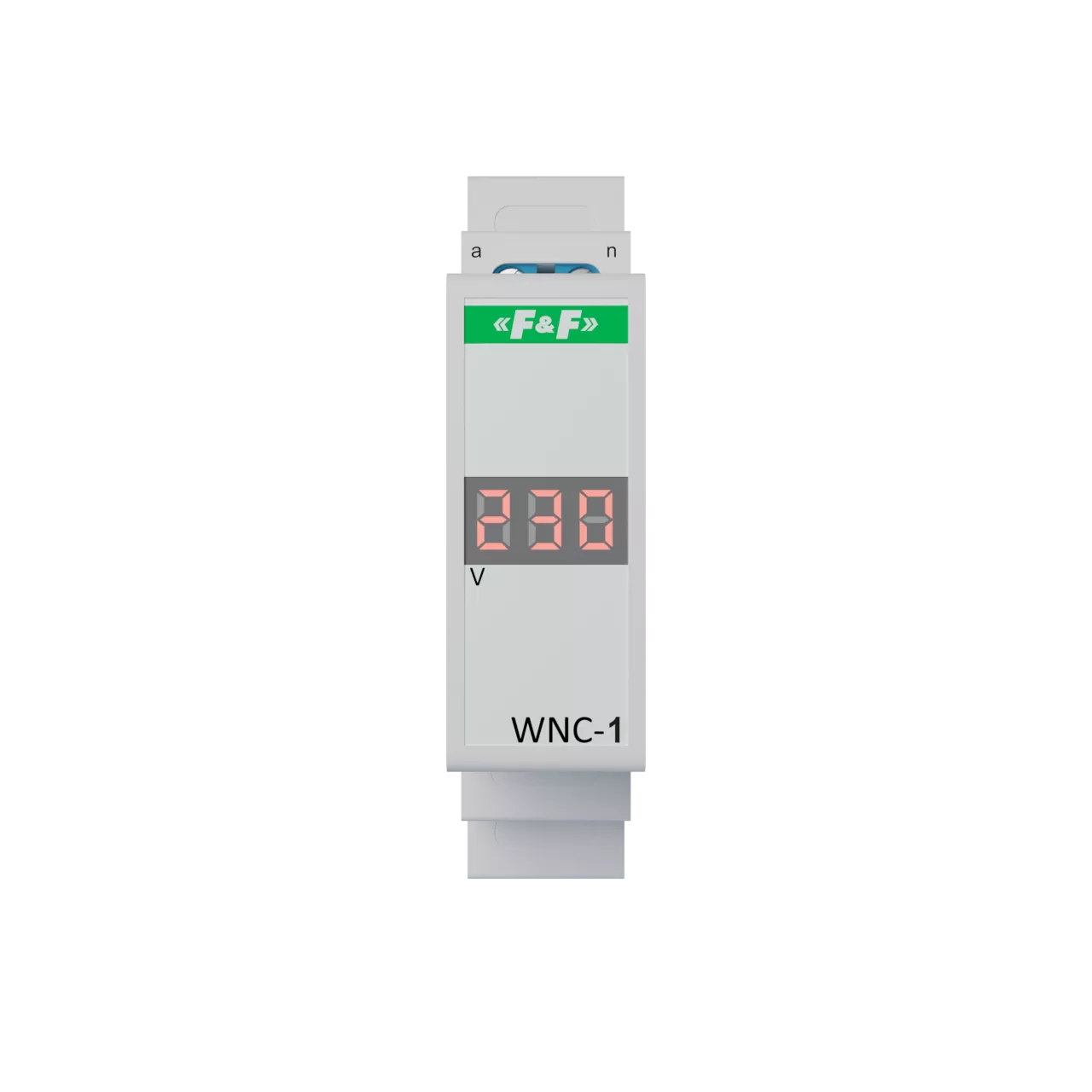

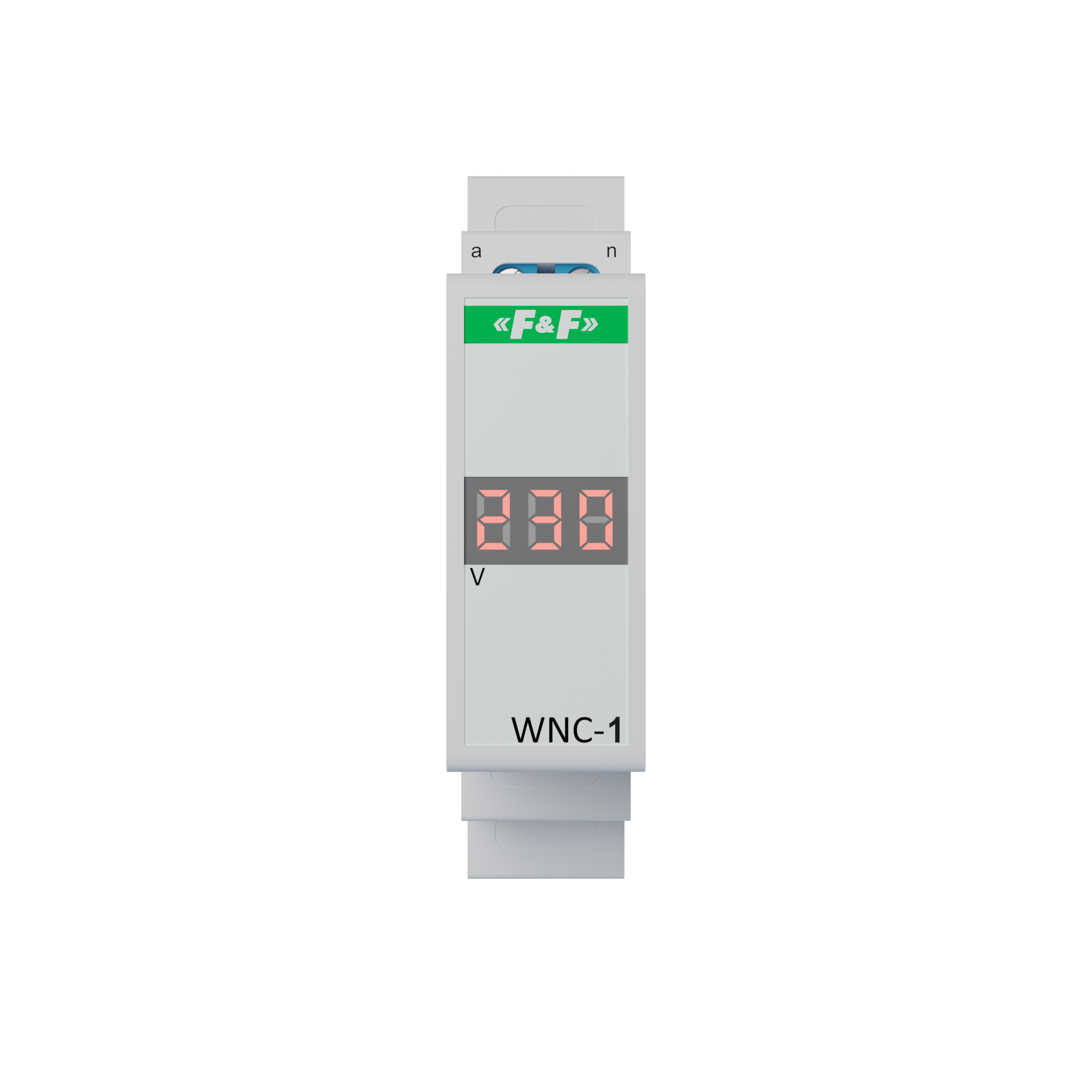

Modułowy wskaźnik napięcia - 1 fazowy LCD
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DMV |
| Symbol | WNC-1 |
| GTIN(EAN) | 5902431674254 |
| Price unit | piece |
| Catalog price | 86,10 zł (70,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ woltomierz jednofazowy Napięcie zasilania 80÷500 V AC Wyświetlacz 3-cyfrowy, 7-segmentowy LED Częstotliwość zasilania 50÷60 Hz Dokładność wskazań 2% (±1 cyfra) Przyłącze zaciski śrubowe 1,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 5 VA, 1 W Temperatura pracy -5÷40°C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 62 g |
| ETIM class: | Voltmeter for installation |
| Measuring range: | 80 - 500 V |
| Transformer connection: | no |
| Accuracy class: | 1 |
| Voltage type: | AC |
| Model: | DIN rail |
| Modular version: | yes |
| Width: | 18 mm |
| Width in number of modular spacings: | 1 |
| Measurement system: | Digital |
| Scales lighting: | yes |
