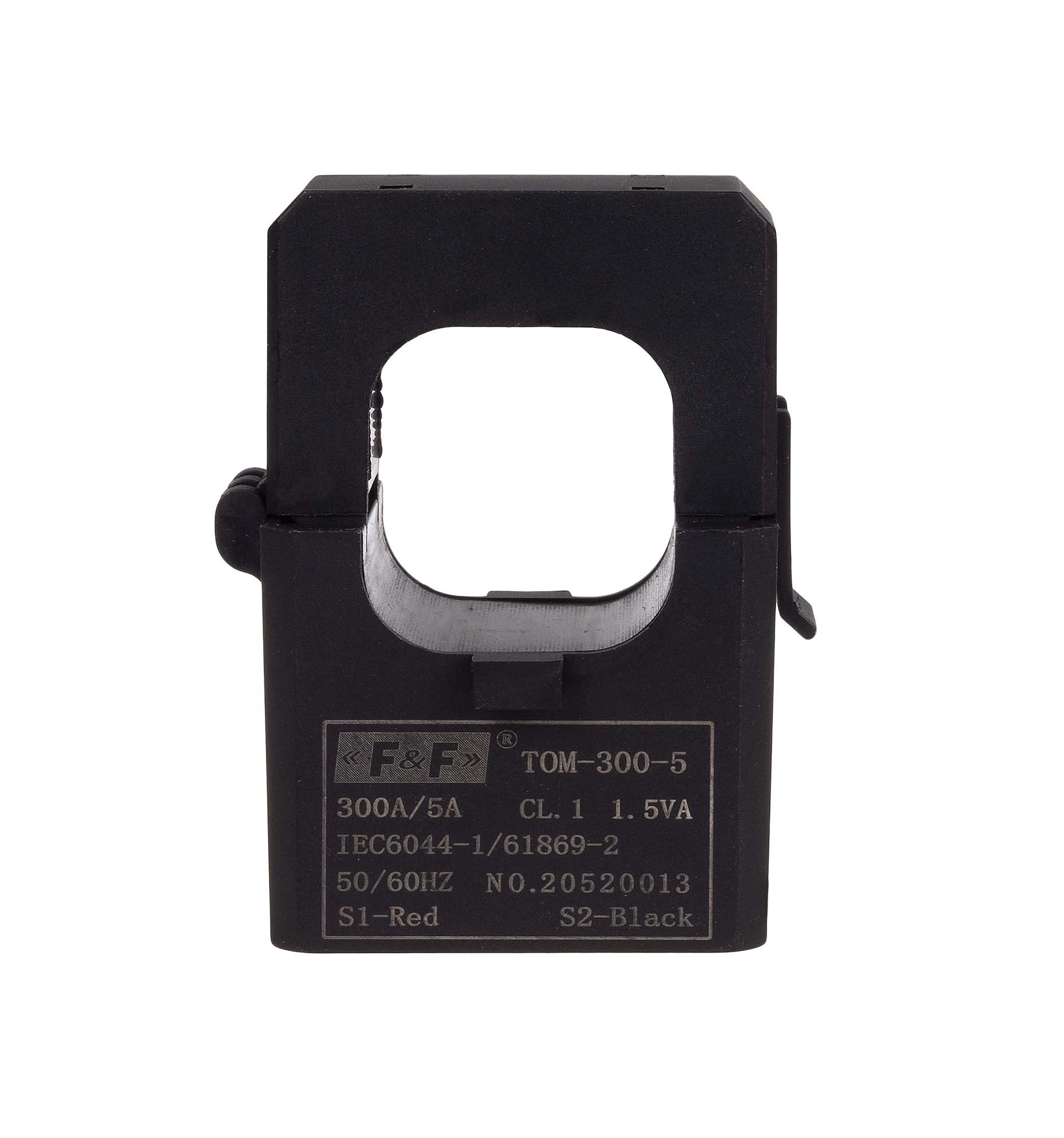

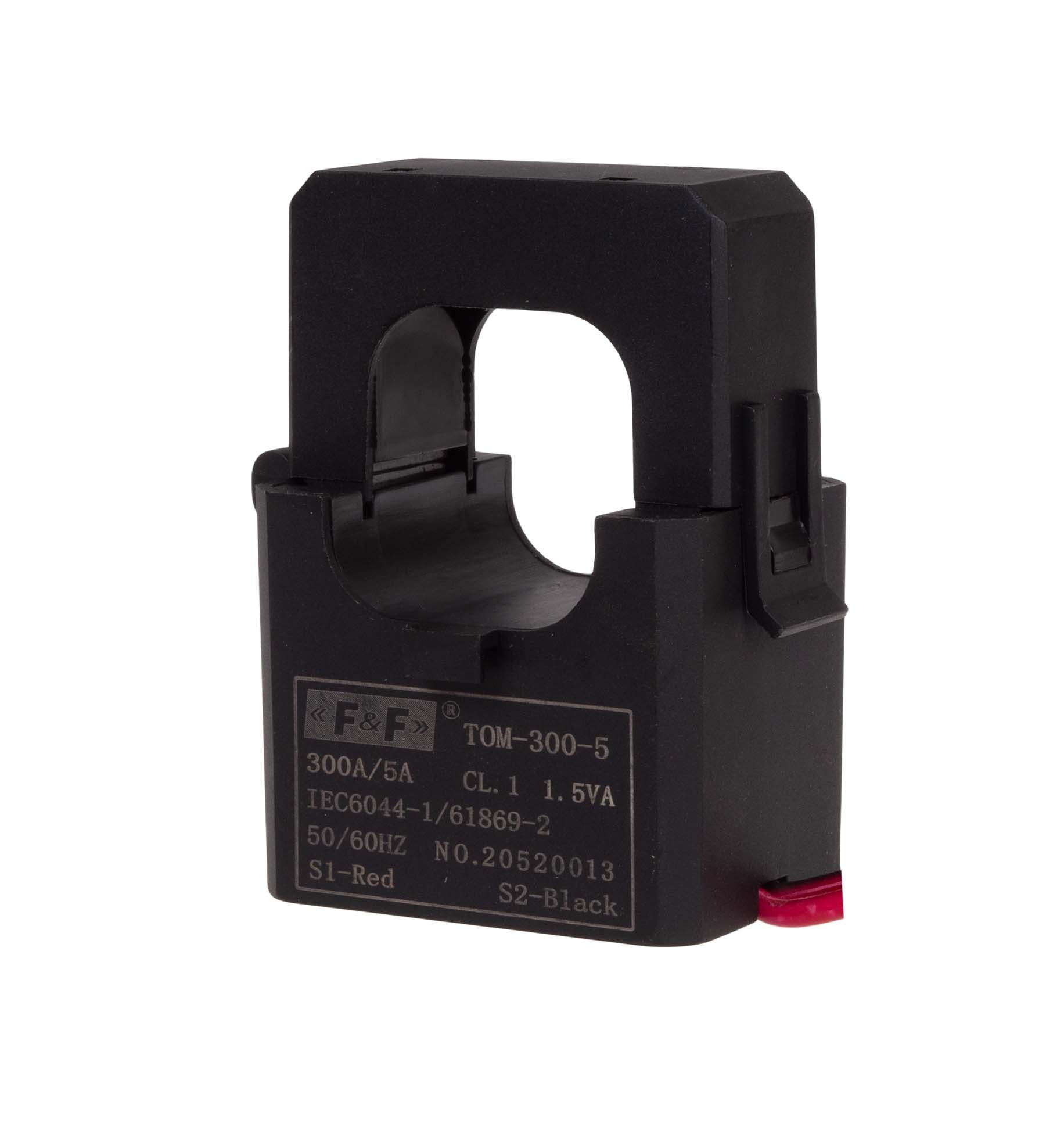

Miniaturowy przekładnik prądowy z otwieranym rdzeniem 300-5A kl.1
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | TI |
| Symbol | TOM-300-5 |
| GTIN(EAN) | 5902431674117 |
| Price unit | piece |
| Catalog price | 244,77 zł (199,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ jednofazowy Budowa z otwieranym rdzeniem Przekładnia lp/ls 300/5 Klasa 1 Moc [VA] 1,5 VA Częstotliwość 50÷60 Hz Maksymalne napięcie pracy 0,66 kV AC Nr normy IEC 60044-1 Prąd wtórny nominalny Is 5 A Napięcie przebicia izolacji 2 kV/1 min. Współczynnik bezpieczeństwa FS ≤ 2 Przyłącze S1/S2 przewód Temperatura pracy -15÷45°C Montaż szyna/przewód Stopień ochrony IP20 Wymiary: W; H; D; A; B; C; [mm] 45 mm, 67 mm, 35 mm, 23 mm, 24 mm, fi 22 mm
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 750 g |
| ETIM class: | Current transformer |
| Model: | Through-feed current converter |
| Rated primary current: | 300 A |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 1.5 VA |
| Overcurrent limiting factor: | FS 5 |
| With shock protection: | yes |
| Snap mounting: | no |
| With copper rail: | no |
| Secondary connection: | Screw connection |
| Number of primary inputs: | 1 |
