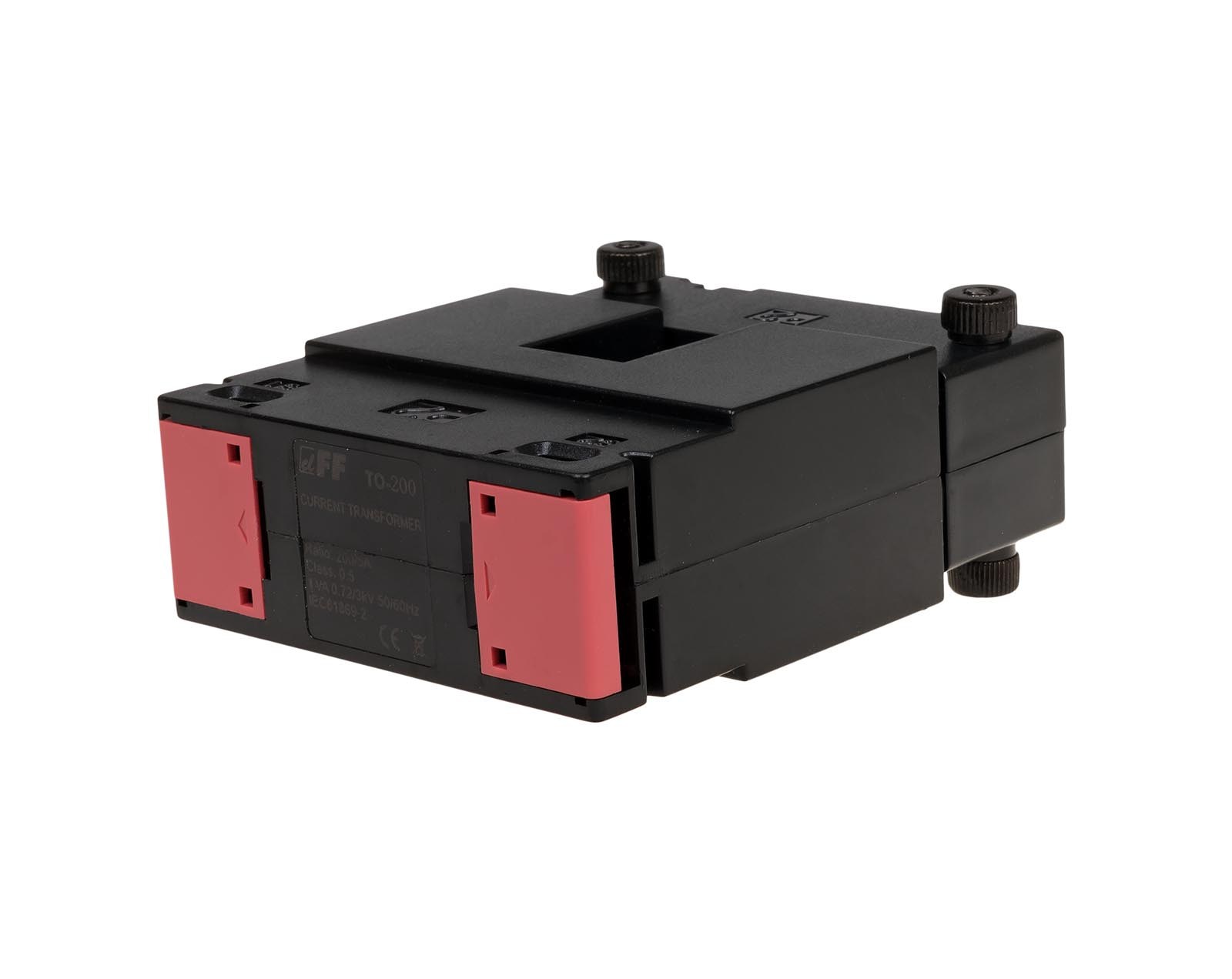

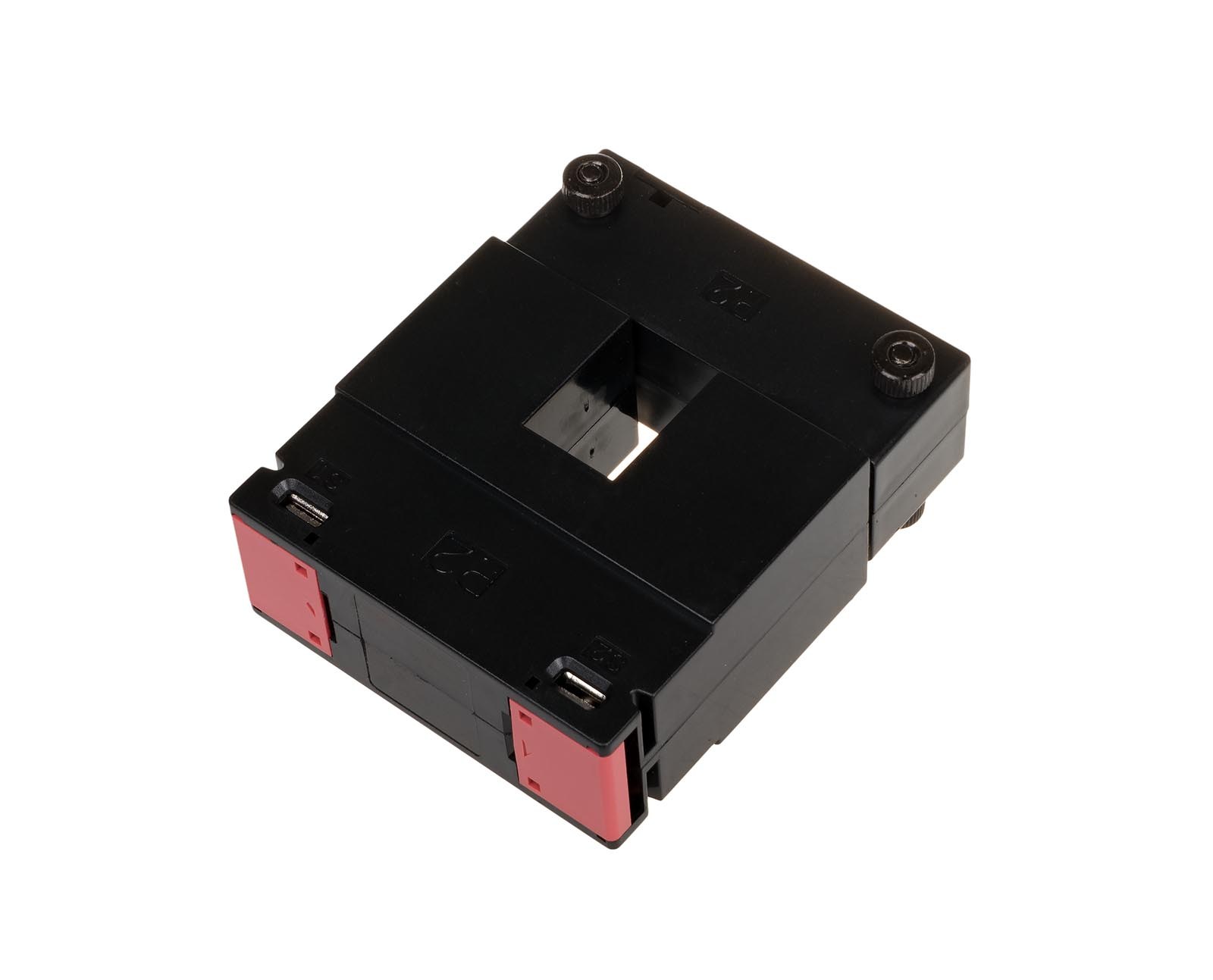

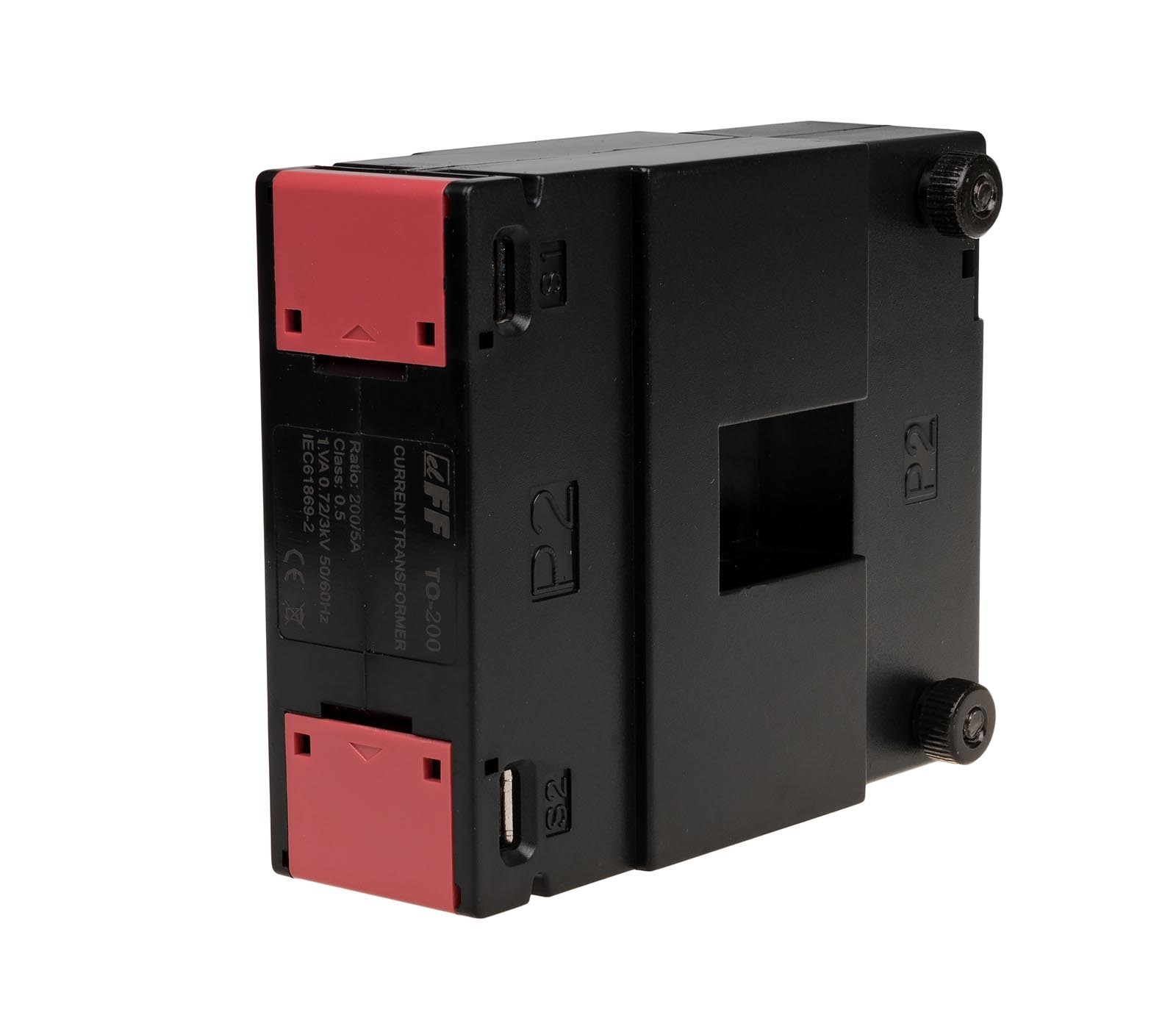

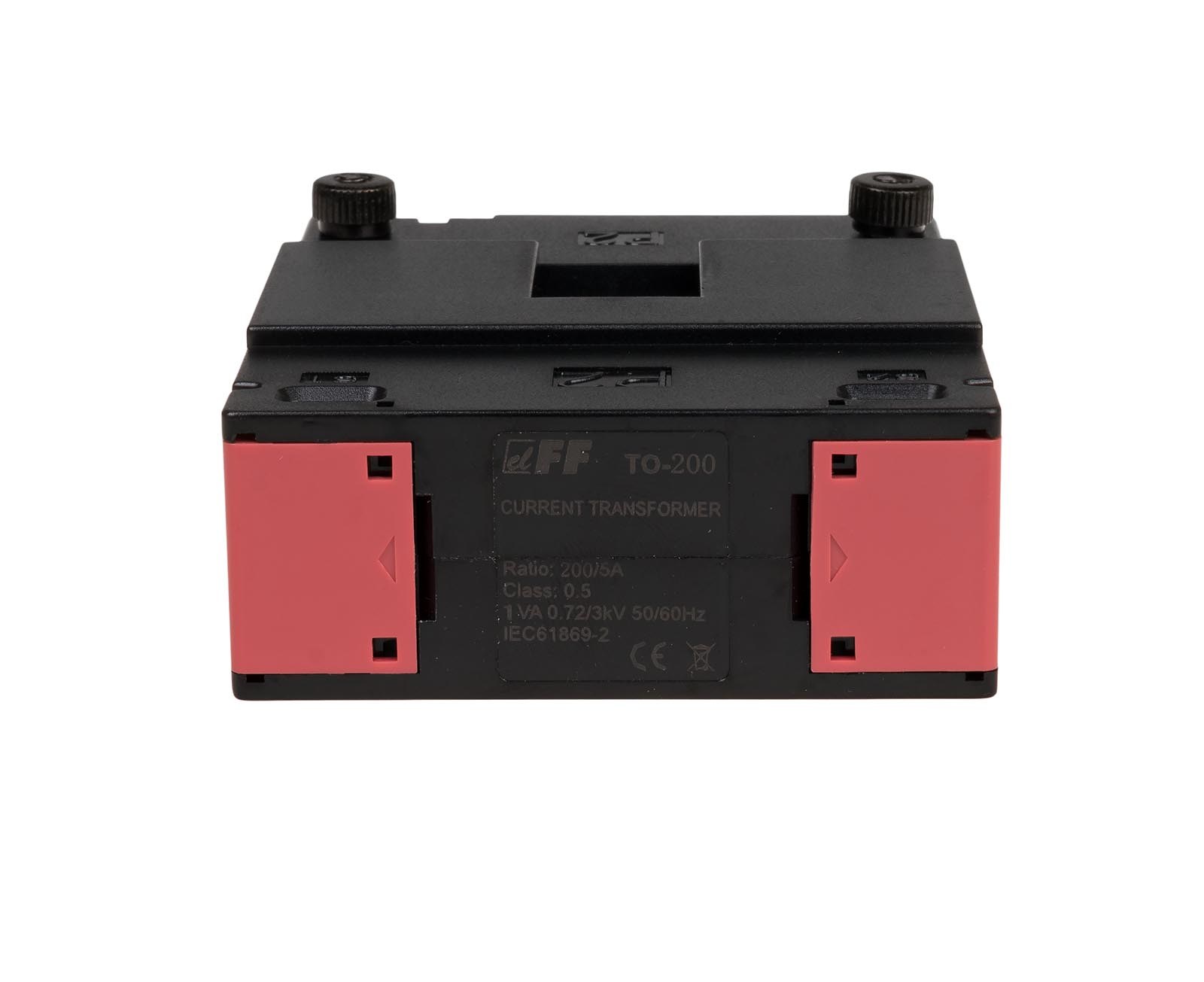

Przekładnik prądowy z otwieranym rdzeniem 200-5A kl.0,5
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | TI |
| Symbol | TO-200-5 |
| GTIN(EAN) | 5908312590859 |
| Price unit | piece |
| Catalog price | 404,67 zł (329,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ jednofazowy Budowa z otwieranym rdzeniem Przekładnia lp/ls 200/5 Klasa 0,5 Moc [VA] 1,5 VA Częstotliwość 50÷60 Hz Maksymalne napięcie pracy 0,66 kV AC Nr normy IEC 60044-1 Prąd wtórny nominalny Is 5 A Napięcie przebicia izolacji 3 kV/1 min. Waga 0,78 kg Współczynnik bezpieczeństwa FS ˂ 5 Przyłącze S1/S2 zaciski śrubowe 4 mm² Wymiary: A; B; C; D; E; F; G; H; I; [mm] 21 mm; 32 mm; 51 mm; 89 mm; 105 mm; 34 mm; 42 mm; 40 mm; 32 mm; Moment dokręcający 0,5 Nm Temperatura pracy -15 ÷ 50°C Pozycja montażu pionowa/pozioma Montaż tablica Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 780 g |
| ETIM class: | Current transformer |
| Model: | Through-feed current converter |
| Rated primary current: | 200 A |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 1.5 VA |
| Overcurrent limiting factor: | FS 5 |
| With shock protection: | yes |
| Snap mounting: | no |
| With copper rail: | no |
| Secondary connection: | Screw connection |
| Number of primary inputs: | 1 |
