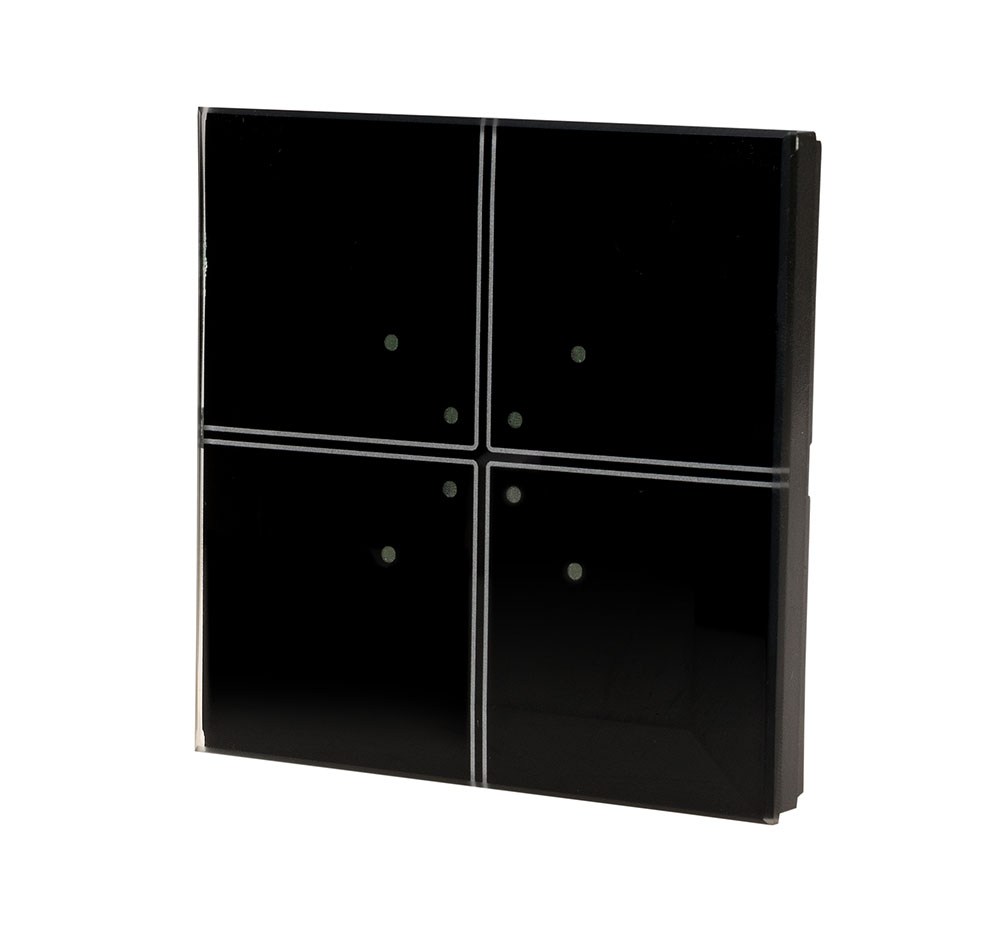

Szklany przycisk dotykowy do automatyki domowej dowolnego producenta 24V, czarny GS4-DC-B
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | GS |
| Symbol | GS4-DC-B |
| GTIN(EAN) | 5902431672175 |
| Price unit | piece |
| Catalog price | 436,65 zł (355,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 9÷30 V DC Wejścia sterownicze 4 Obciążalność wyjścia (AC-3) 30 mA/ kanał Element wykonawczy tranzystor Sterowanie bezpotencjałowe otwarty kolektor typu OC Sterowanie napięciowe U- (napięcie zasilania - 0.5 V) Przyłącze zaciski śrubowe 2,5 mm² Pobór mocy czuwanie/praca 0,1W/0,5W Temperatura pracy -25 ÷ 50 °C Wymiary 81 mm × 81 mm ×12 mm Montaż w puszce podtynkowej Ø60 Stopień ochrony - front IP50 Stopień ochrony - tył IP20
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Push button |
| Assembly arrangement: | Other |
| Model: | Group push button |
| Method of operation: | Push button/touch control button |
| Number of modules (module system): | 1 |
| Number of poles: | 4 |
| Nominal voltage: | 24 V |
| With lighting: | yes |
| With signal lamp: | yes |
| Feedback-signal contact: | yes |
| Mounting method: | Flush-mounted |
| Type of fastening: | Engage (snap) |
| Material: | Glass |
| Halogen free: | yes |
| Surface finishing: | Glossy |
| Colour: | Black |
| Transparent: | no |
| Label space/information surface: | no |
| Imprint: | Other |
| Suitable for degree of protection (IP): | IP54 |
| Device width: | 81 mm |
| Device height: | 81 mm |
| Device depth: | 12 mm |
| Min. depth of built-in installation box: | 20 mm |
