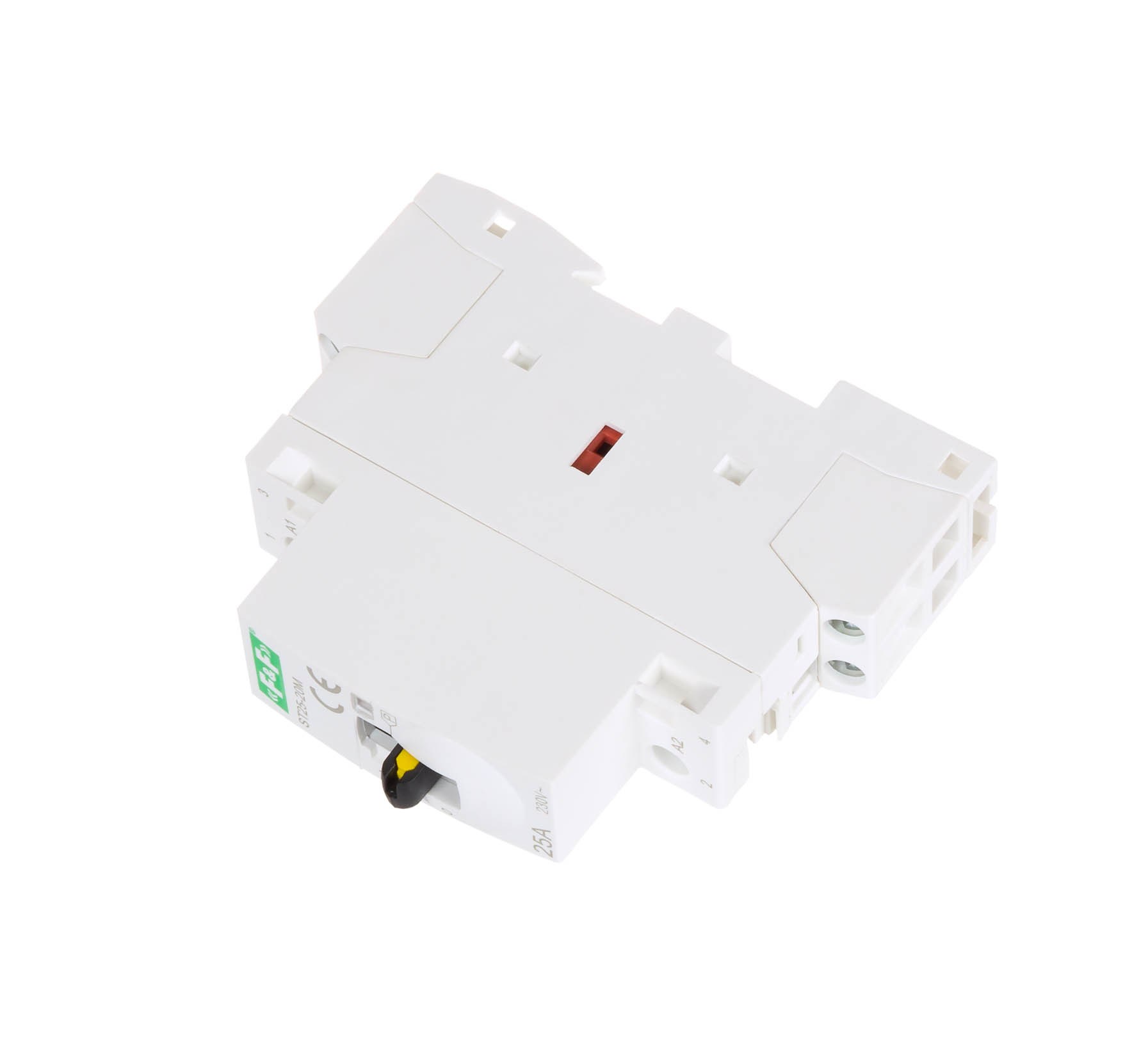

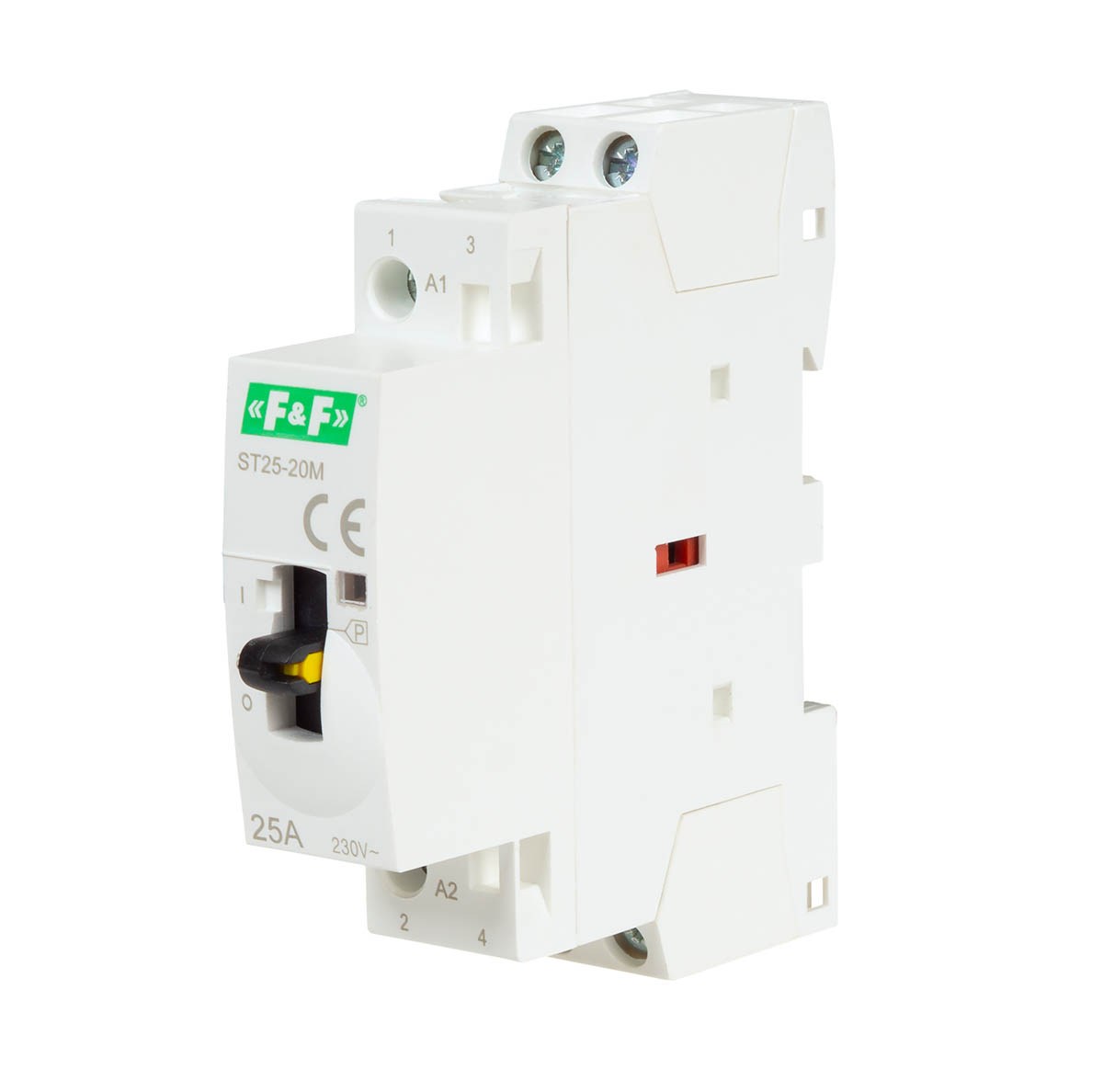

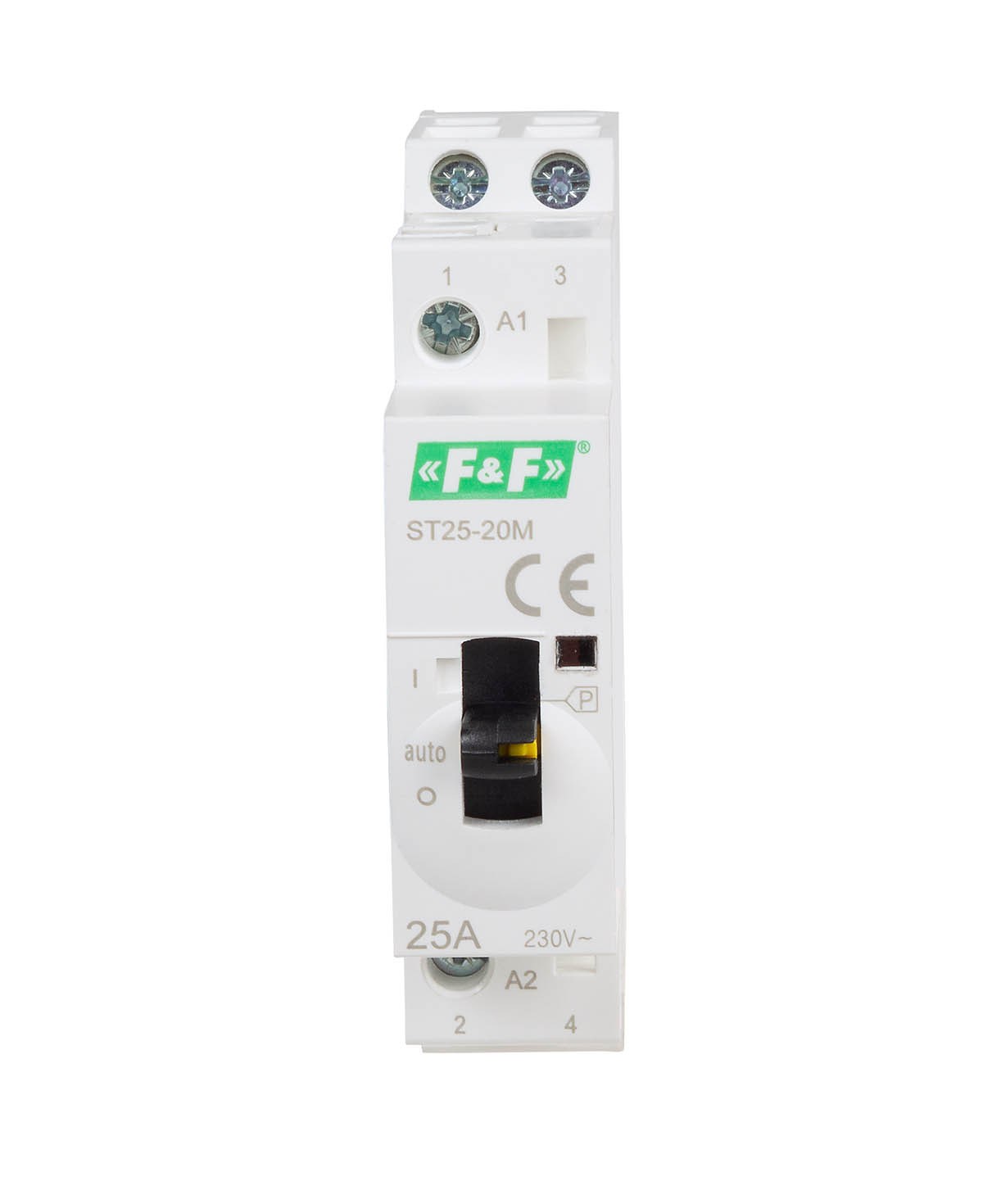

Stycznik modułowy ze sterowaniem ręcznym, montaż na szynie
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | ST |
Symbol | ST25-20-M |
GTIN(EAN) | 5902431673837 |
Price unit | piece |
Catalog price | 97,17 zł (79,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Znamionowy prąd łączeniowy 25 A AC-7A 8,5 A AC-7B kombinacja styków 2 NO rodzaj sieci Prąd przemienny (AC) typ sterowania Sterowanie zdalne i ręczne napięcie sterujące 230...240 V AC 50 Hz częstotliwość sieci 50 Hz [Ue] znamionowe napięcie łączeniowe 250 V AC 50 Hz największa moc 1,2 W w 250 V prąd przemienny (AC) Znamionowe napięcie izolacji [Ui] 500 V AC 50/60 Hz znamionowe napięcie udarowe wytrzymywane [Uimp] n4 kV typ sygnału sterującego Bistabilny częstotliwość przełączania 100 przełączeń/dzień sygnalizacja lokalna Wskaźnik aktywności pobór mocy w stanie wstrzymania VA 2,7 VA moc rozruchu w VA 9,2 VA podstawa montażowa 35 mm szyna symetryczna DIN wysokość 81 mm Szerokość 18 mm głębokość 60 mm
Additional features:
Information | Value |
---|---|
Gross weight: | 128 g |
ETIM class: | Installation contactor for distribution board |
Rated operating voltage: | 230 - 230 V |
Rated operation current: | 25 A |
Rated excitation voltage: | 230 - 230 V |
Voltage type (operating voltage): | AC |
Voltage type (excitation voltage): | AC |
Number of contacts as normally open contact: | 2 |
Number of contacts as normally closed contact: | 0 |
Max. incandescent lamp load: | 4000 W |
Slider for hand switch: | yes |
Width in number of modular spacings: | 2 |
Built-in depth: | 65 mm |
Additional equipment possible: | no |
Degree of protection (IP): | IP20 |
