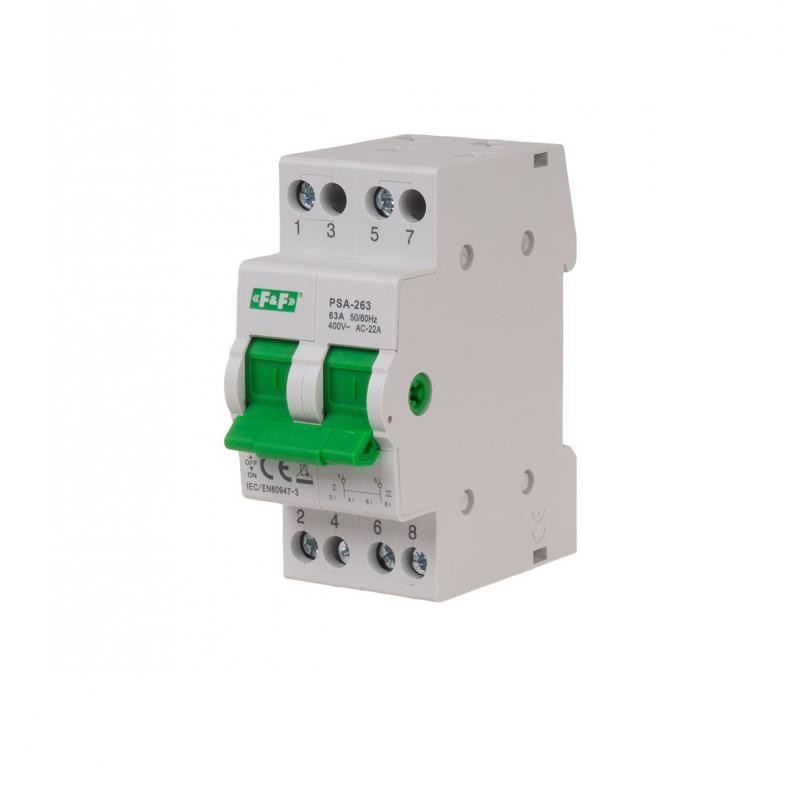

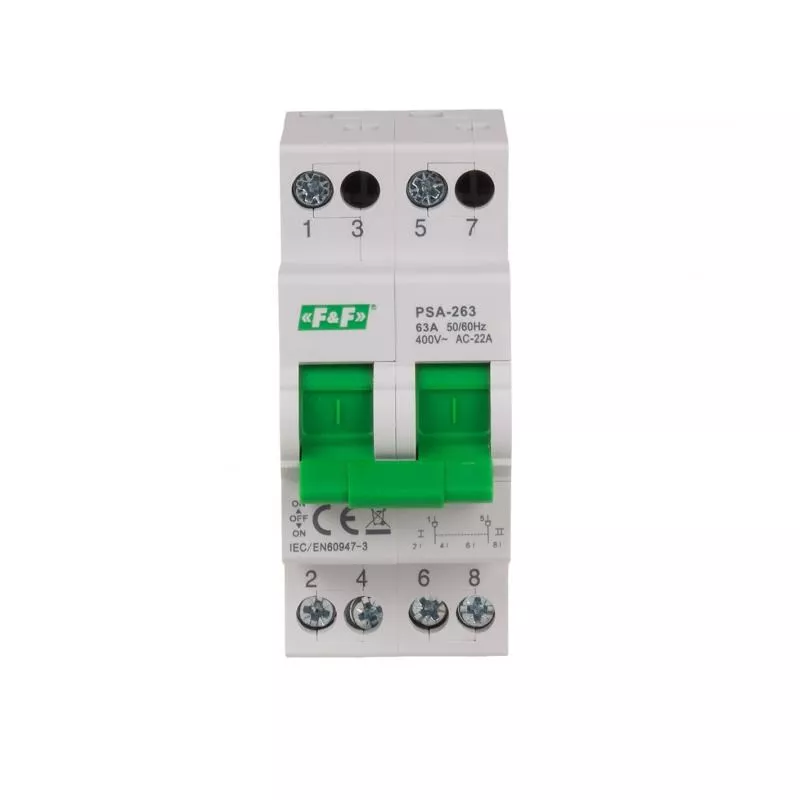

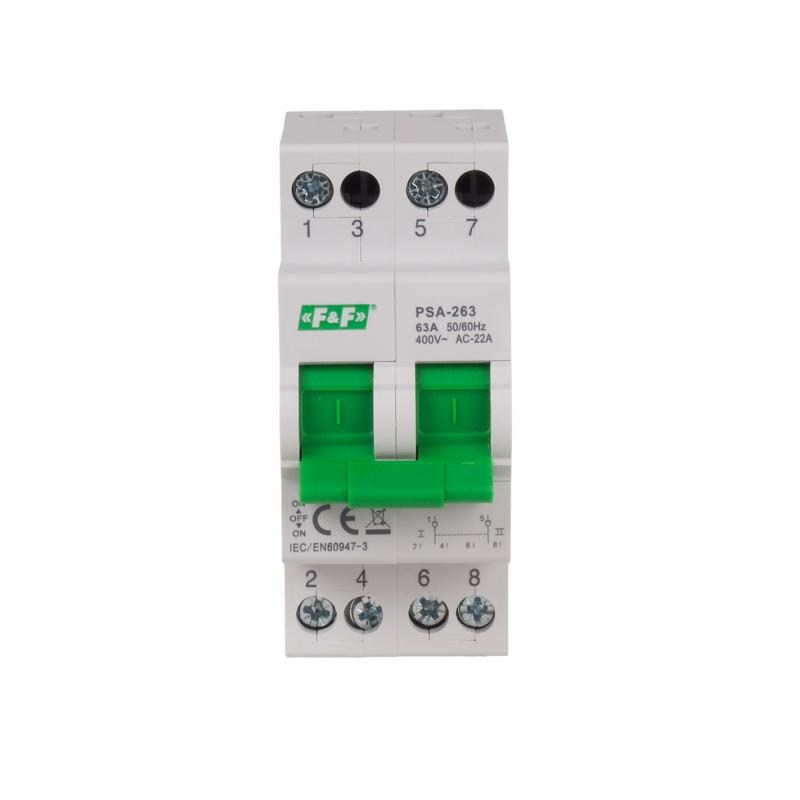

2-biegunowy, przełącznik instalacyjny sieć-agregat 63A
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | PSA |
| Symbol | PSA-263 |
| GTIN(EAN) | 5902431674971 |
| Price unit | piece |
| Catalog price | 98,40 zł (80,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie znamionowe 230/400 V Prąd znamionowy [AC-21B/AC-22A] 63 A Liczba biegunów 2P Program przełączeń 1-0-2 Wytrzymałość elektryczna 5000 cykli Wytrzymałość mechaniczna 15000 cykli Częstotliwość znamionowa 50÷60 Hz Przyłącze zaciski śrubowe 10 mm² (linka); zaciski śrubowe 16 mm² (drut) Temperatura pracy -20÷50°C Wymiary 4 moduły (70 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 750 g |
| ETIM class: | Off-load switch |
| Model: | Reverser |
| Number of poles: | 2 |
| With zero (off) position: | yes |
| With retraction in 0-position: | no |
| Rated permanent current Iu: | 63 A |
| Degree of protection (IP), front side: | IP20 |
| Suitable for distribution board installation: | yes |
| Complete device in housing: | yes |
| Housing material: | Plastic |
| Type of control element: | Rocker lever |
| Type of electrical connection of main circuit: | Screw connection |
