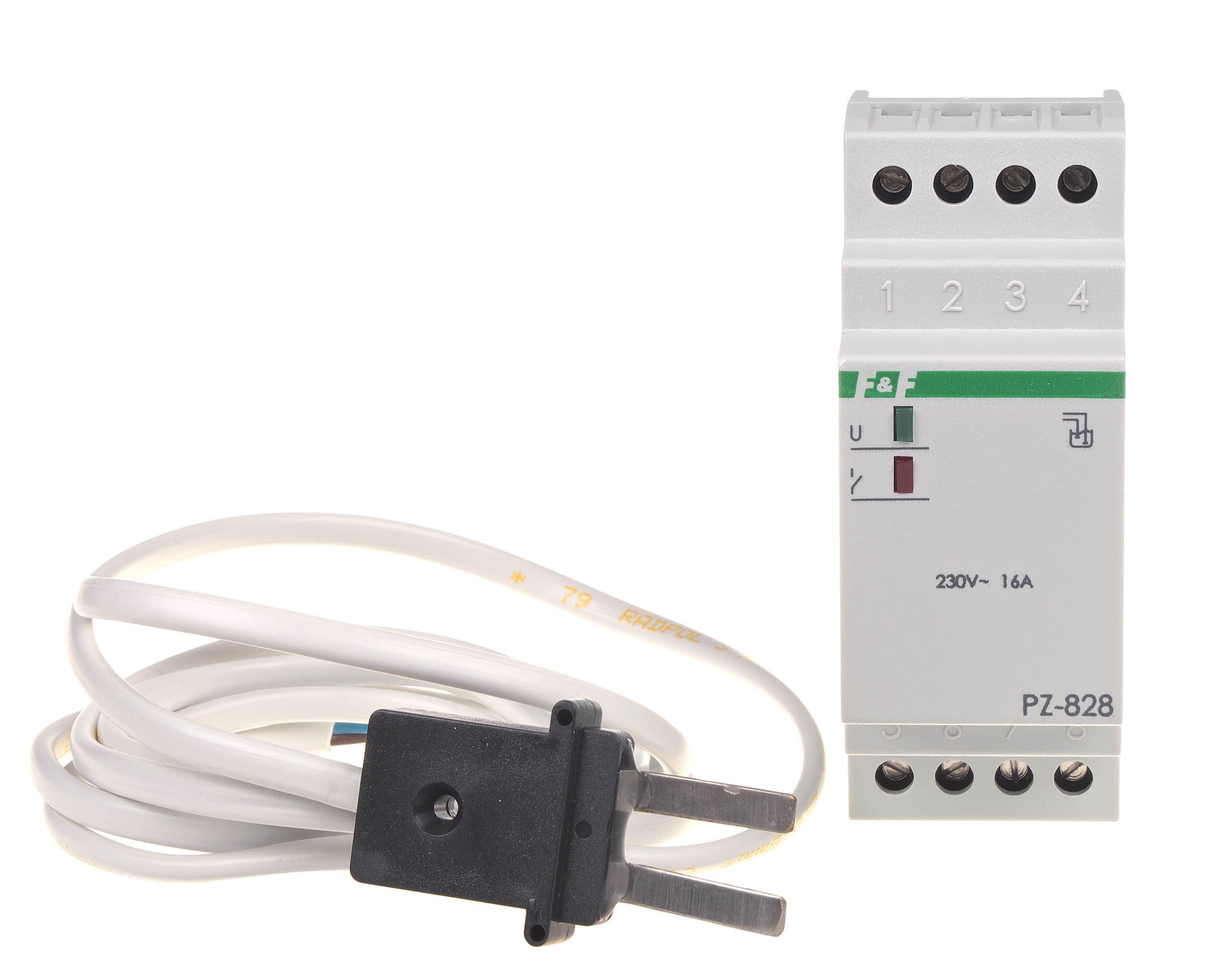

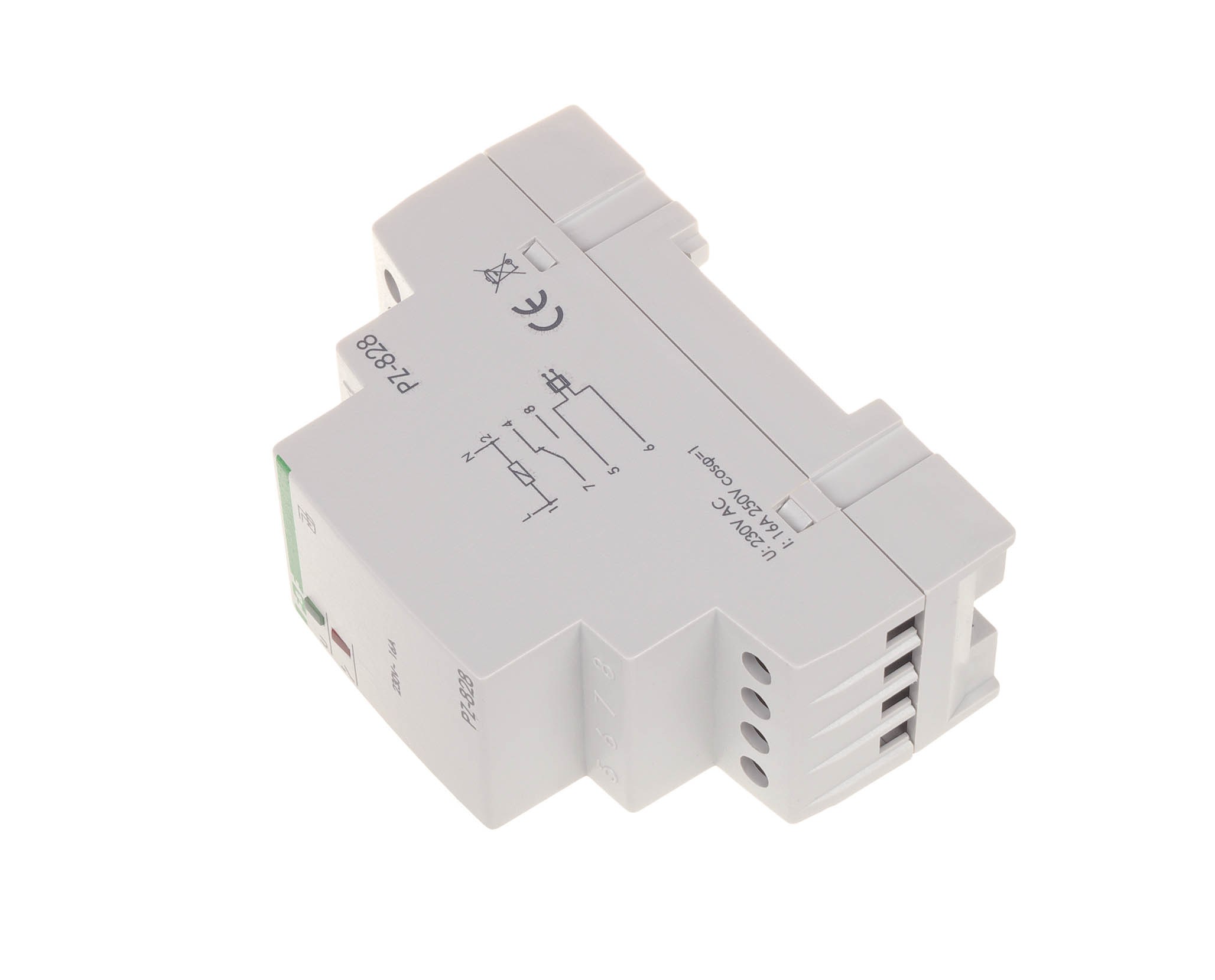

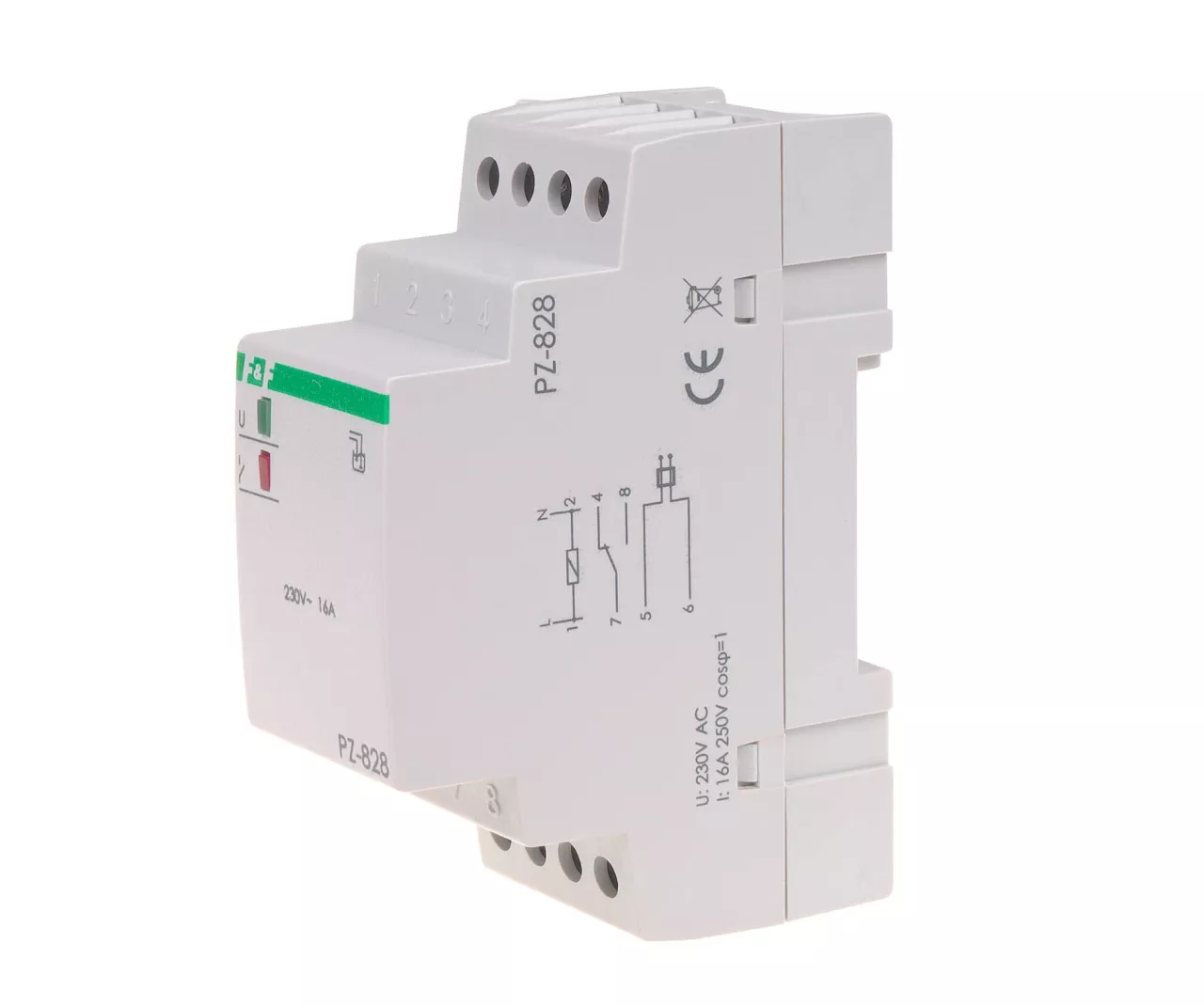

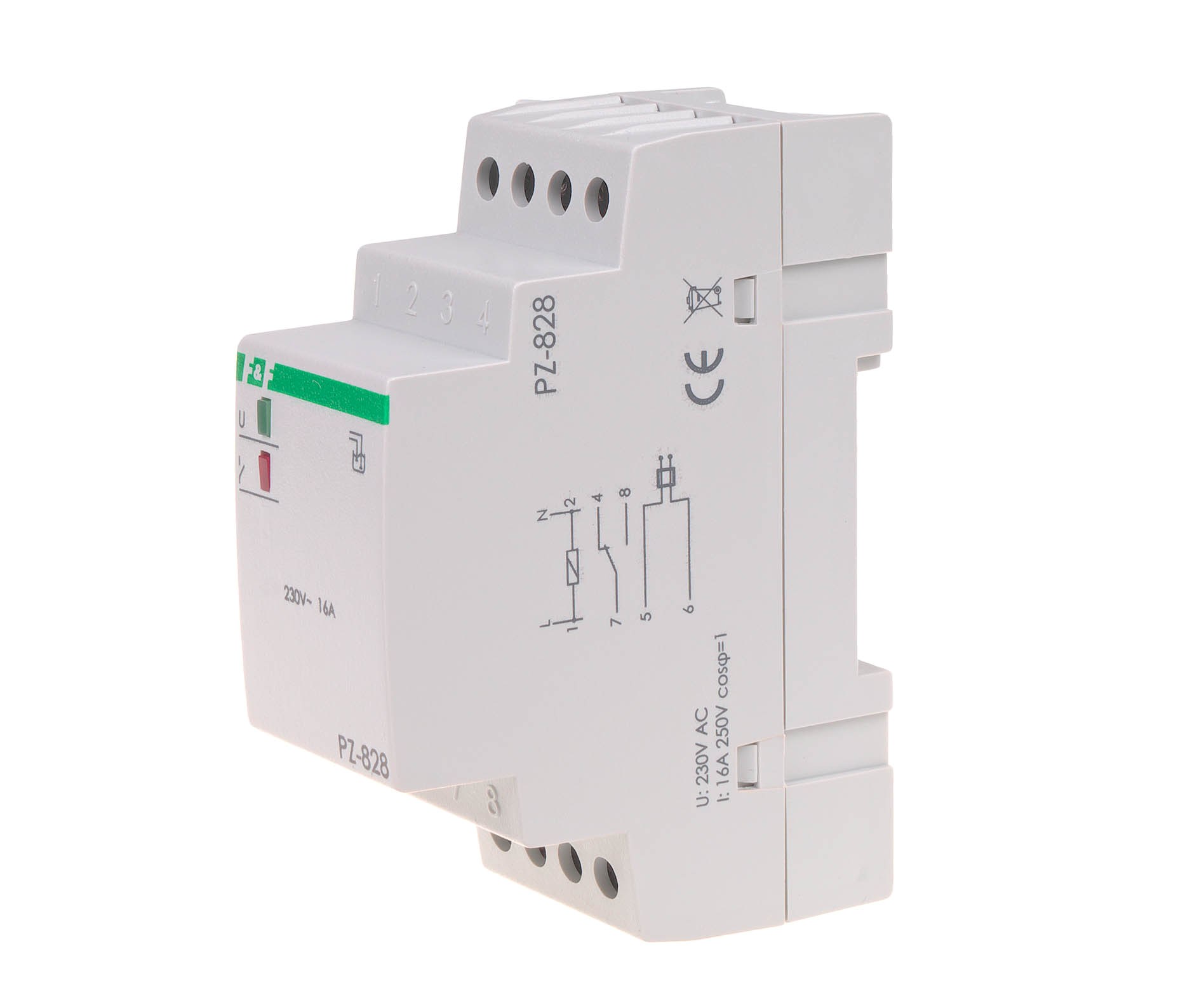

Przekaźnik zalania PZ-828, montaz na szynie DIN,styk: 1NO/NC 230V
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | PZ |
Symbol | PZ-828 |
GTIN(EAN) | 5908312595601 |
Price unit | piece |
Catalog price | 196,80 zł (160,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Napięcie wyjść pomiarowych 6 V Typ sondy zalania 1 x PZ Zaciski sondy separowane od sieci transformatorem Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,1 W Temperatura pracy -25 ÷ 50 °C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 248 g |
ETIM class: | (Fill) level monitoring relay |
Type of electric connection: | Screw connection |
Number of inputs for electrodes: | 1 |
Physical measurement principle: | Conductive |
Response value sensitivity adjustable: | yes |
Number of contacts as change-over contact: | 1 |
