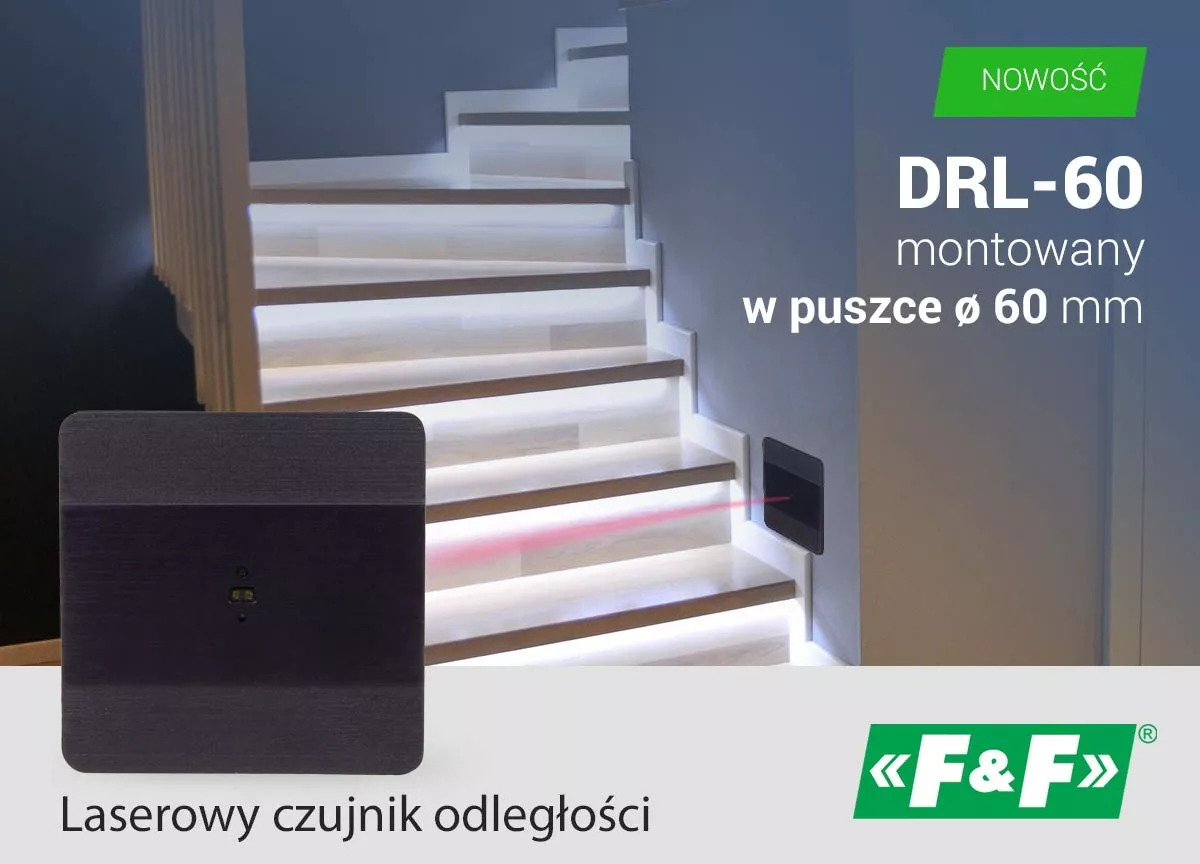

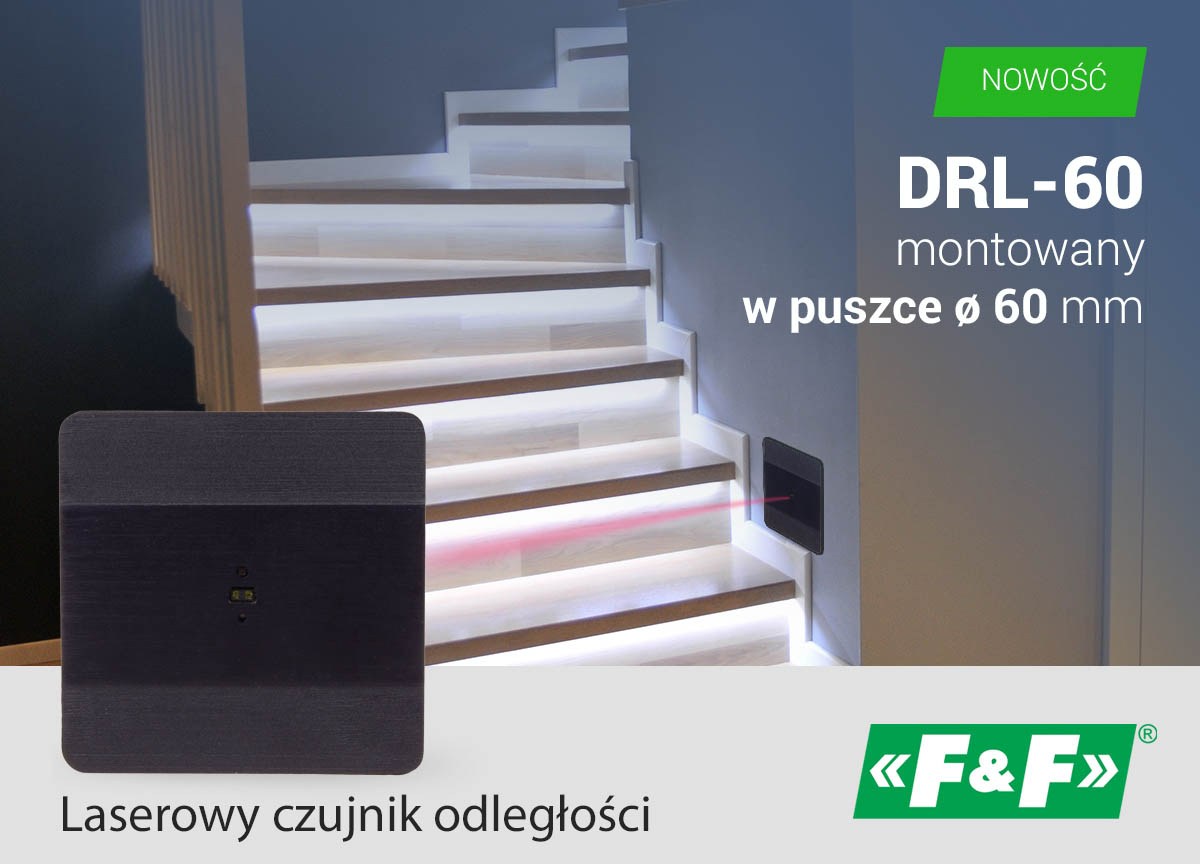

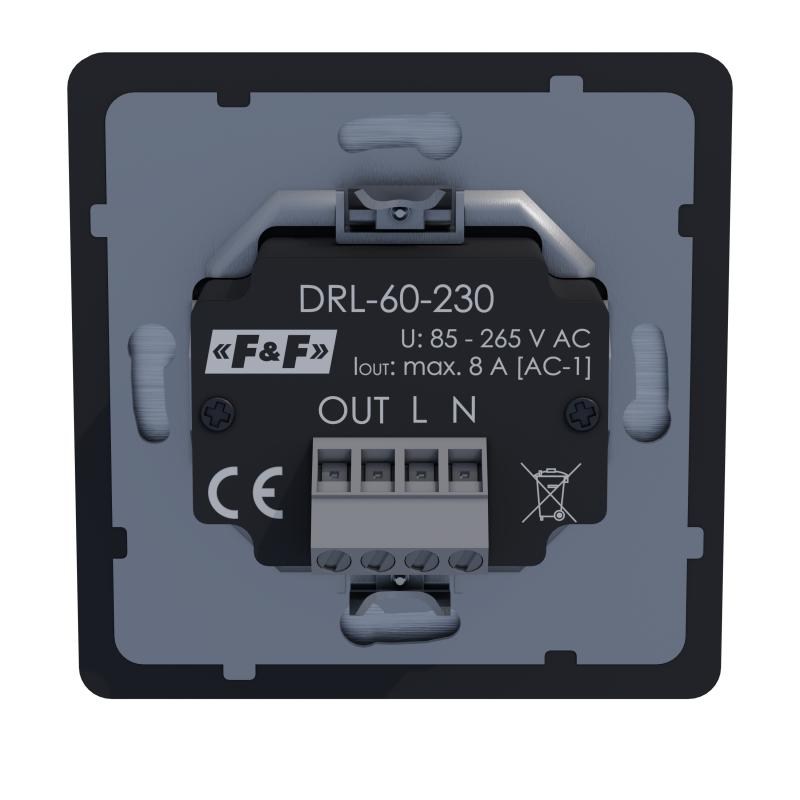

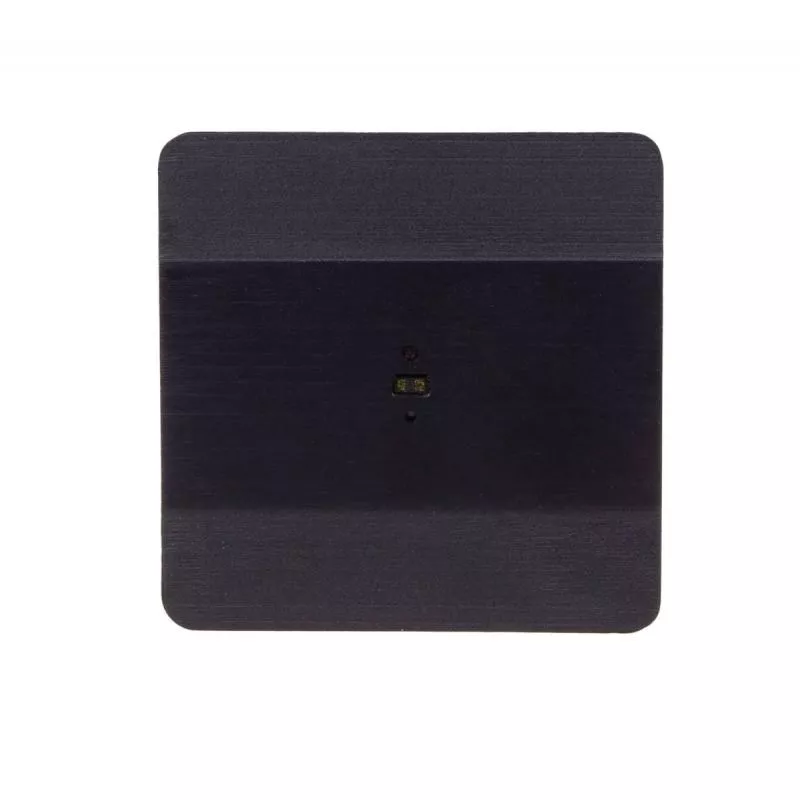

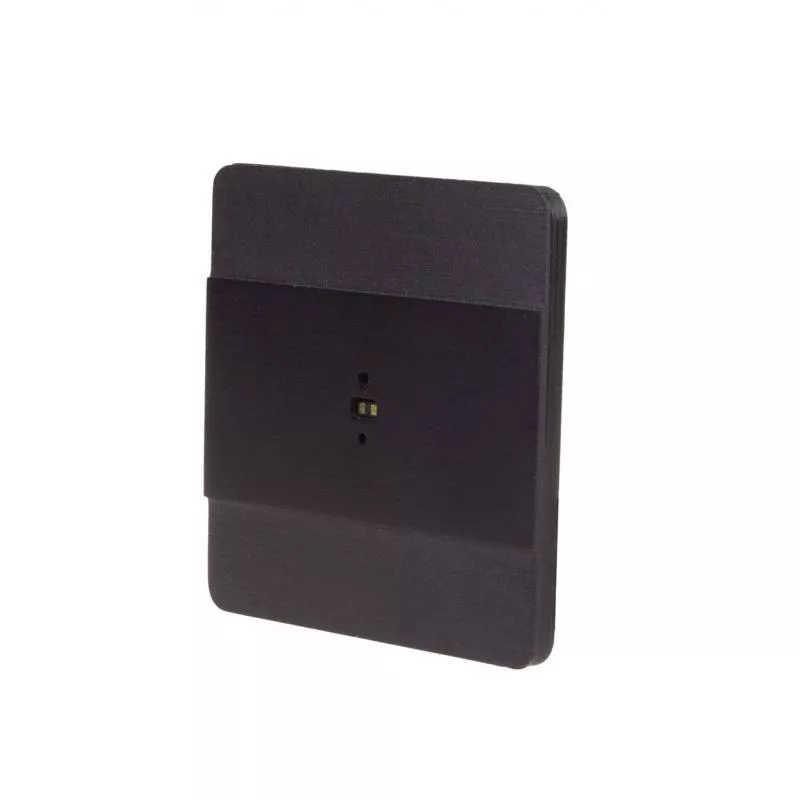

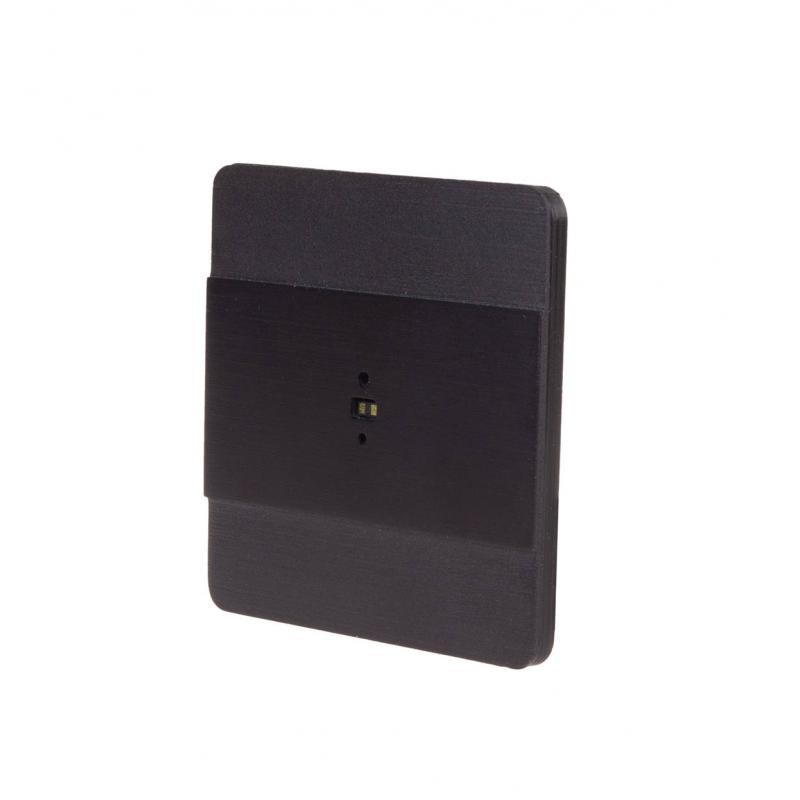

Laserowy czujnik odległości DRL-60-230-9 Czarny, do puszki ø60 czujnik ruchu do sterownia oświetleniem na schodach i korytarzach
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DR |
| Symbol | DRL-60-230-9 |
| GTIN(EAN) | 5902431675503 |
| Price unit | piece |
| Catalog price | 541,20 zł (440,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja F&F - zegar astronomiczny
Za zakup asortymentu F&F na kwotę 2500 zł., zegar astronomiczny w cenie 3,69 zł.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Description:
Napięcie zasilania 165÷265 V AC Maksymalny prąd obciążenia 8 A Próg zadziałania - regulowany 2÷500 lx Pole detekcji 0,1÷2,0 m regulowane Czas załączenia odbiornika - regulowany 0÷10 min. Kąt detekcji ±18° Rodzaj detekcji czujnik laserowy ToF Długość fali 940 nm Bezpieczeństwo klasa 1 Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,5 W Temperatura pracy -10÷45°C Wymiary zewnętrzne 80×80×6,5 mm; wewnętrzne (puszka) ø60 mm, głębokość 25 mm Montaż podtynkowy Stopień ochrony IP30
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Movement sensor |
| With DALI interface: | no |
| Constant light control: | yes |
| HVAC-control: | no |
| Forced switch on: | yes |
| Forced switch off: | no |
| Animal zone: | no |
| Creep-under protection: | no |
| Background monitoring: | no |
| Networkable: | yes |
| Scan angle: | 10 ° |
| Staircase light controller: | yes |
| Bridging switch: | no |
| Max. reach sideways: | 0 m |
| Max. presence range: | 1 m² |
| Max. reach frontally: | 2 m |
| Diameter reach on floor: | 1 m |
| Suitable for wireless transmission: | no |
| Remote operation: | no |
| With remote control: | no |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| With signal unit: | yes |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | yes |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Halogen free: | no |
| Anti-bacterial treatment: | no |
| Transparent: | no |
| Nominal voltage: | 165 - 265 V |
| Min. switch-on time: | 1 s |
| Max. duty cycle: | 10 min |
| Switch-off delay: | 1 s |
| Switching-on delay: | 1 s |
| Response value luminosity: | 2 - 500 lx |
| Suitable for C-load: | yes |
| Number of switching zones: | 1 |
| Max. starting current: | 8 A |
| Min. starting current: | 0,1 A |
| Substation input: | no |
| With alarm function: | no |
| With acoustic sensor: | no |
| Diameter: | 60 mm |
| With connection cable: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Sensor type: | Other |
| Mounting method: | Flush-mounted |
| Connection type: | Screwed terminal |
| Material: | Metal |
| Material quality: | Aluminium |
| Surface protection: | Other |
| Surface finishing: | Matt |
| Colour: | Black |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK00 |
| Voltage type: | AC |
