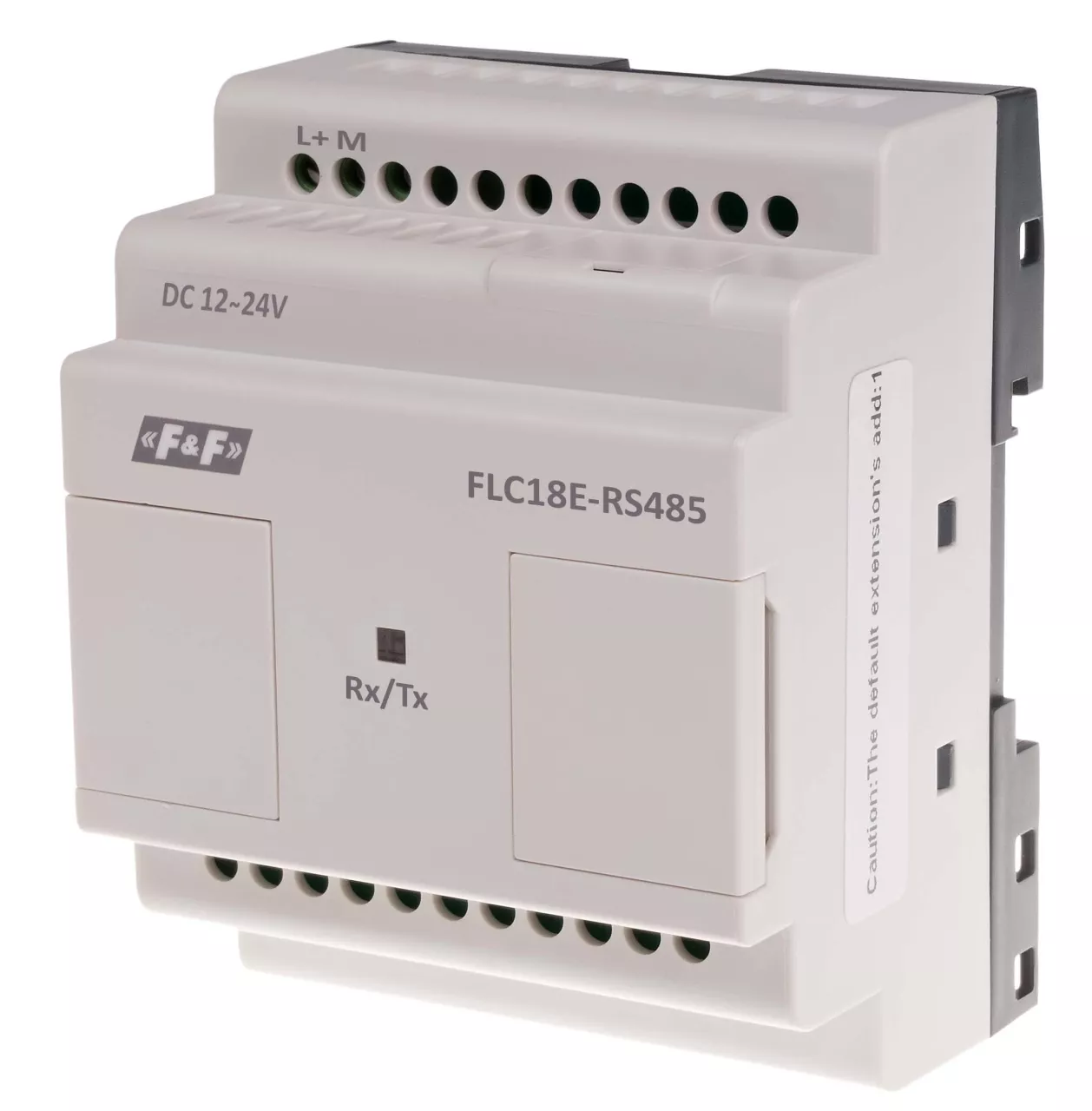

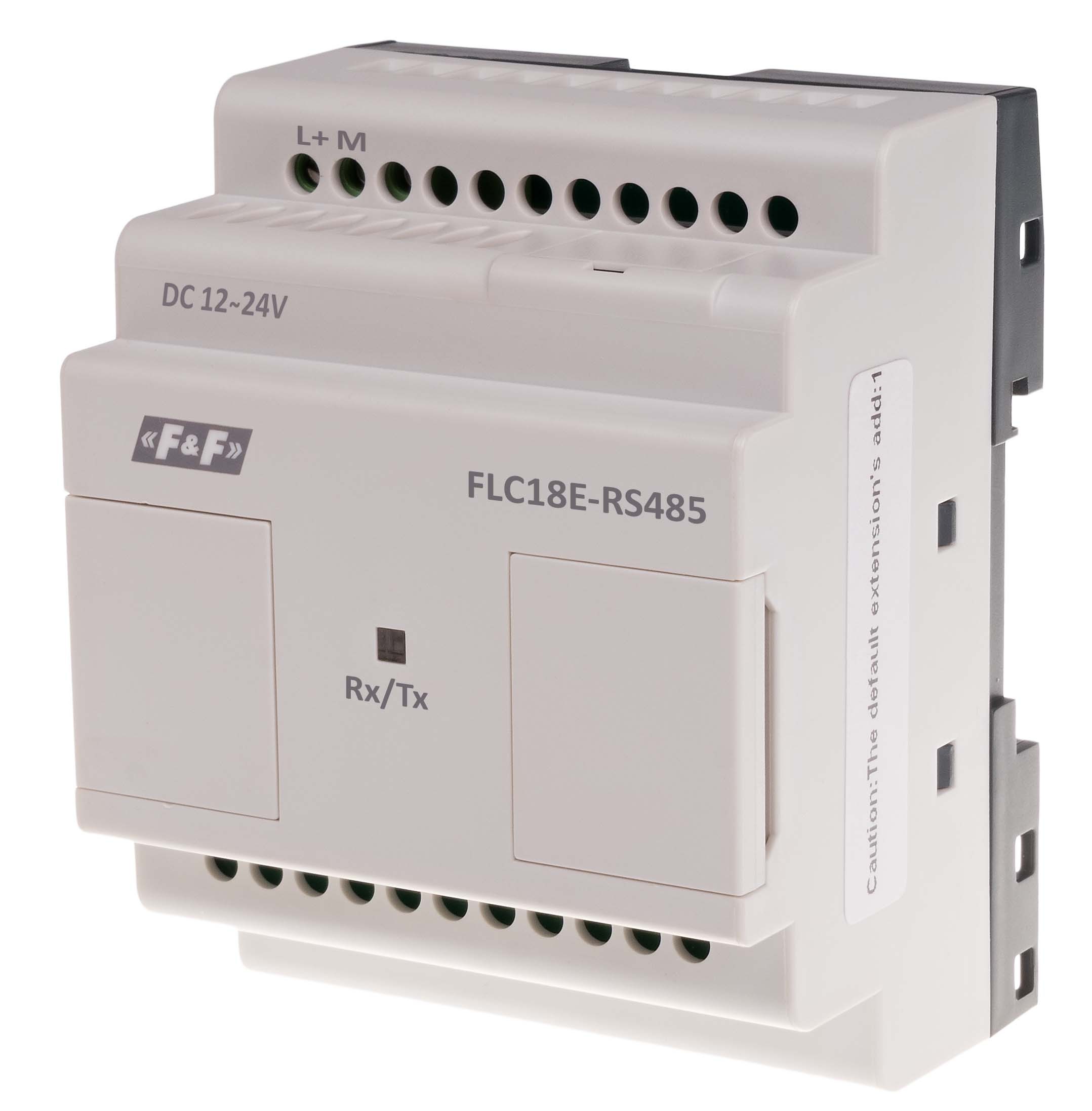

Moduł rozszerzeń z interfejsem komunikacyjnym RS-485
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | FLC |
| Symbol | FLC18E-RS485 |
| GTIN(EAN) | 5908312599845 |
| Price unit | piece |
| Catalog price | 442,80 zł (360,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja F&F - zegar astronomiczny
Za zakup asortymentu F&F na kwotę 2500 zł., zegar astronomiczny w cenie 3,69 zł.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Description:
Typ moduł rozszerzeń Napięcie zasilania 12÷24 V DC Typ wyjścia komunikacyjnego RS-485 Separacja wyjścia galwaniczna Konfiguracja parametrów komunikacji TAK Tryb pracy master/slave Waga 300 g Współpraca z modułami CPU FLC18-12DI-6R Przyłącze zaciski śrubowe 1,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 1,8 W Temperatura pracy -20÷55°C Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 300 g |
| ETIM class: | PLC communication module |
| Number of HW-interfaces RS-485: | 1 |
| Supporting protocol for other bus systems: | yes |
| With potential separation: | yes |
| Depth: | 65 mm |
| With optical interface: | no |
| Supporting protocol for EtherCAT: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| Redundancy: | no |
| Suitable for safety functions: | no |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Certified for UL hazardous location class I: | no |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | no |
| Certified for UL hazardous location group A (acetylene): | no |
| Certified for UL hazardous location group B (hydrogen): | no |
| Certified for UL hazardous location group C (ethylene): | no |
| Certified for UL hazardous location group D (propane): | no |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
