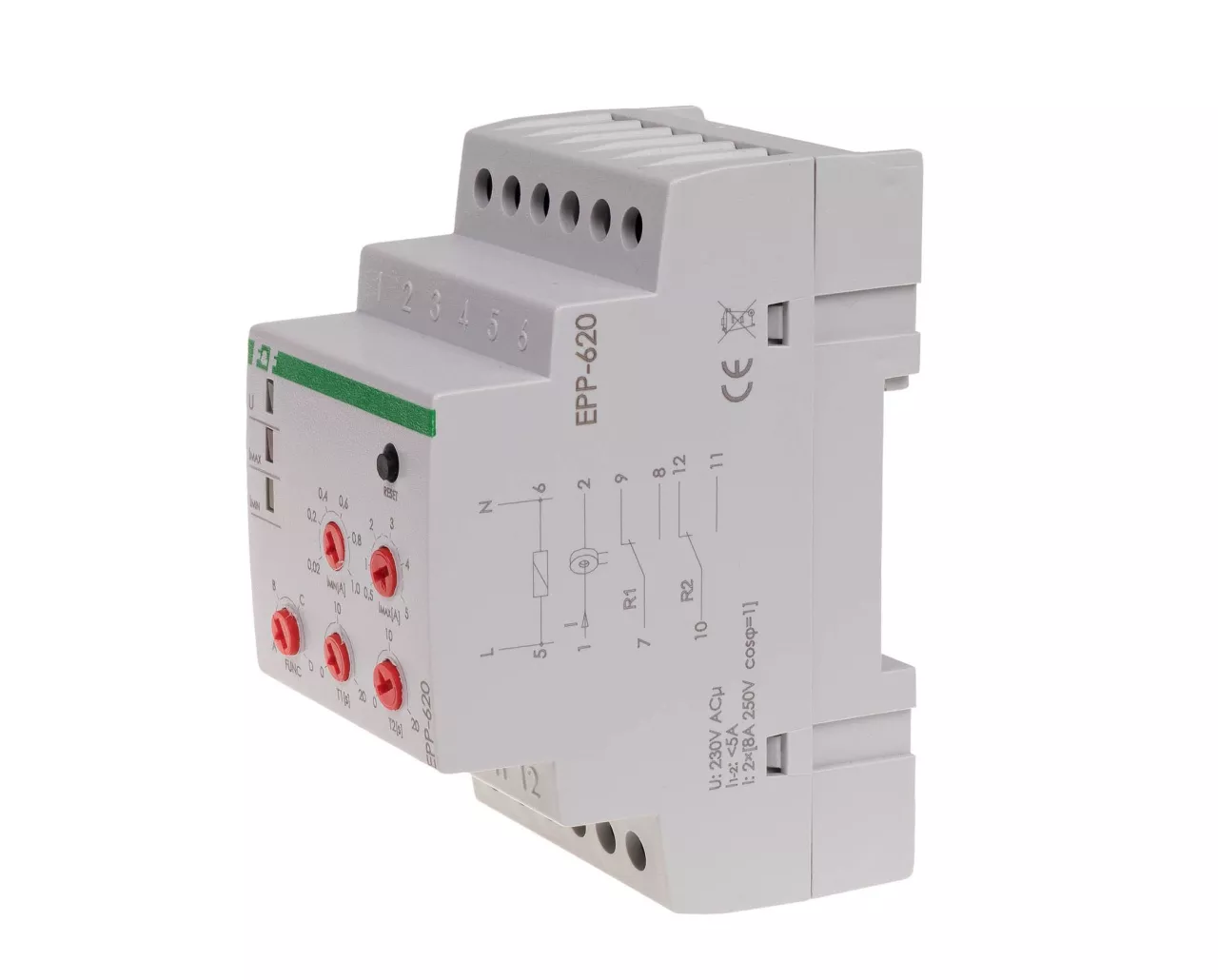

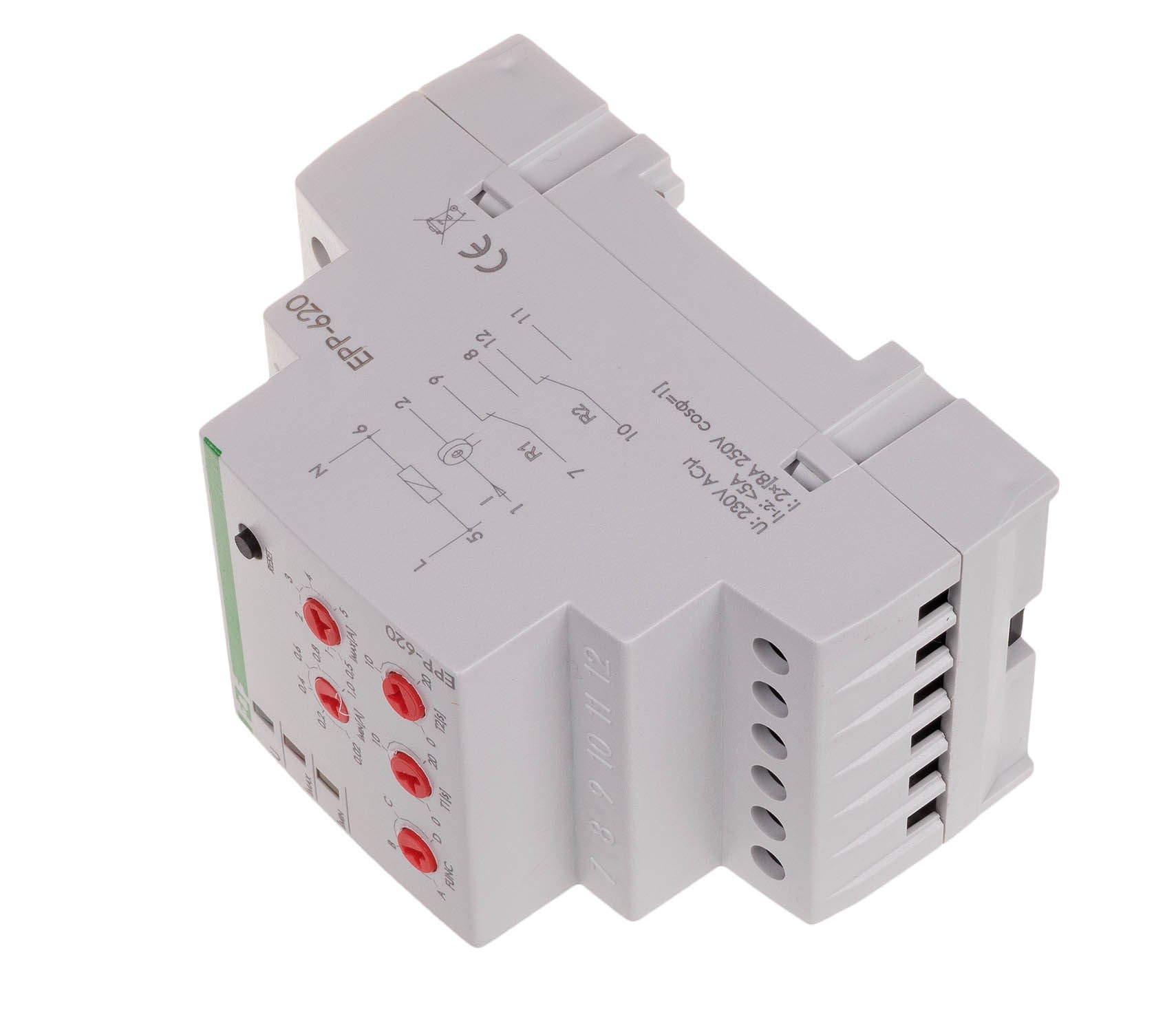

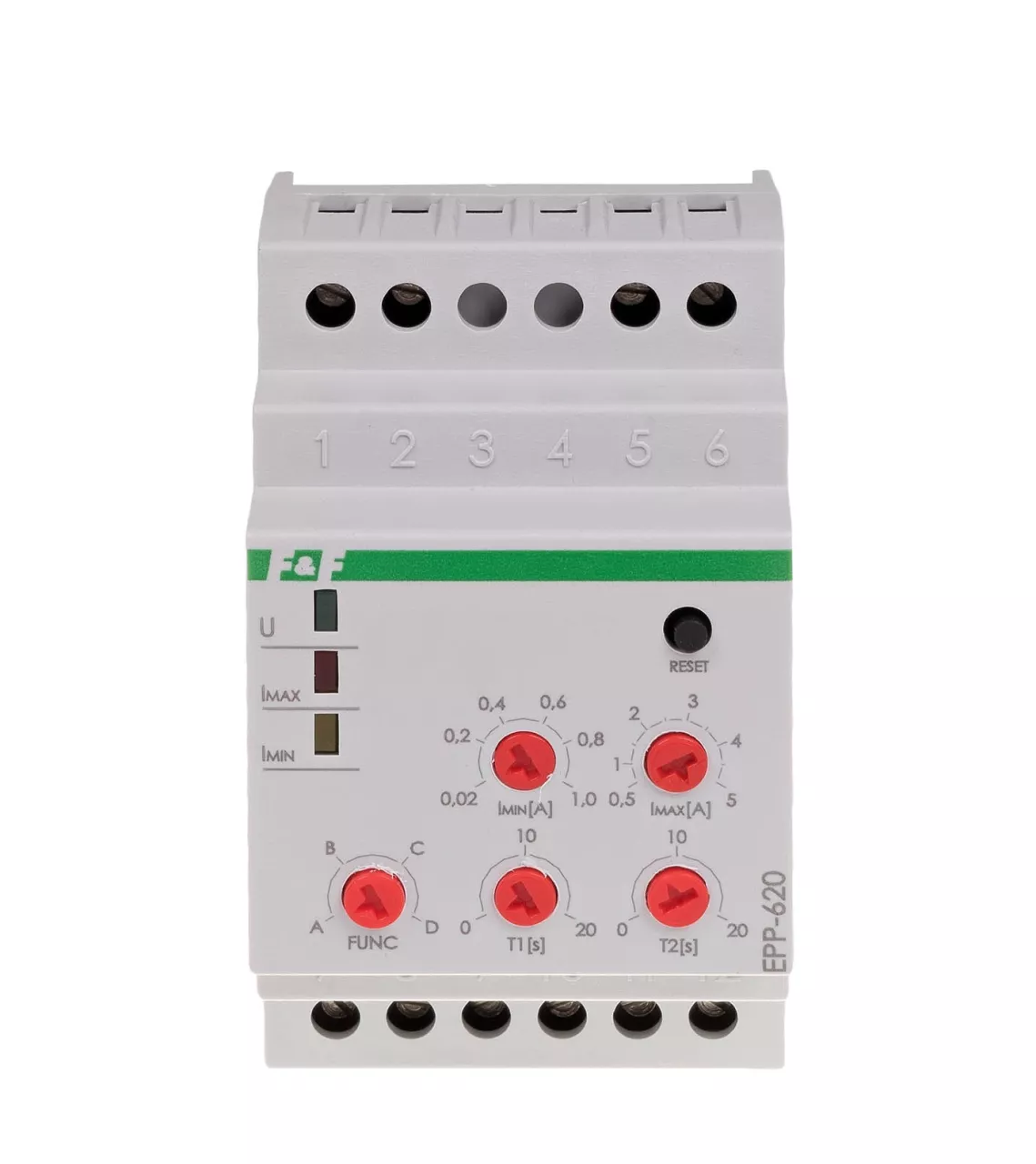

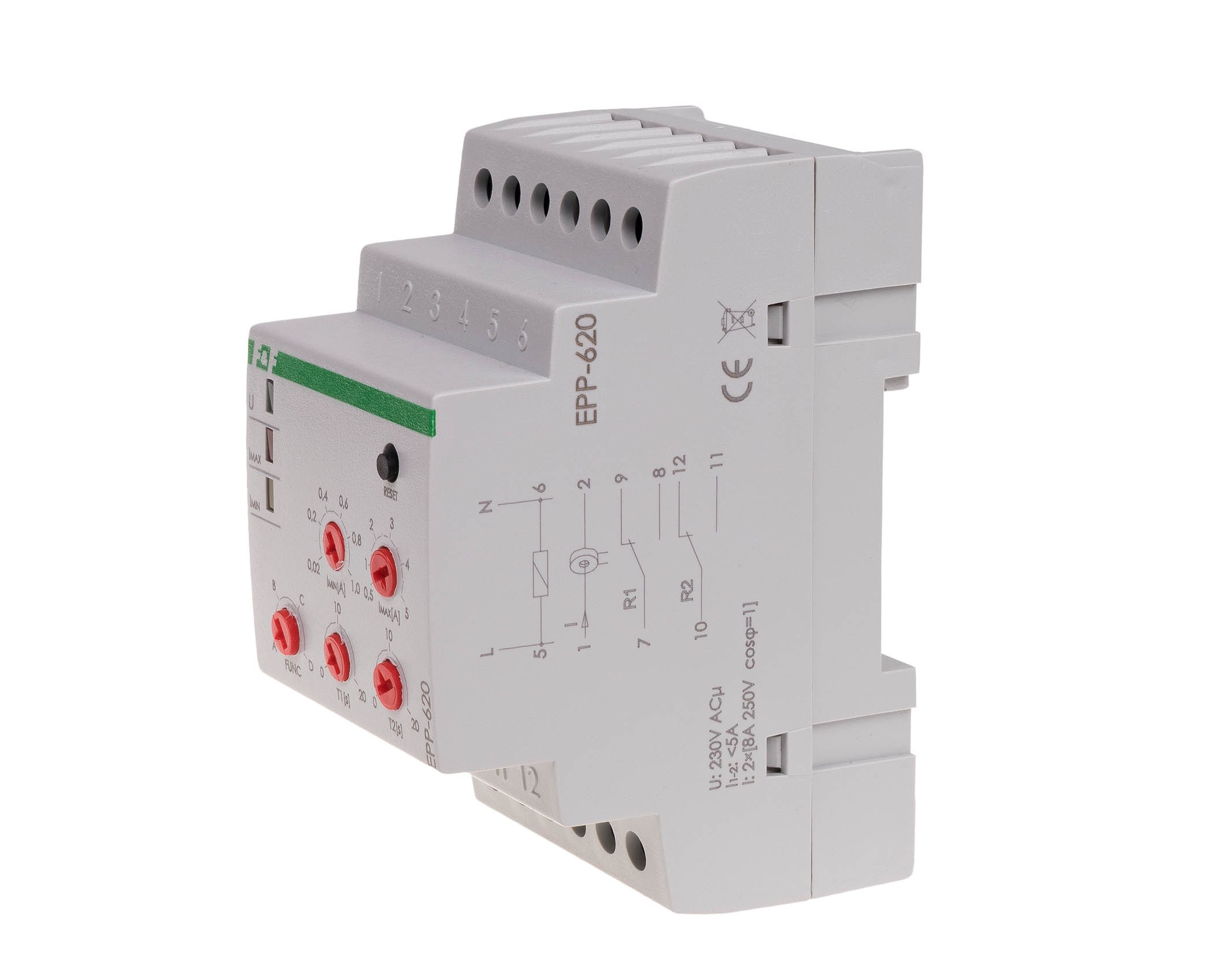

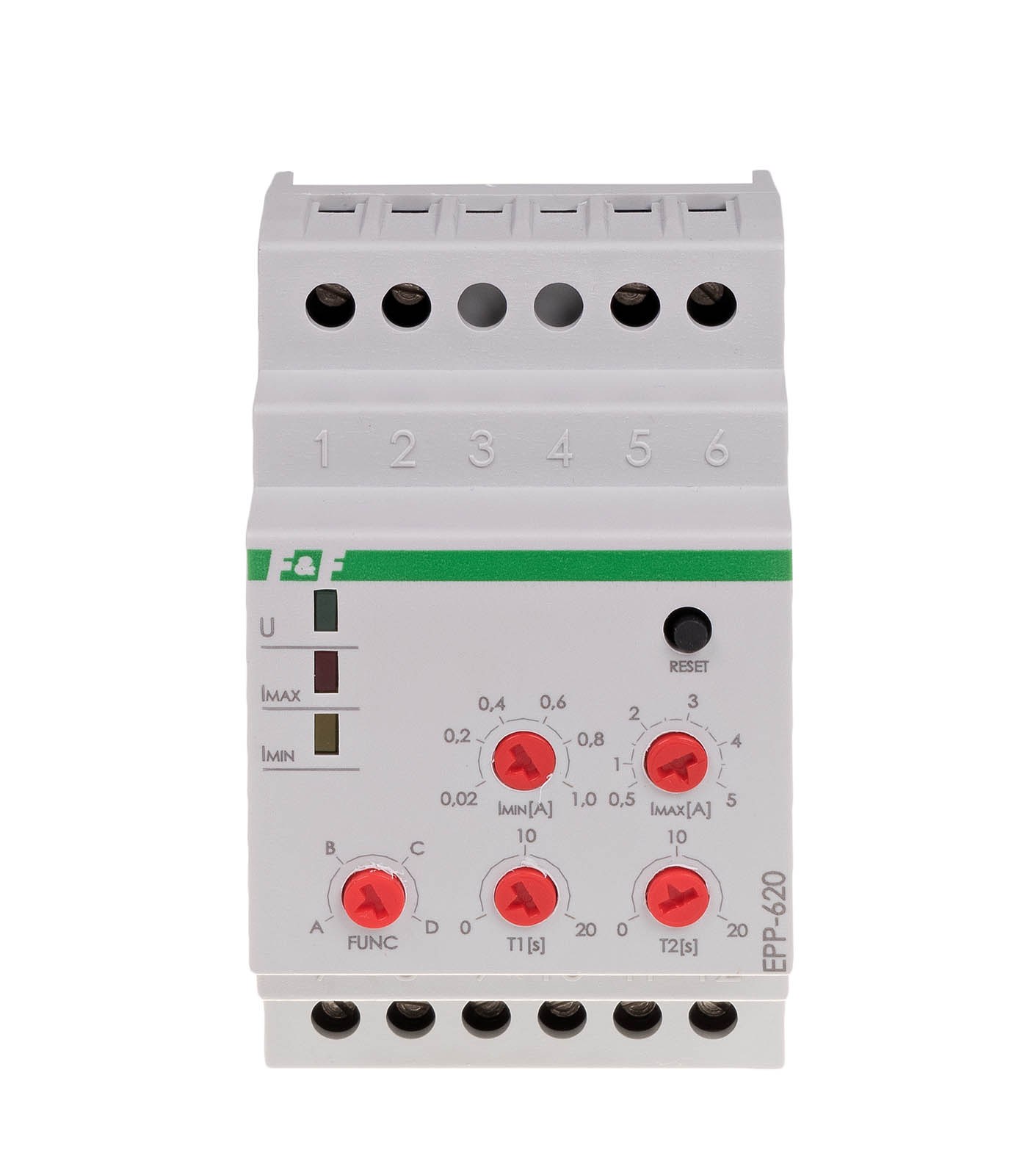

Przekaźnik prądowy cztero-funkcyjny, styki:2x2P, Imax=16A, montaż na szyne, 3 moduły
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | EPP |
| Symbol | EPP-620 |
| GTIN(EAN) | 5908312594260 |
| Price unit | piece |
| Catalog price | 490,77 zł (399,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Element wykonawczy 2 × przekaźnik Maksymalny prąd obciążenia R1 i R2 2 × 8 A Konfiguracja styków 2 × NO/NC Separacja styku TAK Czas powrotu 0,5 s Histereza powrotu zasilania 10% Maksymalny prąd wejścia pomiarowego 1-2 5 A Prąd przełączenia - regulowany Imin 0,02÷1 A Prąd przełączenia - regulowany Imax 0,5÷5 A Czas zadziałania T1 i T2 - regulowany 0÷20 s Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 0,4 W Temperatura pracy -25 ÷ 50 °C Wymiary 3 moduły (52,5 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 160 g |
| ETIM class: | Current monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Current measuring range: | 0 - 5 A |
| Single-phase under current possible: | no |
| Three-phase under current possible: | yes |
| Single-phase overcurrent possible: | no |
| Three-phase overcurrent possible: | yes |
| Single-phase hysteresis possible: | no |
| Three-phase hysteresis possible: | yes |
| Contains function DC-voltage under current: | no |
| Contains function DC-voltage overcurrent: | no |
| Function DC-current hysteresis: | no |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Width: | 52.5 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
