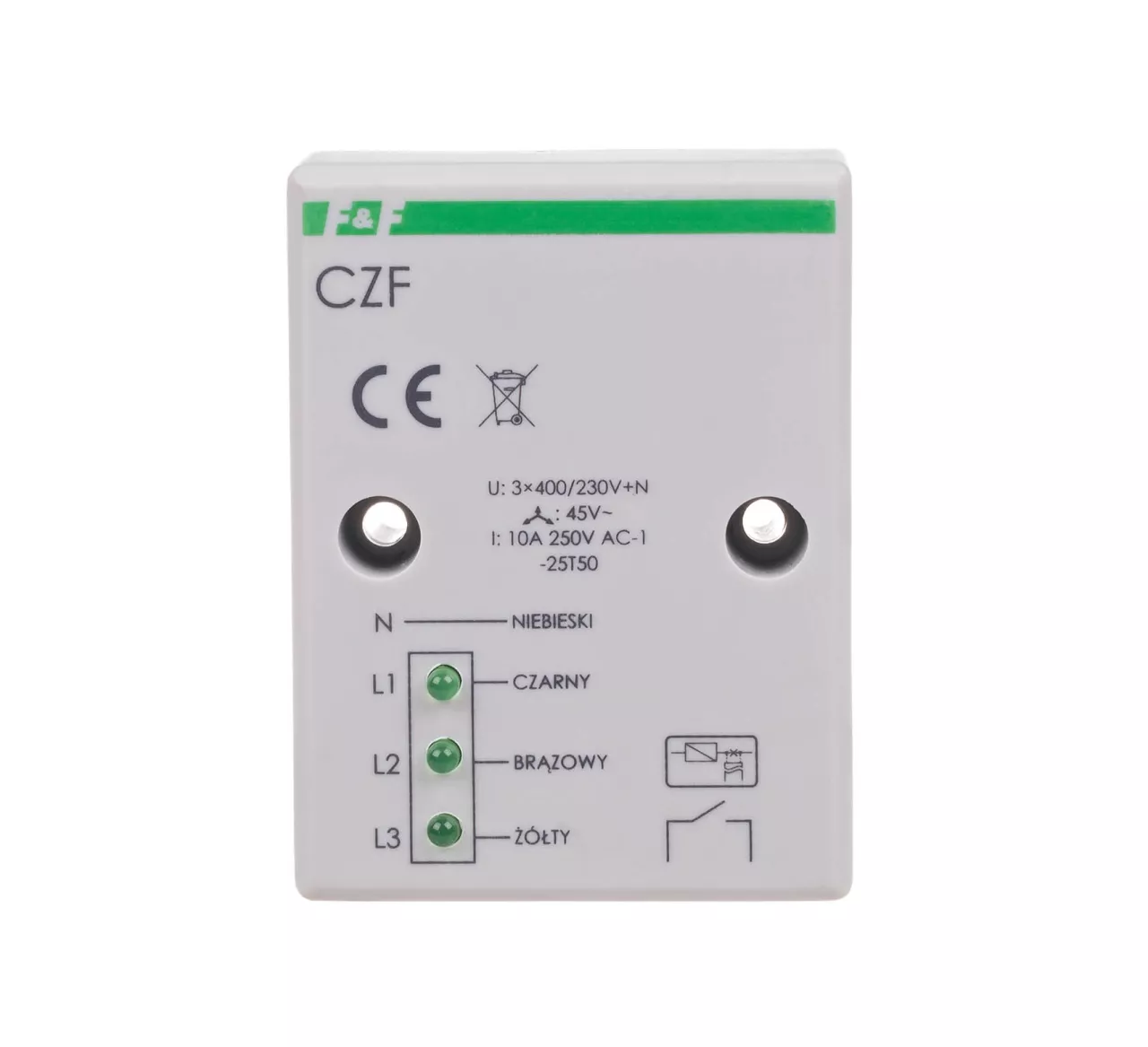

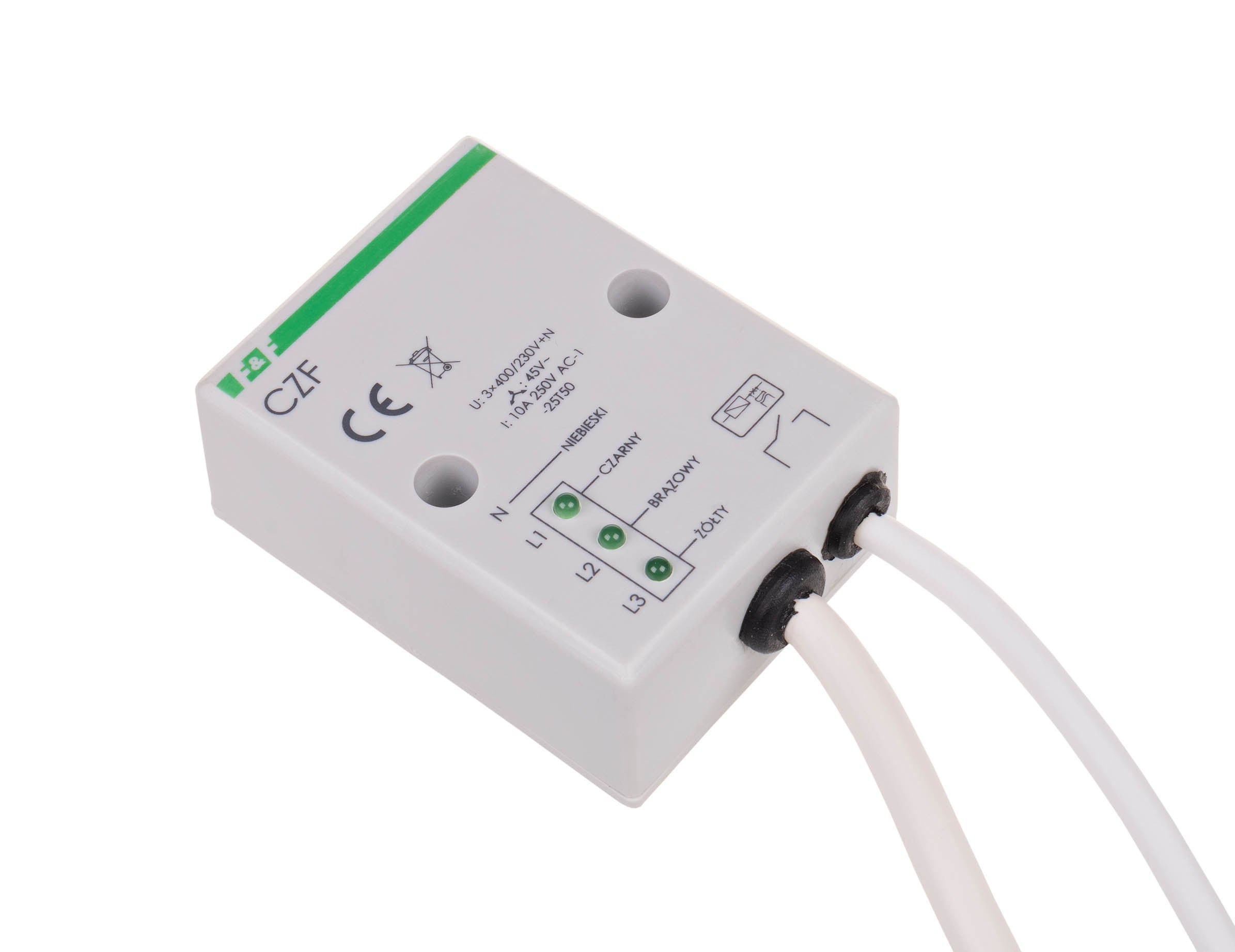

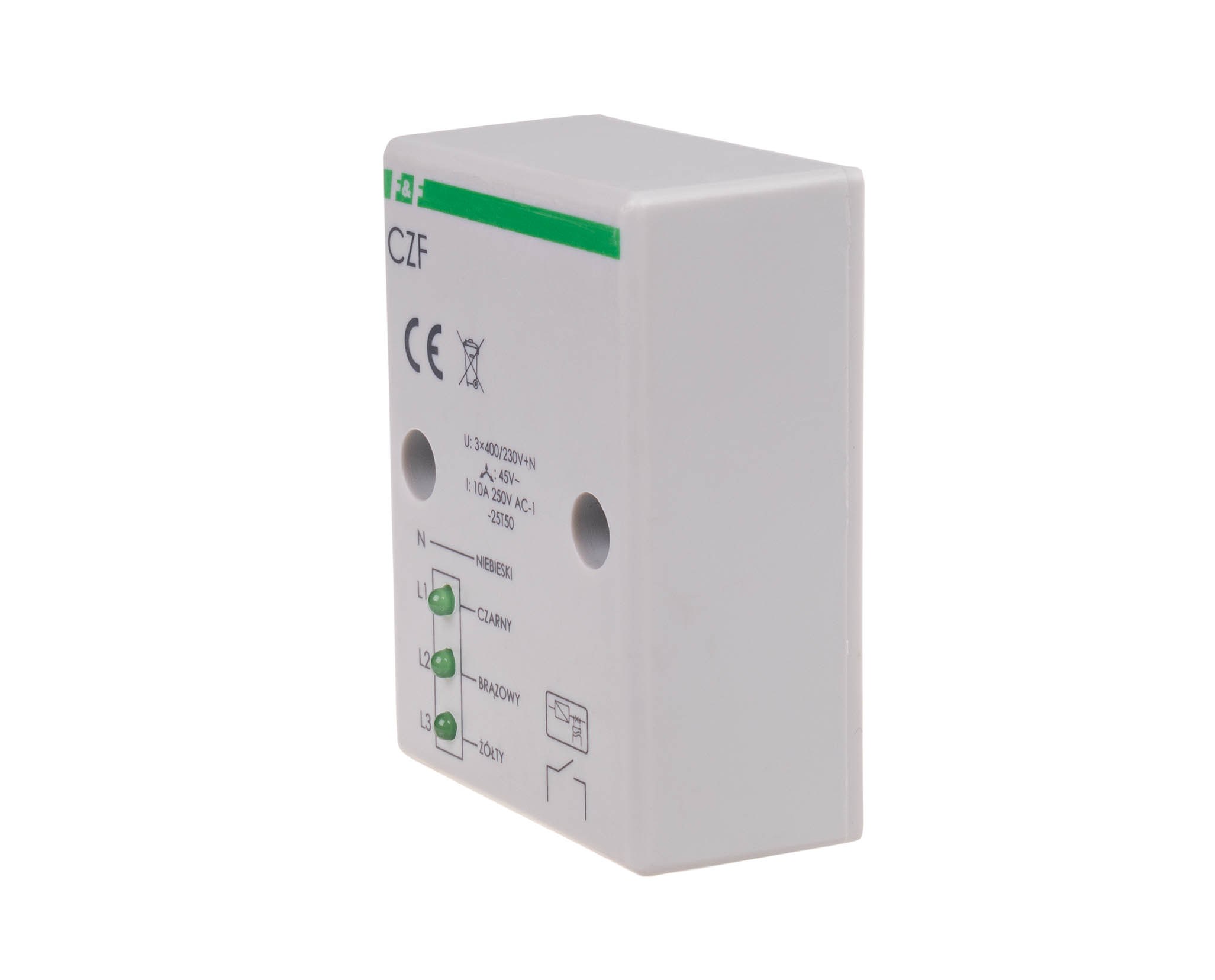

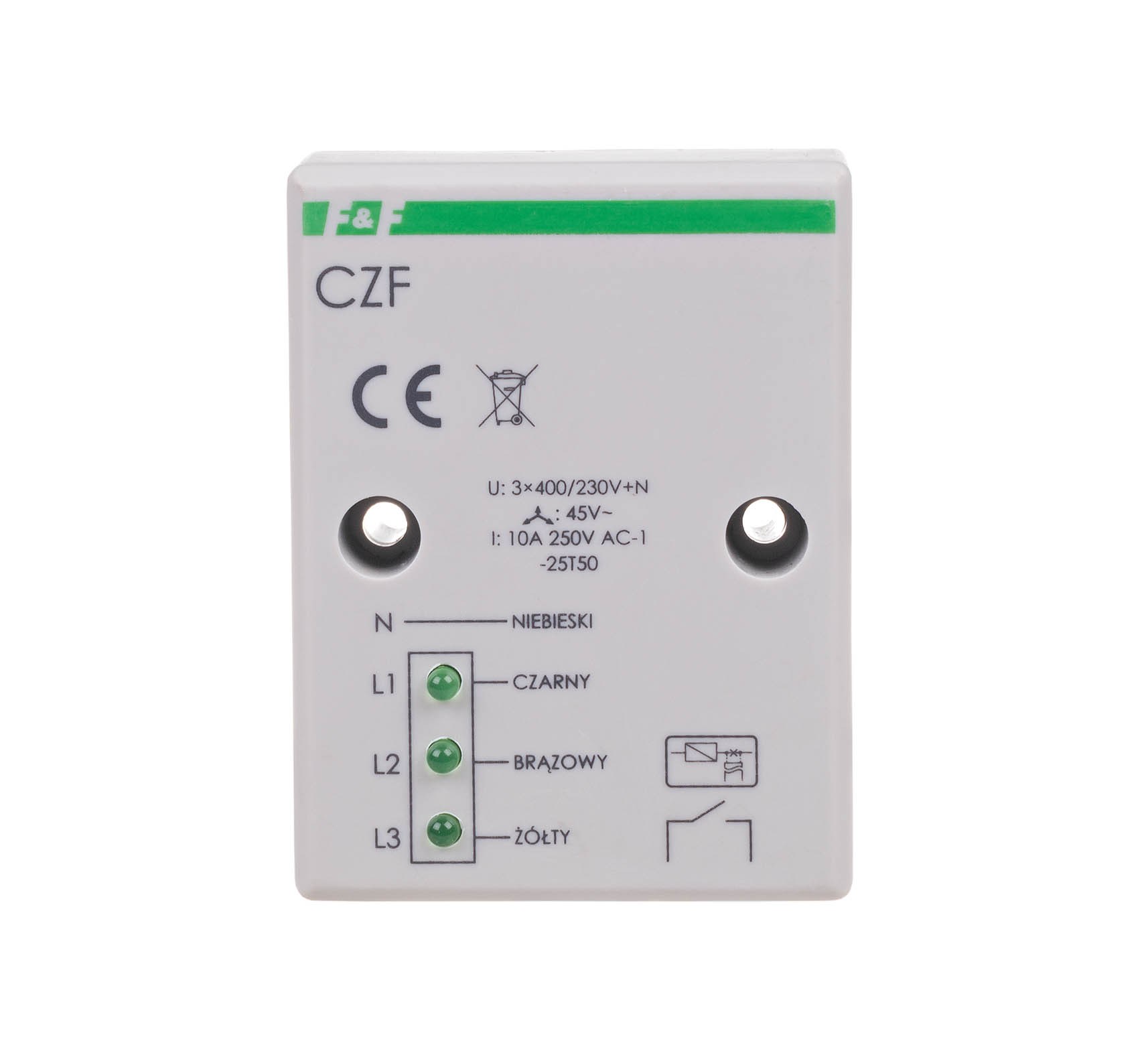

Czujnik zaniku i asymetrii faz, montaz natablicowy
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | CZF |
| Symbol | CZF |
| GTIN(EAN) | 5908312593010 |
| Price unit | piece |
| Catalog price | 103,32 zł (84,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 3 × 400 V + N Współpraca z agregatami prądotwórczymi NIE Kontrola zaniku / asymetrii faz TAK Kontrola kolejności faz NIE Kontrola styków stycznika NIE Element wykonawczy przekaźnik Maksymalny prąd obciążenia 10 A Konfiguracja styków 1 × NO Separacja styku TAK Asymetria napięciowa zadziałania 45 V Histereza napięciowa 5 V Opóźnienie wyłączenia 4 s Kontrola zasilania 3 × LED zielona Przyłącze OMY 4×1 mm²; 2×0,75 mm², l: 0,5 m Pobór mocy 1,6 W Temperatura pracy -25÷40°C Wymiary 51×67×26 mm (± 1 mm) Montaż natynkowy Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 100 g |
| ETIM class: | Phase monitoring relay |
| Type of electric connection: | Soldering flag connection |
| With detachable clamps: | no |
| Phase sequence monitoring: | no |
| Phase failure detection: | yes |
| Function under voltage detection: | no |
| Function over voltage detection: | no |
| Phase imbalance monitoring: | yes |
| Voltage measuring range: | 140 - 270 V |
| Min. adjustable off-delay time: | 4 s |
| Max. permitted off-delay time: | 4 s |
| Number of contacts as normally open contact: | 1 |
| Height: | 90 mm |
| Depth: | 65 mm |
