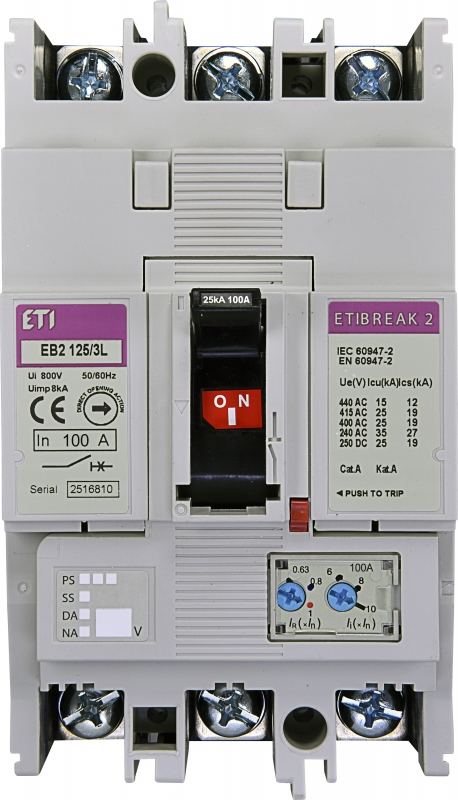

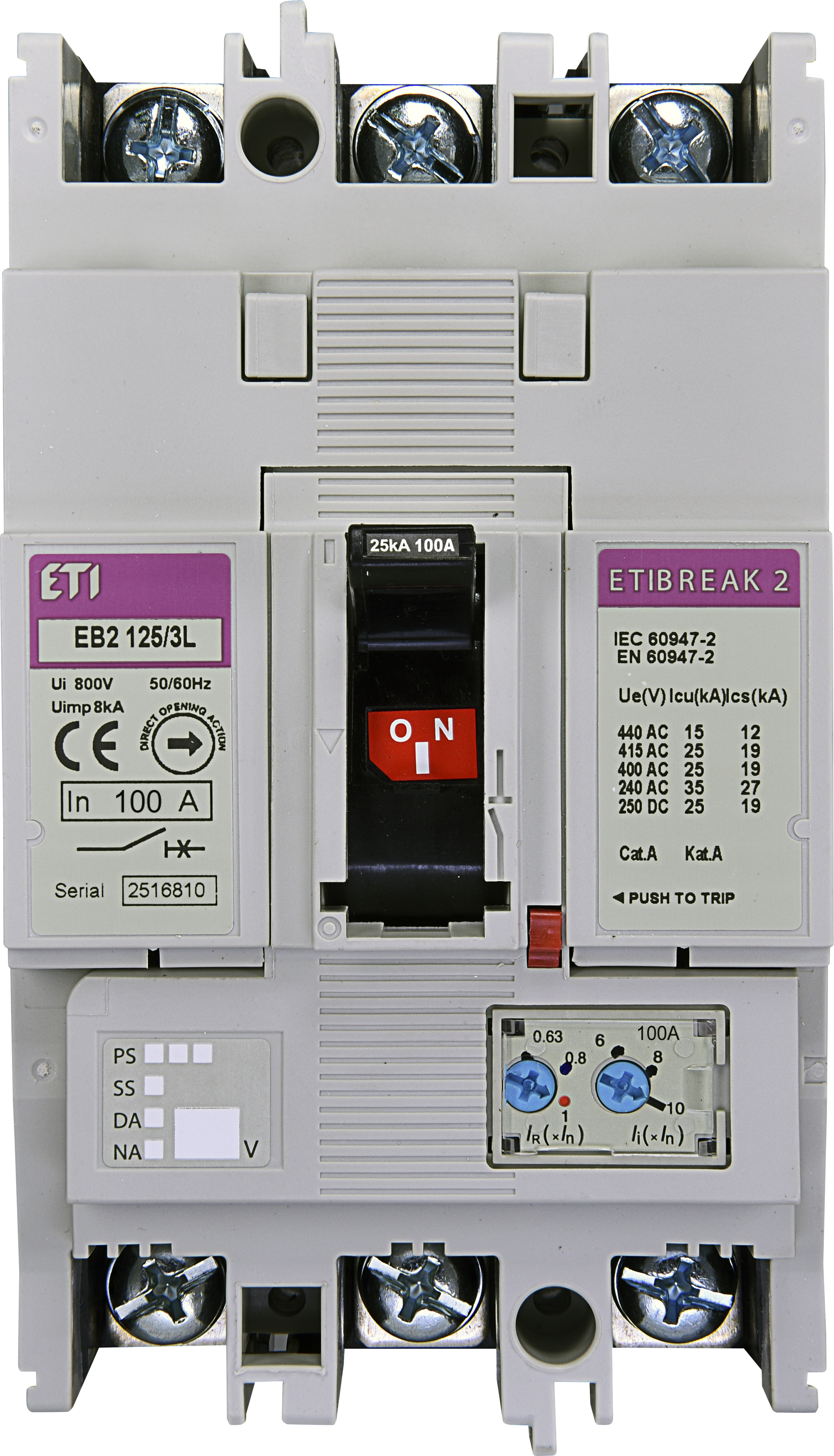

EB2 125/3L 100A 3p Wyłącznik mocy 3P, 25kA, wyzw. TM
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ETIBREAK |
| Symbol | 004671025 |
| GTIN(EAN) | 3838895409519 |
| Price unit | piece |
| Catalog price | 1 355,57 zł (1 102,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,1 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 100 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 25 kA |
| Overload release current setting: | 63 - 100 A |
| Adjustment range undelayed short-circuit release: | 600 - 1200 A |
| Type of electrical connection of main circuit: | Screw connection |
| Device construction: | Built-in device fixed built-in technique |
| With switched-off indicator: | yes |
| Number of poles: | 3 |
| Type of control element: | Rocker lever |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP20 |
