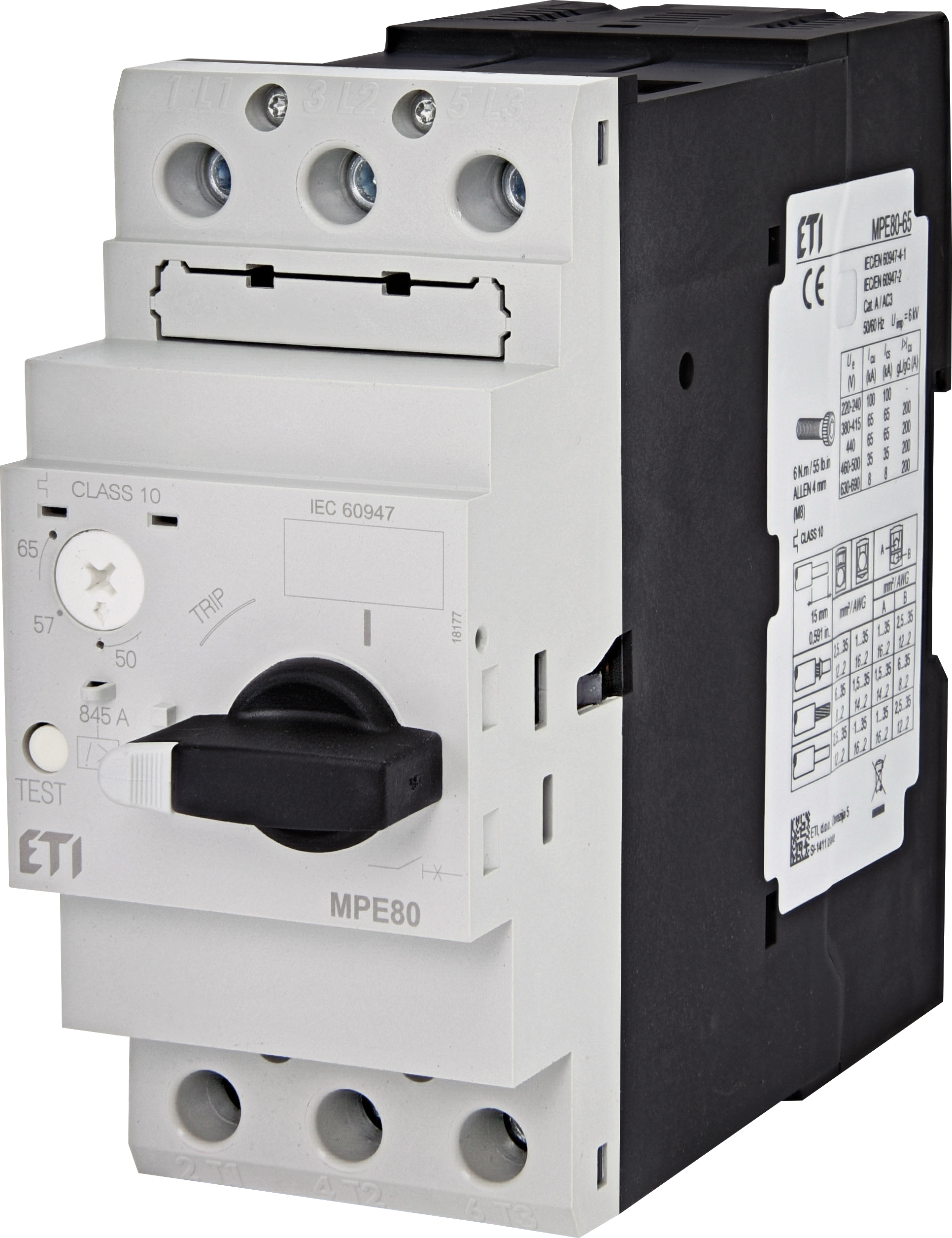

MPE80-65 Wyłącznik silnikowy
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ETICON |
Symbol | 004648017 |
GTIN(EAN) | 7899058055765 |
Price unit | piece |
Catalog price | 1 253,92 zł (1 019,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 1,1 kg |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 50 - 65 A |
Adjustment range undelayed short-circuit release: | 845 - 845 A |
With thermal overload protection: | yes |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 400 - 690 V |
Rated permanent current Iu: | 65 A |
Rated operation power at AC-3, 230 V: | 18.5 kW |
Rated operation power at AC-3, 400 V: | 30 kW |
Type of electrical connection of main circuit: | Frame clamp |
Type of control element: | Turn button |
Device construction: | Built-in device fixed built-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 65 kA |
Degree of protection (IP): | IP20 |
Height: | 125 mm |
Width: | 54 mm |
Depth: | 157 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
